Camshaft Timing Chain Guide Rail
The difference is of importance when removing the camshafts. The version of the guide rail for the camshaft timing chain is visible after removal of the upper timing chain cover.

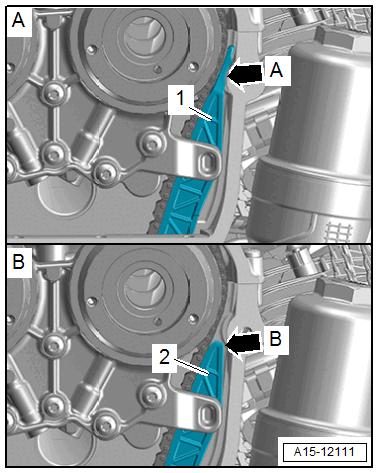

A - Version 1: Guide Rail -1- Long Version -arrow A- for 2.0L from Engine Build Date 07/30/2013
- Camshafts, Removing and Installing. Refer to CAMSHAFT, REMOVING AND INSTALLING, ENGINE WITH GUIDE RAIL VERSION 1 .
B - Version 2: Guide Rail -2- Short Version -arrow B- for 2.0L through Engine Build Date 07/30/2013
- Camshafts, Removing and Installing. Refer to CAMSHAFT, REMOVING AND INSTALLING, ENGINE WITH GUIDE RAIL VERSION 2 .
