Overview - Bevel Box

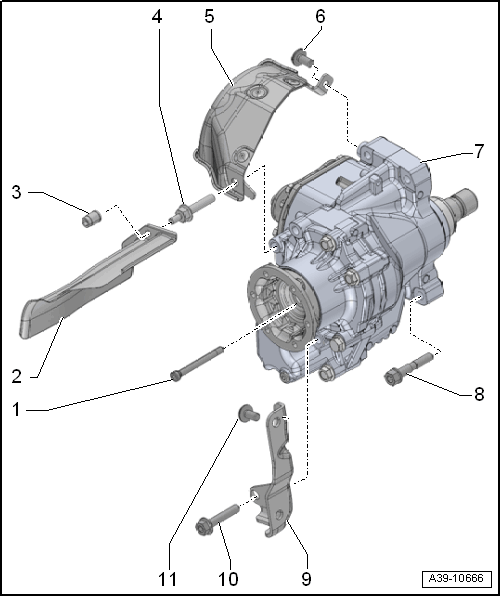

Fig 1: Exploded View Of Bevel Box

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 25 Nm
Heat Shield
- For drive axle
Nut
- 20 Nm
Bolt
- 40 Nm
Heat Shield
- For driveshaft
Bolt
- 20 Nm
Bevel Box
- Removing. Refer to BEVEL BOX, REMOVING .
- Installing. Refer to BEVEL BOX, INSTALLING .
Bolt
- Replace after removing
- Tightening Specification. Refer to BEVEL BOX, TIGHTENING SPECIFICATION .
Bracket
- Different versions
Bolt
- Tightening specification and sequence. Refer to BEVEL BOX, TIGHTENING SPECIFICATION .
Bolt
- Tightening specification and sequence. Refer to BEVEL BOX, TIGHTENING SPECIFICATION .
