Overview - Shift Mechanism

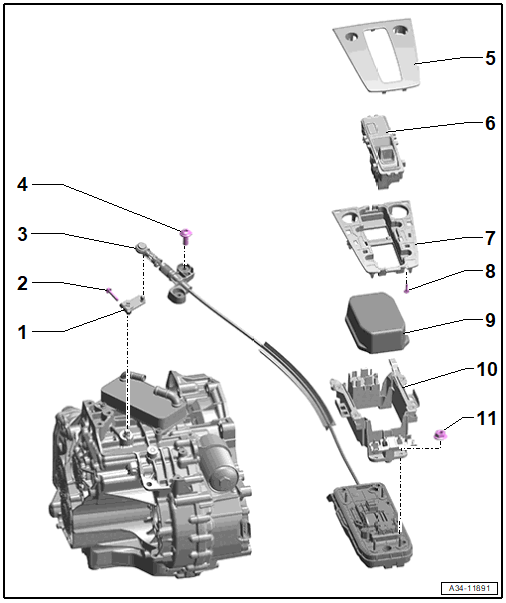

Fig 1: Exploded View Of Shift Mechanism

Courtesy of AUDI OF AMERICA, LLC

Shift Lever
Bolt
- 15 Nm
Shift Mechanism
- With integrated components
  - Parking Lock Actuator -V682-
  - Parking Lock Solenoid -N486-
  - Selector Lever Cable
- The components cannot be replaced separately
- Checking. Refer to SHIFT MECHANISM, CHECKING .
- Removing and Installing. Refer to SHIFT MECHANISM, REMOVING AND INSTALLING .
Bolt
- 20 Nm
- Quantity: 2
Cover
- For center console insert
Controls for Shift Mechanism
- With integrated components
  - Selector Lever -E313-
  - Selector Lever Sensor System Control Module -J587-
  - Parking Lock Button -E816-
  - Selector Lever Transmission Range Display -Y5-
- The components cannot be replaced separately
- Removing and Installing. Refer to SELECTOR MECHANISM CONTROL, REMOVING AND INSTALLING .
Center Console Insert
- Removing and Installing. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .
Bolt
- Tightening Specification. Refer to OVERVIEW - CENTER CONSOLE .
- Quantity: 4
Noise Insulation
Mount
Nut
- 8 Nm
- Quantity: 4
