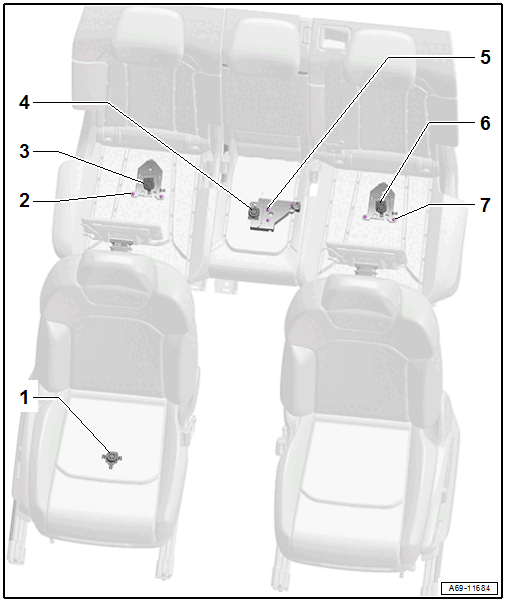

Overview - Passenger Occupant Detection Sensor

The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.

Courtesy of AUDI

1. Passenger Seat Occupant Detection Sensor -G128-
   • Market-Specific Version
   • Refer to Passenger Seat Occupant Detection Sensor -G128-, REMOVING AND INSTALLING
2. Clip
   • Quantity: 2
3. Passenger Side Rear Seat Occupant Detection Sensor - G178-
   • Refer to Driver Side Rear Seat Occupant Detection Sensor -G177- /Passenger Side Rear Seat Occupant Detection Sensor -G178-, REMOVING AND INSTALLING
4. Passenger Occupant Detection System Pressure Sensor -G452-
   • Refer to Passenger Occupant Detection System Pressure Sensor -G452-, REMOVING AND INSTALLING
5. Bolt
   • 1.2 Nm
   • Quantity: 3
6. Driver Side Rear Seat Occupant Detection Sensor - G177-
   • Refer to Driver Side Rear Seat Occupant Detection Sensor -G177- /Passenger Side Rear Seat Occupant Detection Sensor -G178-, REMOVING AND INSTALLING
7. Clip
   • Quantity: 2
