Passenger Occupant Detection System Control Module -J706-, REMOVING AND INSTALLING: Removing

-- Follow the additional safety precautions for working on seat occupant detection system for front passenger airbag deactivation, market-specific version. Refer to ADDITIONAL SAFETY PRECAUTIONS FOR WORKING ON SEAT OCCUPANT DETECTION SYSTEM FOR FRONT PASSENGER AIRBAG DEACTIVATION, MARKET-SPECIFIC VERSION .

-- Follow the procedure after a collision for seat occupant detection system for front passenger airbag deactivation, market-specific version. Refer to PROCEDURE AFTER A COLLISION FOR SEAT OCCUPANT DETECTION SYSTEM FOR FRONT PASSENGER AIRBAG DEACTIVATION, MARKET-SPECIFIC VERSION .

-- Move the front passenger seat into its highest position.

Version 1:

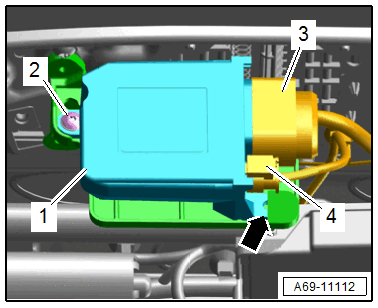

Fig 1: Control Module Tightening Sequence on Bracket - Standard Seat

Courtesy of AUDI

-- Remove the bolt -2-.

-- Disengage the control module -1- from the bracket -arrow-.

-- Release and then disconnect the connectors -3 and 4- from the control module.

Version 2:

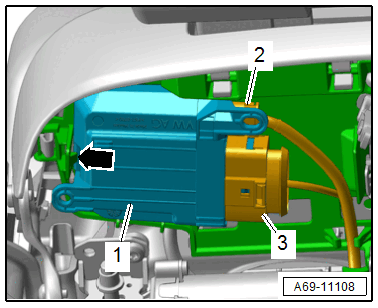

Fig 2: Passenger Occupant Detection System Control Module -J706-

Courtesy of AUDI

-- Release the control module from the catches -arrow-.

-- Disengage the control module -1- from the bracket.

-- Release and then disconnect the connectors -2 and 3- from the control module.
