MECHATRONIC, Removing And Installing: Installing

Install in reverse order of removal. At the same time note the following:

Replace the bolts for the DSG Transmission Mechatronic -J743- after removing.
If the Dual-Clutch Transmission Mechatronic -J743- is being replaced, the O-ring is included in the replacement part delivery package.

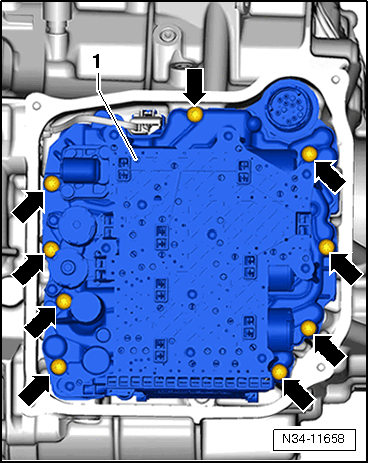

-- Carefully place the Mechatronic -1- in the transmission.

Courtesy of AUDI OF AMERICA, LLC

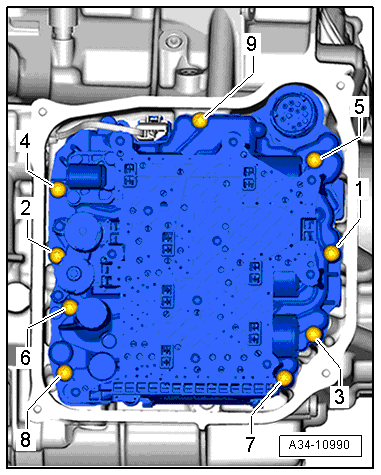

-- Tighten the bolts -arrows- for the Dual-Clutch Transmission Mechatronic -J743-. Refer to Figure.

-- Install the transmission fluid pan. Refer to TRANSMISSION FLUID PAN, REMOVING AND INSTALLING .

Basic Setting, Performing:

-- Connect the Vehicle Diagnostic Tester and select Individual test .

-- Follow the instructions on the display.
