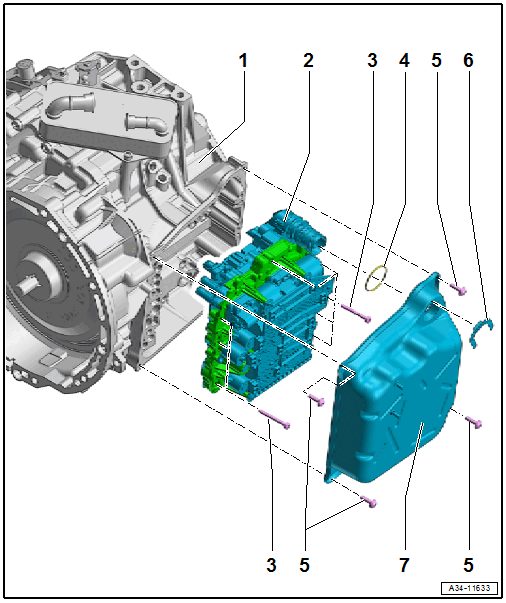

Overview - MECHATRONIC
- Transmission
- Dual-Clutch Transmission Mechatronic -J743-
- Removing and Installing. Refer to MECHATRONIC, REMOVING AND INSTALLING .
- Bolt
- Replace after removing
- Tightening specification and sequence. Refer to Fig 2.
- Seal
- Replace
- Bolt
- Replace after removing
- 8 Nm +60°
- Clip
- Replace
- Transmission Fluid Pan
- Replace after removing
- Removing and Installing. Refer to TRANSMISSION FLUID PAN, REMOVING AND INSTALLING .
Dual-Clutch Transmission MechatronicJ743 - Tightening specification and sequence
- Replace bolts that were tightened with an additional turn after removing them.
-- Tighten the bolts in the steps in the sequence shown:
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1. | -1 to 9- | Install all the way by hand |
| 2. | -1 to 9- | 8 Nm |
| 3. | -1 to 9- | 45° additional turn |
