Ignition Coils, Removing And Installing: Installing
Install in the reverse order of removal while noting the following:

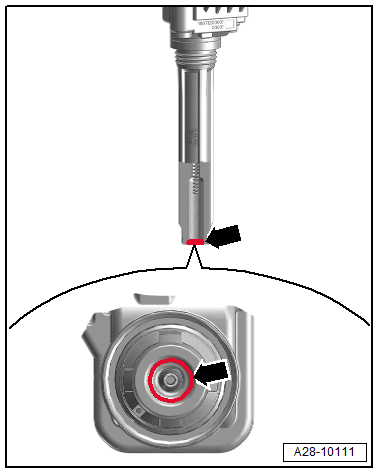

-- Apply a thin bead of silicone paste around the seal hose for the ignition coil with power output stage -arrow-.
CAUTION:
Risk of destroying the ignition coil by using an unsuitable lubricant.
- Only use the specified silicone paste.
-- Push the ignition coils evenly onto the spark plugs using by hand (do not use any impact tools).
-- Install the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
