Ignition Coils, Removing And Installing: Removing

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

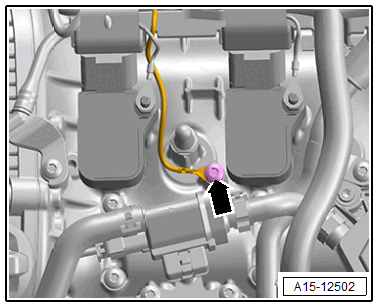

-- If installed, remove the bolt -arrow- and free up the ground wire.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -2-, free up the ground wire -1- and remove the double bolt -3- from underneath.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors and remove from the ignition coils at the same time -arrows-.

-- Insert the Puller:T10530  in the ignition coil opening -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Turn the knurled nut -2- clockwise -arrow- until the puller is clamped.

-- Remove the ignition coil carefully vertically -arrow- using the Puller:T10530  .

Courtesy of AUDI OF AMERICA, LLC
