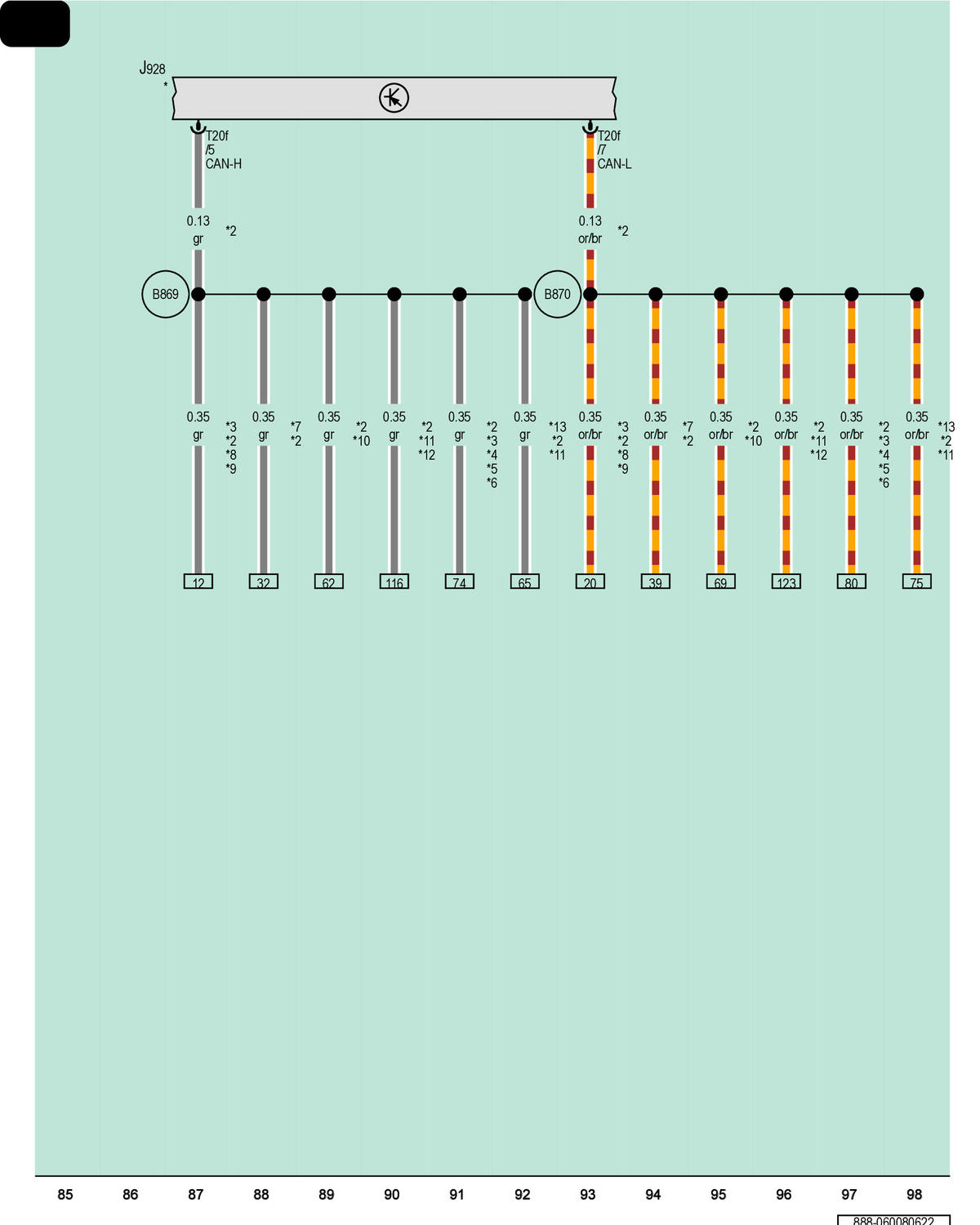

Peripheral Camera Control Module

Courtesy of AUDI OF AMERICA, LLC

J928

Peripheral Camera Control Module

T20f

20-Pin Connector, Black

B869

Driver Assistance Systems CAN Bus High Connection 3 (in Main Wiring Harness)

B870

Driver Assistance Systems CAN Bus Low Connection 3 (in Main Wiring Harness)

*

Refer to Applicable Peripheral Camera Wiring Diagram

*2

For Vehicles with Peripheral Camera

*3

For Vehicles Without Driver Assistance Systems Front Camera

*4

For Vehicles Without Control Module for Adaptive Cruise Control

*5

For Vehicles Without Headlamp Range Control Module

*6

CAN Bus Connection Wire

*7

For Vehicles with Driver Assistance Systems Front Camera

*8

For Vehicles with Headlamp Range Control Module

*9

For Vehicles with Control Module for Adaptive Cruise Control

*10

For Vehicles Without Lane Change Assistance Control Module

*11

For Vehicles with Lane Change Assistance Control Module

*12

Sportback

*13

Sedan
