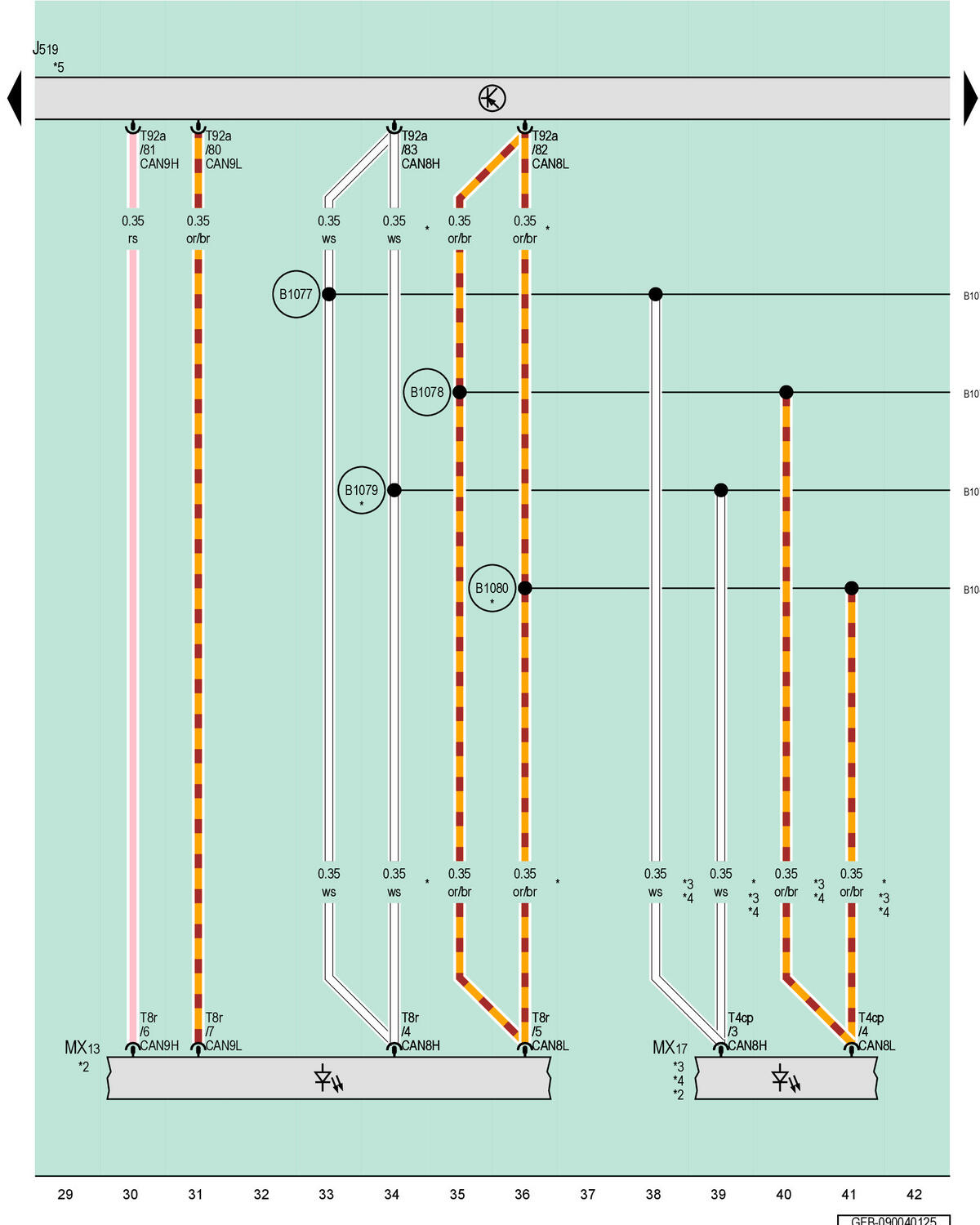

Vehicle Electrical System Control Module, Center Tail Lamp, Rear Emblem Contour Illumination Module

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

MX13

Center Tail Lamp

MX17

Rear Emblem Contour Illumination Module

T4cp

4-Pin Connector, Black

T8r

8-Pin Connector, Black

T92a

92-Pin Connector, Black

B1077

CAN Bus 8, J519 High Connection 1 (in Main Wiring Harness)

B1078

CAN Bus 8, J519 Low Connection 1 (in Main Wiring Harness)

B1079

CAN Bus 8, J519 High Connection 2 (in Main Wiring Harness)

B1080

CAN Bus 8, J519 Low Connection 2 (in Main Wiring Harness)

*

Sportback

*2

Refer to Applicable Tail Lamp Wiring Diagram

*3

For Vehicles with China Equipment

*4

From February 2025

*5

Refer to Applicable Convenience System Wiring Diagram
