Overview - Assembly Mounts

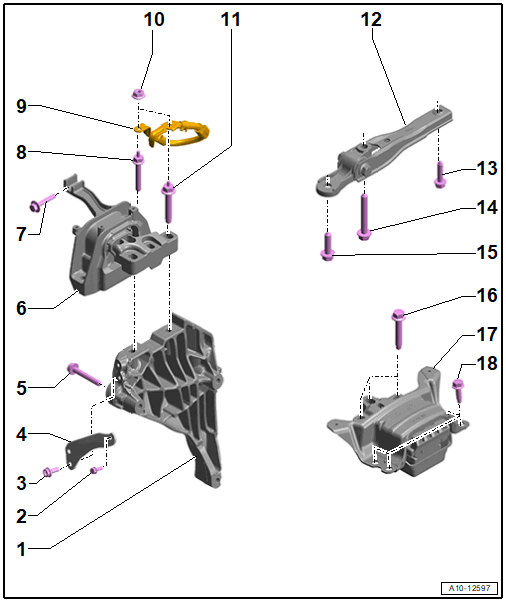

Fig 1: Exploded View Of Engine Assembly Mounts

Courtesy of AUDI OF AMERICA, LLC

1. Engine Support
   • Removing and Installing. Refer to ENGINE SUPPORT, REMOVING AND INSTALLING .
2. Bolt
   • Replace after removing
   • 10 Nm +90°
3. Bolt
   • 23 Nm
4. Bracket
5. Bolt
   • Replace after removing
   • Tightening specification and sequence. Refer to Fig 2.
6. Engine Mount
   • With support arm
   • Removing and Installing. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .
7. Bolt
   • Replace after removing
   • 20 Nm +90°
8. Bolt
   • Replace after removing
   • 40 Nm +90°
9. Ground Wire
   • Only Audi A3 from MY 2021
10. Nut
    • For  . Ground Wire
    • 9 Nm
11. Bolt
    • Replace after removing
    • 60 Nm +90°
12. Pendulum Support
    • There are different versions. Refer to the Electronic Parts Information (ETKA) for the allocation.
    • Removing and Installing. Refer to PENDULUM SUPPORT, REMOVING AND INSTALLING .
13. Bolt
    • Replace after removing
    • Tightening specification and sequence. Refer to Fig 3.
14. Bolt
    • Replace after removing
    • Tightening specification and sequence. Refer to Fig 3.
15. Bolt
    • Replace after removing
    • Tightening specification and sequence. Refer to Fig 3.
16. Bolt
    • Tightening specification. Refer to OVERVIEW - ASSEMBLY MOUNTS .
17. Transmission Mount
    • With support arm
    • Removing and Installing. Refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
18. Bolt
    • Tightening specification. Refer to OVERVIEW - ASSEMBLY MOUNTS .

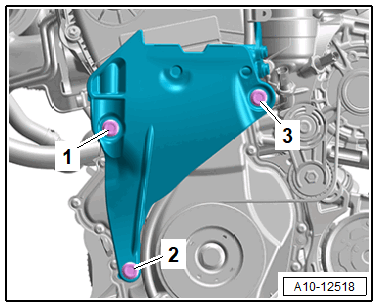

Fig 2: Engine Support - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

• Replace bolts that were tightened with an additional turn after removing them.

-- Tighten the bolts in the steps in the sequence shown:

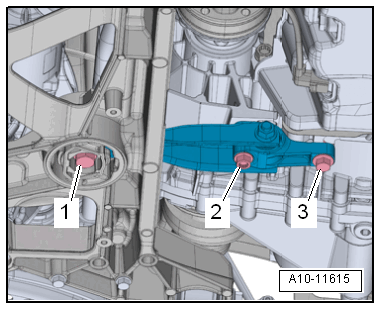

Fig 3: Engine Support Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

• Replace bolts that were tightened with an additional turn after removing them.

-- Tighten the bolts in the steps in the sequence shown (example illustration above):
