Engine And Transmission, Separating: Procedure
- Engine/transmission assembly removed and mounted on Engine/Gearbox Jack - Engine Support :T10359A .
-- Remove the starter. Refer to STARTER, REMOVING AND INSTALLING .
-- Remove the left air duct pipe. Refer to LEFT AIR DUCT PIPE, REMOVING AND INSTALLING .

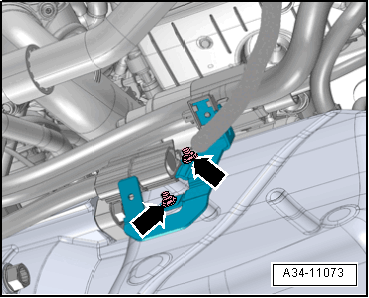

-- Remove the nut -arrows- and remove the front bracket from the transmission fluid pan.
AWD Vehicle:

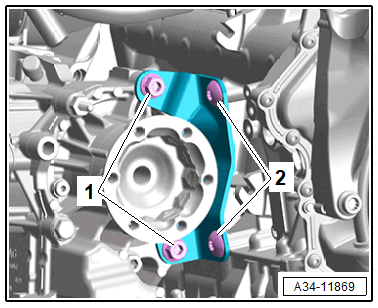

-- Remove the bolts -1 and 2- and remove the bevel box bracket.
Continuation for All Vehicles:
-- Place a cloth underneath to catch leaking coolant.

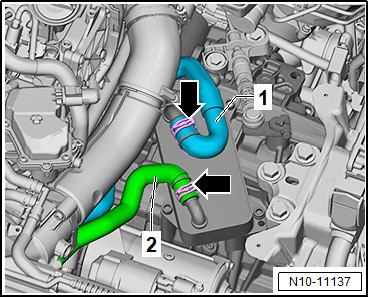

-- Loosen the hose clamps -arrows-, remove the coolant hoses -1 and 2- from the transmission fluid cooler (example illustration above).
-- Seal the open lines and connections with clean plugs from the Engine Bung Set :VAS 6122 .

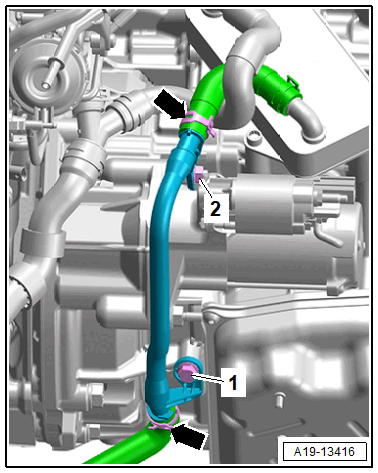

-- Remove the bolt -1- as well as the nut -2- and press the coolant pipe to the side.
-- Remove the eye from the Lifting Device :T40123B -1- and insert it into the lower threaded hole for the starter bolt all the way.
-- Secure the Lifting Eyebolt :3368 -6- with two lock nuts -7- on the transmission housing hole.

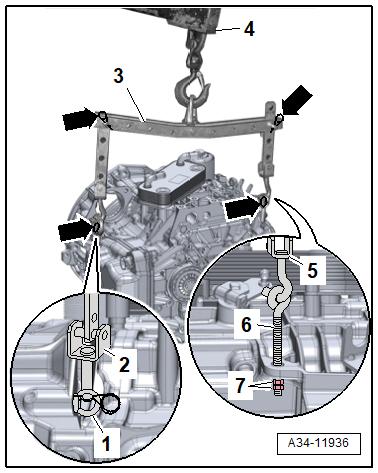

-- Engage the Engine Sling :2024A -3- as shown on the both eyes and on the Workshop Crane :VAS 6100 -4-.
- To be aligned to the center of gravity of the transmission, the mounting hook rail with holes must be inserted as shown.
There is a risk of injury from the lifted motor falling.
The possibility for parts of the body to be pinched or crushed increases.
- Secure the mounting hooks and pins on the lifting tackle with a securing pin.
-- Insert the securing pins -arrows- to secure the mounting hooks and alignment pins.

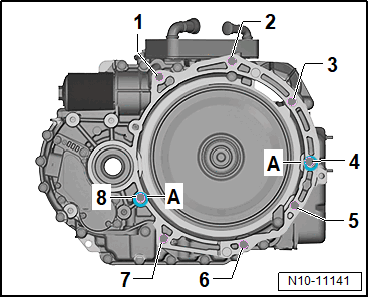

-- Remove the bolts -1 to 8- for the transmission/engine connection.
-- Remove the transmission from the engine.
