Engine, Removing, AUDI A3 From My 2021: Procedure

Vehicles with starter generator:

-- De-energize the 48 Volt system and disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

Continuation for All Vehicles:

CAUTION:

The cooling system is under pressure when the engine is warm. There is a risk of scalding due to hot steam and hot coolant.

Scalding the skin and other parts of the body is possible.

- Wear safety gloves.

- Wear protective eyewear.

- Reduce the pressure by covering the coolant expansion tank cap with a cloth and carefully opening it.

-- Open the coolant reservoir cap -arrow-.

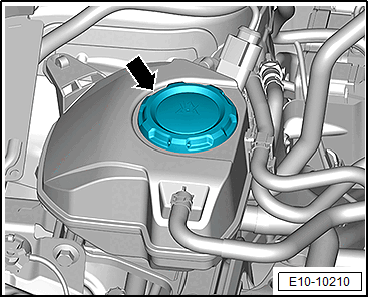

GWWE10-10210Courtesy of AUDI OF AMERICA, LLC

-- Remove the subframe without the steering gear. Refer to SUBFRAME WITHOUT STEERING GEAR, REMOVING AND INSTALLING .

-- Remove the right drive axle heat shield. Refer to DRIVE AXLE HEAT SHIELD, REMOVING AND INSTALLING .

-- Loosen the hose clamps -1 and 2- and remove the air duct hose.

Fig 1: Identifying Clamps
GWWA21-10489Courtesy of AUDI OF AMERICA, LLC

-- Seal the open lines and connections with clean plugs from the Engine Bung Set :VAS 6122  .

-- Disconnect the connector -1-.

Fig 2: Component Location Engine Coolant Temperature Sensor
GWWA19-11609Courtesy of AUDI OF AMERICA, LLC

-- Place the Shop Crane - Drip Tray :VAS 6208  underneath.

-- Lift the clamp -3- and remove the lower right coolant hose from the radiator and drain the coolant.

-- Loosen the coolant hose -arrow-, remove the coolant hose and hold it toward the rear and let the coolant drain.

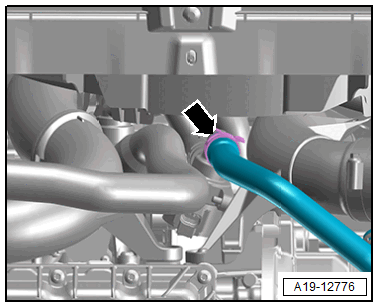

GWWA19-12776Courtesy of AUDI OF AMERICA, LLC

-- Carefully pull the engine cover off the ball pins one after the other -arrows-. Do not pull sharply on the engine cover or only pull it to one side (example illustration below).

GWWA10-12197Courtesy of AUDI OF AMERICA, LLC

Vehicles with Secondary Air System:

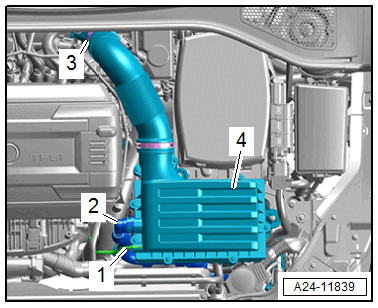

GWWA24-11839Courtesy of AUDI OF AMERICA, LLC

-- Press the release buttons on both sides and remove the secondary air injection suction line -2-.

Continuation for All Vehicles:

-- Remove the vacuum hose -1- at the same time to not damage it.

-- Loosen the hose clamp -3- and remove the air duct hose.

-- Seal the open lines and connections with clean plugs from the Engine Bung Set :VAS 6122  .

-- Disconnect and remove the air filter housing -4- from the battery tray.

-- Free up the coolant hose -2-.

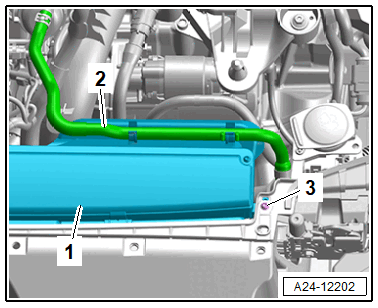

GWWA24-12202Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right bolts -3-.

-- Unclip and remove the air duct -1- from the lock carrier.

-- Release the retainer -arrow A- and open the cap at the Fuse Panel 4 -ST4- -arrow B-.

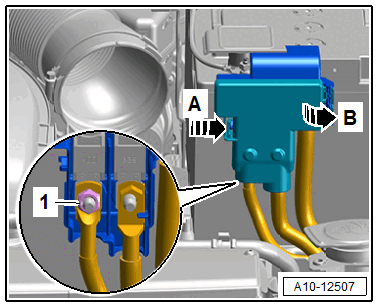

GWWA10-12507Courtesy of AUDI OF AMERICA, LLC

-- Remove the B+ wire -1- and free it up.

-- Remove the battery tray. Refer to BATTERY TRAY, REMOVING AND INSTALLING .

-- Remove the bolt -1-, turn the connection in the -direction of the arrow- and remove.

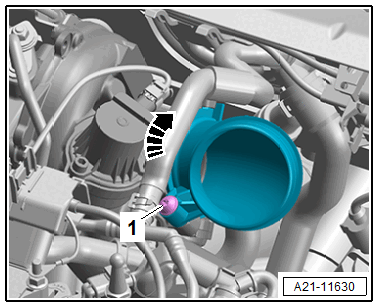

GWWA21-11630Courtesy of AUDI OF AMERICA, LLC

Vehicles without parking/auxiliary heater:

Fig 3: Identifying Heater Core Hoses
GWWN10-10320Courtesy of AUDI OF AMERICA, LLC

-- Place a cloth under the heater core for any leaking coolant.

-- Lift the clips -arrows- and remove the coolant hoses from the heater core for the heater.

-- Hold the coolant hoses downward and allow the coolant to drain.

Vehicles with parking/auxiliary heater:

GWWA19-11712Courtesy of AUDI OF AMERICA, LLC

-- Place a cloth under the heater core for any leaking coolant.

-- Loosen the hose clamp -1-, lift the clamps -arrows- and remove the coolant hoses.

Vehicles with a particulate filter:

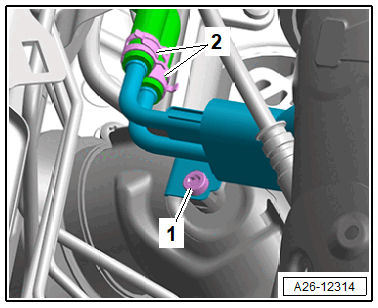

GWWA26-12314Courtesy of AUDI OF AMERICA, LLC

-- Loosen the hose clamps -2- and remove the hoses.

-- Remove the bolt -1- and free up the control lines (example illustration above).

Continuation for All Vehicles:

Fig 4: Exploded View Of Heated Oxygen Sensor
GWWA24-11137Courtesy of AUDI OF AMERICA, LLC

-- Remove the connectors from the bracket and disconnect them, and then free up the wires (example illustration above):

  1. For the Oxygen Sensor 1 after Catalytic Converter -GX7-
  2. For the Oxygen Sensor 1 before Catalytic Converter -GX10-

-- Remove the bolt -1- and free up the control lines.

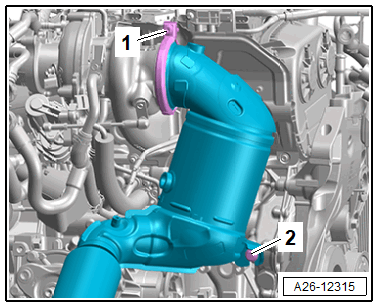

Fig 5: Catalytic Converter - Tightening Specification and Sequence
GWWA26-12315Courtesy of AUDI OF AMERICA, LLC
CAUTION:

Risk of injury due to flying soot particles.

Irritation and injury to skin and eyes possible.

- Wear protective eyewear.

- Wear safety gloves.

-- Remove the bolt -1- and the screw-type clamp.

-- Loosen the bolt -2-, then disengage the catalytic converter upward and tie it up. (Shown with the engine removed.)

-- Place a cloth under the separating point to catch any escaping fuel.

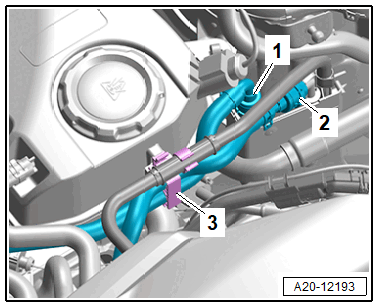

GWWA20-12193Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the fuel hose -1- and remove the hose -2- for the EVAP system. Refer to CONNECTOR COUPLINGS, DISCONNECTING .

-- Open the tab -3- and free up the hoses.

-- Loosen the hose clamps -1 and 2- and remove the coolant hoses.

GWWA19-11700Courtesy of AUDI OF AMERICA, LLC

Vehicles with starter generator:

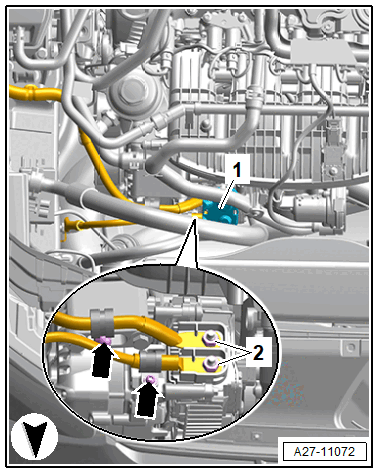

GWWA27-11072Courtesy of AUDI OF AMERICA, LLC

-- Unclip the cover -1-.

-- Remove the bolts -arrows- and nuts -2- and free up the wire.

Continuation for All Vehicles:

Fig 6: Identifying Clamp And Upper Left Coolant Hose
GWWA19-11543Courtesy of AUDI OF AMERICA, LLC

-- Lift the clamp -arrow- and remove the left upper coolant hose from the radiator.

Version 1:

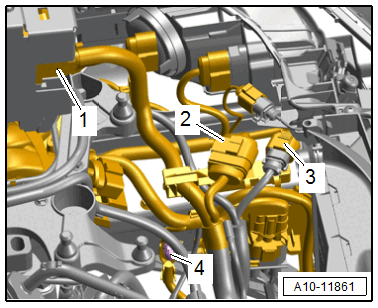

GWWA10-11861Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1- from the Engine/Motor Control Module -J623-. Refer to Engine/Motor Control Module -J623-, REMOVING AND INSTALLING .

-- Remove the connectors -2 and 3- from the bracket and disconnect them and then free up the wires.

Version 2:

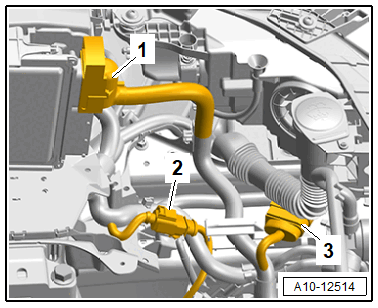

GWWA10-12514Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1- from the Engine/Motor Control Module -J623-. Refer to Engine/Motor Control Module -J623-, REMOVING AND INSTALLING .

-- Remove the connectors -2 and 3- from the bracket and disconnect them and then free up the wires.

Continuation for All Vehicles:

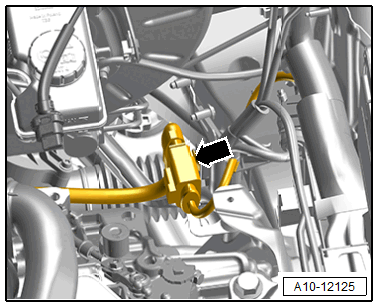

GWWA10-12125Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the wire -arrow- for the Transmission Fluid Auxiliary Hydraulic Pump 1 -V475-.

-- Disconnect the starter connector -arrow-.

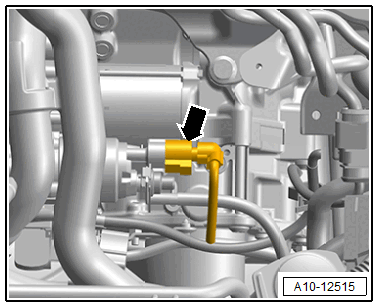

GWWA10-12515Courtesy of AUDI OF AMERICA, LLC

-- Remove the selector lever cable from the transmission and pull it out of the cable bracket. Refer to SHIFT MECHANISM, REMOVING AND INSTALLING .

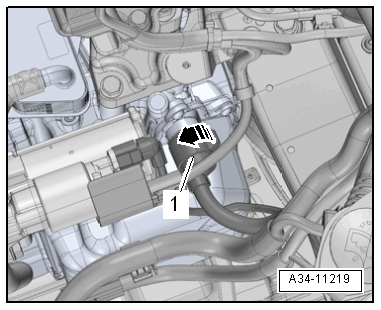

GWWA34-11219Courtesy of AUDI OF AMERICA, LLC
CAUTION:

Risk of destroying due to electrostatic discharge.

- Do not touch the connector terminals by hand.

- Touch a ground (for example the hoist) and discharge the static electricity.

-- Disconnect the connector -1- from the transmission by turning the twist lock counter-clockwise -arrow- and remove.

-- Loosen the bolts -arrows- for the transmission mount -1- approximately two turns.

GWWA10-11862Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -2- and free up the ground wire.

GWWA10-12505Courtesy of AUDI OF AMERICA, LLC

-- Loosen the bolts -arrows- for the engine mount approximately two turns.

GWWN10-10749Courtesy of AUDI OF AMERICA, LLC

-- Loosen the hose clamps -1 and 2- and remove the air duct hose.

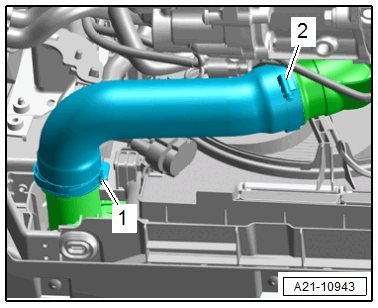

GWWA21-10943Courtesy of AUDI OF AMERICA, LLC

-- Seal the open lines and connections with clean plugs from the Engine Bung Set :VAS 6122  .

Vehicles with Secondary Air System:

Fig 8: Secondary Air Injection Pump Motor -V101- Component Location

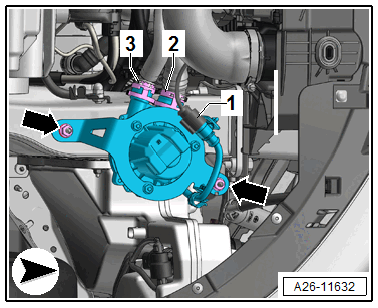

GWWA26-11632Courtesy of AUDI OF AMERICA, LLC

-- Press the release buttons on both sides and remove the pressure line -2-.

-- Press the release buttons on both sides and disconnect and remove the suction line -3- for secondary air injection.

Continuation for All Vehicles:

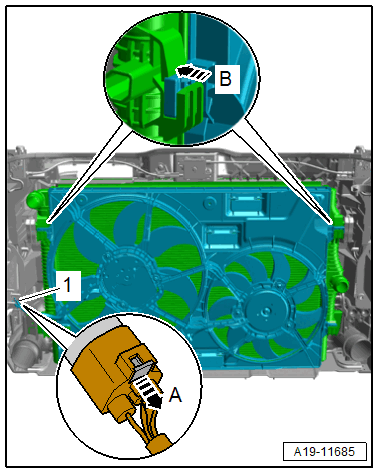

GWWA19-11685Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1- for the radiator fan, to do this push the clip in the -direction of arrow A- and push the retainer downward.

-- Press the left and right fan shroud locking tabs at the same time -arrow B- and disengage and remove the fan shroud upward from the radiator.

-- Loosen the hose clamp -2-.

Fig 9: Disconnect Charge Air Pressure Sensor Connector
GWWA21-10610Courtesy of AUDI OF AMERICA, LLC

-- Free up the coolant hose on the clip -3-.

-- Remove the bolts -arrows-.

-- Disconnect the connector -1- from the Charge Air Pressure Sensor -G31-.

-- Remove the front air duct pipe.

-- Seal the open lines and connections with clean plugs from the Engine Bung Set :VAS 6122  .

CAUTION:

Risk of destroying a used ribbed belt by reversing the running direction.

- Mark the running direction before removal.

- Pay attention to the running direction when reinstalling.

Vehicles with generator:

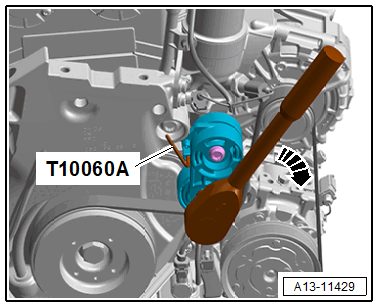

GWWA13-11429Courtesy of AUDI OF AMERICA, LLC

-- Turn the tensioner clockwise -arrow- to release the tension on the ribbed belt.

-- Secure the tensioner using the Locking Pin :T10060 A  .

-- Remove the ribbed belt.

Vehicles with starter generator:

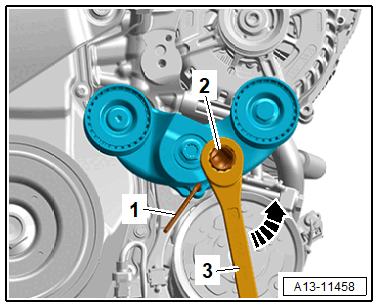

GWWA13-11458Courtesy of AUDI OF AMERICA, LLC

-- To release the tension of the ribbed belt, turn the tensioner using the Wrench - 21mm : T40263  -3- and the Adapter :T40263/1  -2- clockwise -arrow-.

-- Secure the tensioner using the Locking Pin :T10060 A  .

-- Remove the ribbed belt.

Continuation for All Vehicles:

-- Remove the A/C compressor with the refrigerant hoses still connected from the bracket and tie it up on the right side. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING ON BRACKET .

AWD vehicles with particulate filter:

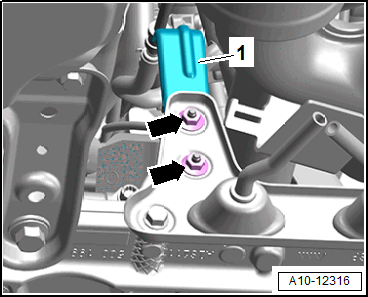

GWWA10-12316Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -arrows-, free up the bracket -1- for the control line and push it to the side.

All AWD Vehicles:

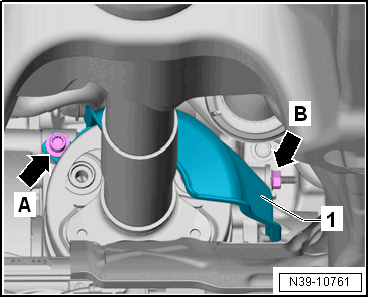

Fig 10: Driveshaft Heat Shield
GWWN39-10761Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -A and B Arrows- and the heat shield -1-.

-- Mark the position of flexible disc and the bevel box flange to each other for reinstallation -arrows-.

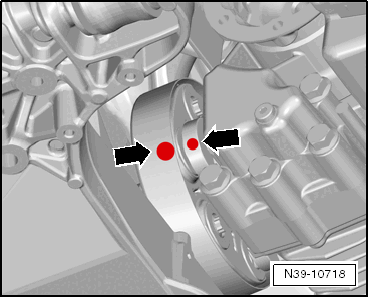

Fig 11: Mark Position Of Driveshaft
GWWN39-10718Courtesy of AUDI OF AMERICA, LLC

-- Using a lever to counterhold the triangular flange, remove the driveshaft from the bevel box -arrows-.

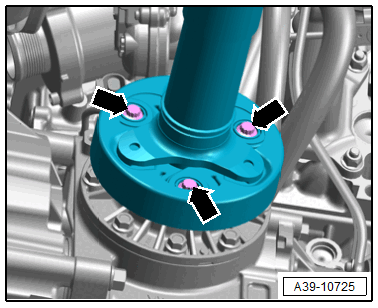

GWWA39-10725Courtesy of AUDI OF AMERICA, LLC

-- Press the engine/transmission assembly slightly forward (toward the front end) and remove the driveshaft from the bevel box.

Fig 12: Identifying Driveshaft Flange Shaft Seal
GWWV39-1817Courtesy of AUDI OF AMERICA, LLC
CAUTION:

Leaks due to a damaged seal.

- Press the driveshaft rearward horizontally.

Continuation for All Vehicles:

-- Remove the left and right drive axles from the transmission/bevel box. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

-- Tie up the drive axles to the rear.

-- Remove bolt -arrow- and push the bracket for the wiring harness to the side.

GWWA10-11632Courtesy of AUDI OF AMERICA, LLC

-- Fasten the Adapter :T10359/3  on the Engine/Gearbox Jack - Engine Support :T10359A  as shown.

Fig 13: Identifying Engine/Gearbox Jack Engine Support
GWWN00-11047Courtesy of AUDI OF AMERICA, LLC

-- Tighten the Engine/Gearbox Jack - Pin :T10359/2  onto the engine bracket with the securing element -A- from the Transmission Support :3282  .

-- Attach the Engine/Gearbox Jack - Engine Support :T10359A  -4- with the bolt -arrow A- to 20 Nm on the cylinder block and secure with the support element -arrow B- from the Transmission Support :3282  .

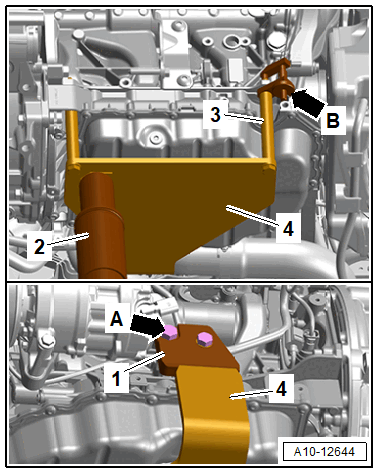

GWWA10-12644Courtesy of AUDI OF AMERICA, LLC

-- Place the Engine and Gearbox Jack -2- on the Engine Bracket and raise the engine/transmission assembly slightly.

-- Completely remove the engine mount bolts -arrows-.

-- Completely remove the bolts -arrows- for the transmission mount -1-.

GWWA10-11862Courtesy of AUDI OF AMERICA, LLC
CAUTION:

Risk of damaging the lines and hoses, as well as the engine compartment by lowering the engine/transmission assembly.

- Make sure all connections between the engine, transmission, subframe and body have been disconnected.

- Carefully lower and guide the engine/transmission assembly out of the engine compartment.

-- Lower the engine/transmission assembly.
