Engine Mount, Removing And Installing: Removing

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Disconnect the connector -2- for the Engine Coolant Level Sensor -G32-.

Courtesy of AUDI OF AMERICA, LLC

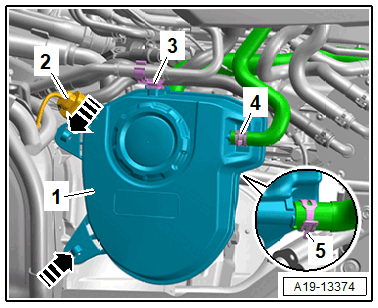

-- Remove the bracket -3- at the coolant expansion tank.

-- Release the catches -arrows- and remove the coolant expansion tank -1- and move to the side.

Audi A3 from MY 2021:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -1 and 2- and remove the ground cable.

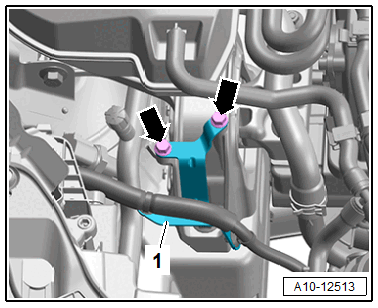

-- If equipped, remove the bolts -arrows- and place the bracket -1- to the side.

Courtesy of AUDI OF AMERICA, LLC

Continuation for All Vehicles:

Courtesy of AUDI OF AMERICA, LLC

-- Support the engine in the installation position. Refer to ENGINE, SUPPORTING IN INSTALLATION POSITION .

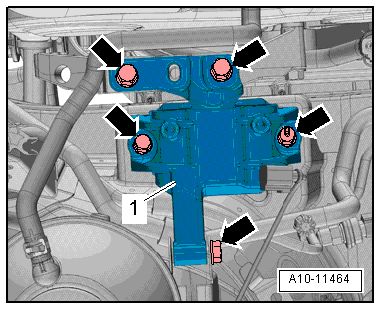

-- Remove the bolts -arrows- and engine mount -1-.
