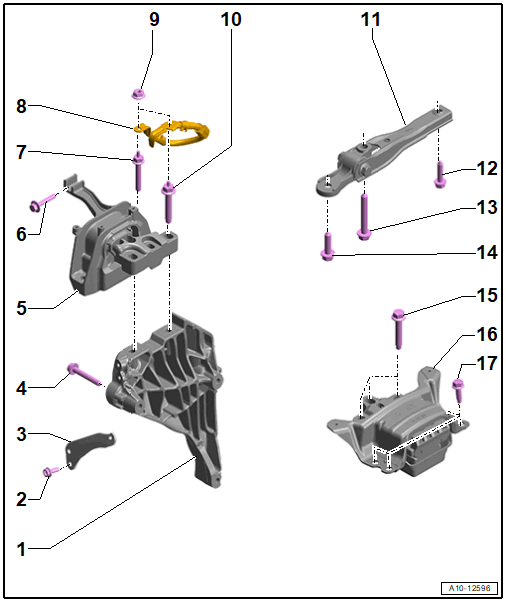

Overview - Assembly Mounts
- 1 -
Engine Support
- Removing and Installing. Refer to ENGINE SUPPORT, REMOVING AND INSTALLING .
- 2 -
Bolt
- Tightening specification. Refer to OVERVIEW - ASSEMBLY MOUNTS
- 3 -
Bracket
- Equipped on some models
- 4 -
Bolt
- Tightening specification. Refer to OVERVIEW - ASSEMBLY MOUNTS
- 5 -
Engine Mount
- With support arm
- Removing and Installing. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .
- 6 and 7 -
Bolt
- Tightening specification. Refer to OVERVIEW - ASSEMBLY MOUNTS
- 8 - Ground Wire
- 9 -
Nut
- Tightening Specification. Refer to the appropriate Wiring Diagram.
- 10 -
Bolt
- Tightening specification. Refer to OVERVIEW - ASSEMBLY MOUNTS
- 11 -
Pendulum Support
- Removing and Installing. Refer to PENDULUM SUPPORT, REMOVING AND INSTALLING .
- 12 -
Bolt
- Always replace after removing
- 130 Nm +90°
- 13 and 14 -
Bolt
- Always replace after removing
- 60 Nm +90°
- 15 -
Bolt
- Always replace after removing
- 60 Nm +90°
- 16 -
Transmission Mount
- Removing and Installing. Refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
- 17 -
Bolt
- Always replace after removing
- 50 Nm +90°
