Additional Checks

Check belt tension of air pump (1/8 to 3/8 slack under thumb pressure); adjust if required. Visually inspect all hoses, connections and clamps of the emission control system for tightness or leaks. Check all nuts and bolts for tightness.

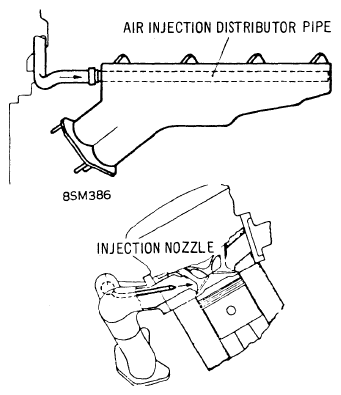

Fig 1: AIR INJECTION PIPE & NOZZLE
G09354959Courtesy of BMW OF NORTH AMERICA, INC.
