Carbon Brushes

Unsolder and replace carbon brushes. Do not allow solder to run into copper stands of brush leads. Minimum brush length is 0.55" (14 mm). After installation of new brushes, test for free movement.

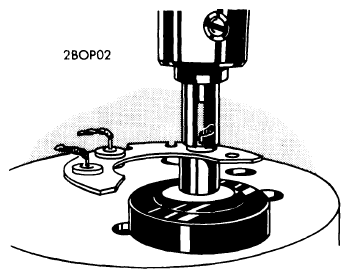

Fig 1: Installation Of Diode
G09318990Courtesy of NOT AVAILABLE
