Pick-Up Coil Resistance Check

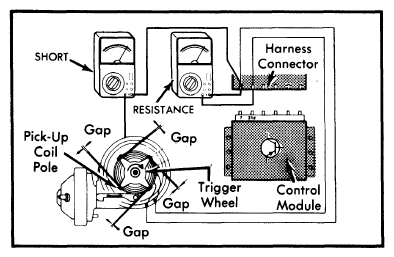

Turn ignition switch "OFF". Disconnect connector from control module and attach ohmmeter leads (set in x100 scale) to terminals 7 and 31d of harness connector. See Fig 1. Measure pick-up coil resistance. If not to specifications, remove electrical connections at distributor and connect ohmmeter leads directly to pick-up coil terminals. If still not to specifications, replace pick-up coil assembly.
Pick-Up Coil Resistance Specifications (Ohms)
| Application | Ohms | |
|---|---|---|
| BMW | 520-700 | |
| Fiat Strada & X1/9 | 890-1285 | |
| Mercedes-Benz | 500-700 | |
| Peugeot 604 | 485-700 | |
| Porsche | ||
| 924 | 890-1285 | |
| 928 | 485-700 | |
| Saab | 895-1285 | |
| Volvo | ||
| 4-Cylinder | 950-1250 | |
| 6-Cylinder | 540-660 | |
