Wiper Switch: Installation

To install, reverse removal procedure.

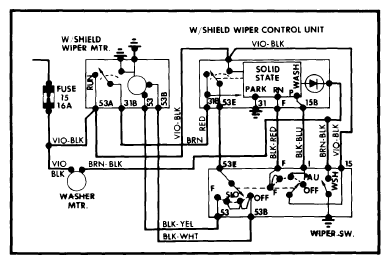

Fig 1: BMW Wiper/Washer Wiring Diagram (All Models)
G09322993Courtesy of BMW OF NORTH AMERICA, INC.
