Engine Compartment

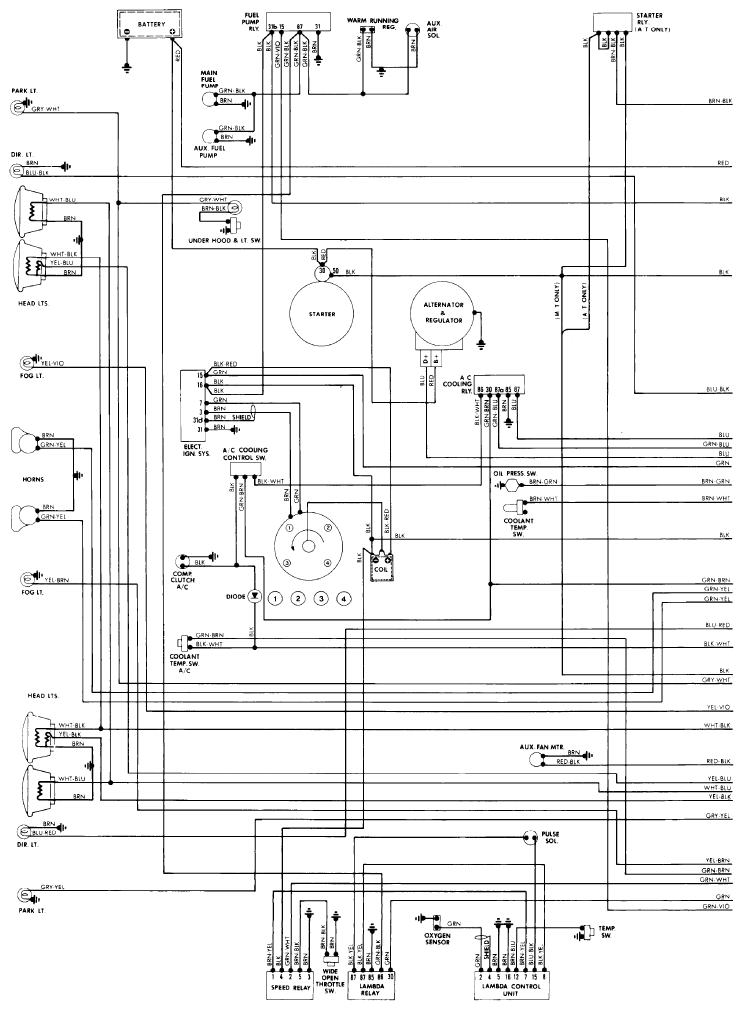

Fig 1: Wiring Diagram - 320i (1 of 4)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
