Steering Column: Installation

1. To install, reverse removal procedure and note the following: Upper column casing and tube must be aligned prior to tightening. When installing turn signal switch, wheels must point straight-ahead.
2. Turn signal switch must be in center position. Finger on canceling cam must point to center. Adjust switch so finger is about 0.12" (3 mm) from canceling cam.

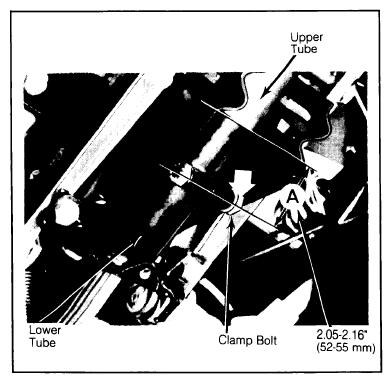

   Fig 1: Outer Tube And Clamp Bolt (528E & 633Csi)

   Courtesy of BMW OF NORTH AMERICA, INC.

   Ensure distance is correct before tightening bolt.

3. When reinstalling lower bearing, stem of split ring must face bearing and snap ring must fit in locking groove.

To install, reverse removal procedure noting the following: Prior to tightening clamp bolt, ensure that distance from centerline of clamp bolt to end of upper outer tube is 2.05-2.16" (52-55 mm). Align upper and lower steering shaft marks and tighten adjusting nut.

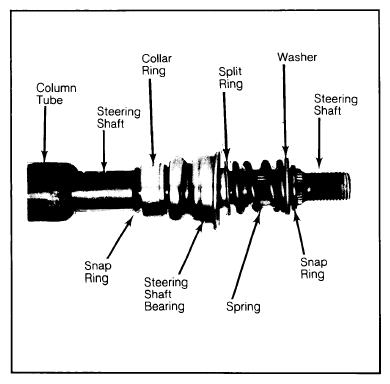

Fig 1: Upper Steering Shaft And Bearing (All Models Except 733I)

Courtesy of BMW OF NORTH AMERICA, INC.

To install, reverse removal procedure. Wheels must be in straight-ahead position when shafts are connected. Ensure all washers and spacers are replaced. Ignition switch must be in "O" position when installed.
