Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Central Locking Control Unit | Under dash, above and to left of glove box. |
| Cruise Control Unit | Under dash, above and to left of glove box. |
| Idle Speed Control Unit | Under right side of dash, above glove box. |
| Lock Heater Control Unit | In left front door. |
| Motronic Control Unit | Under right side of dash, above glove box. |
| On-Board Computer | Under left side of dash, on dash frame. |

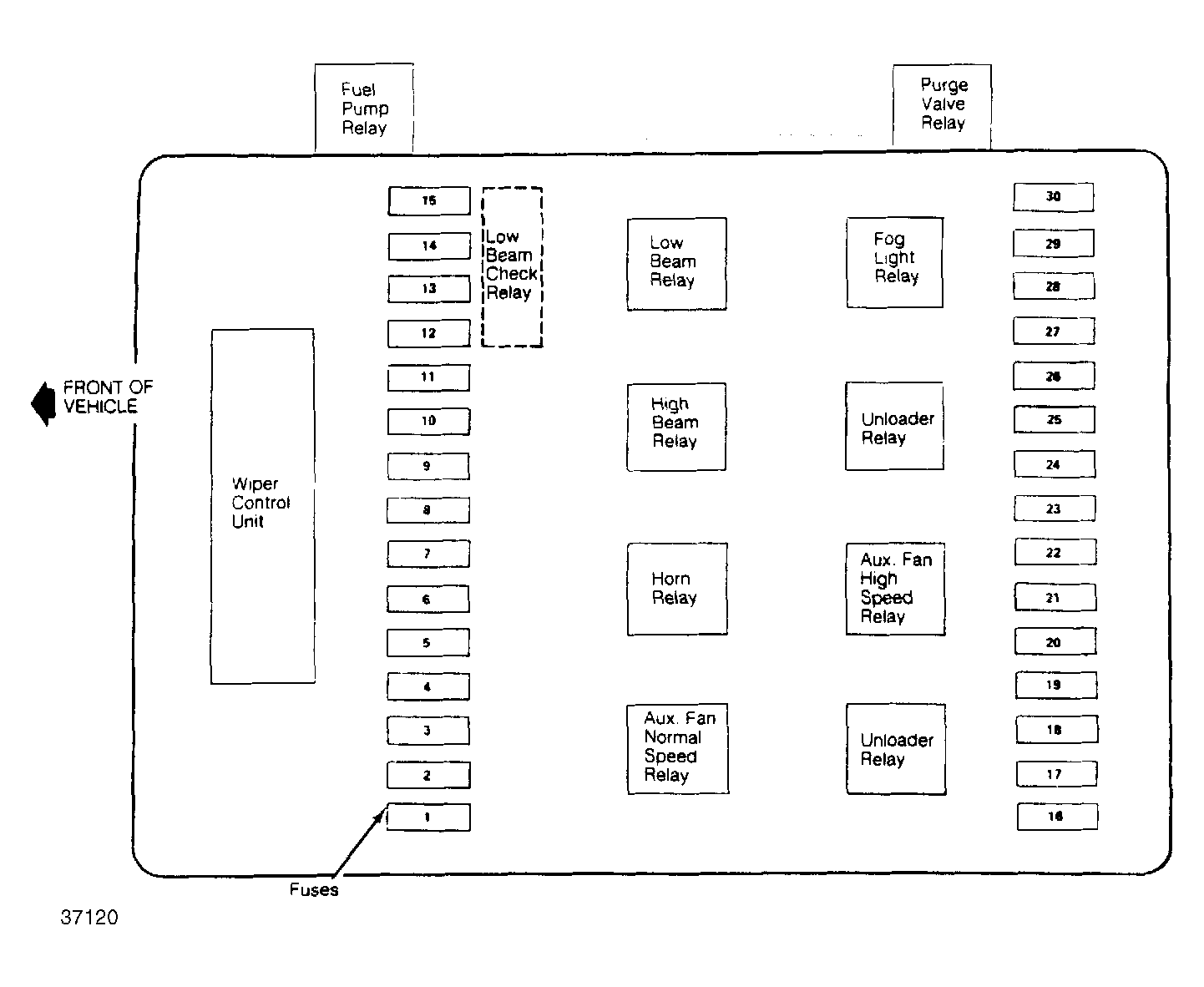

| Windshield Wiper Control Unit | In fuse/relay block. See Figure . |
