Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| A/C Evaporator Temperature Regulator | On left side of A/C-heater unit. |

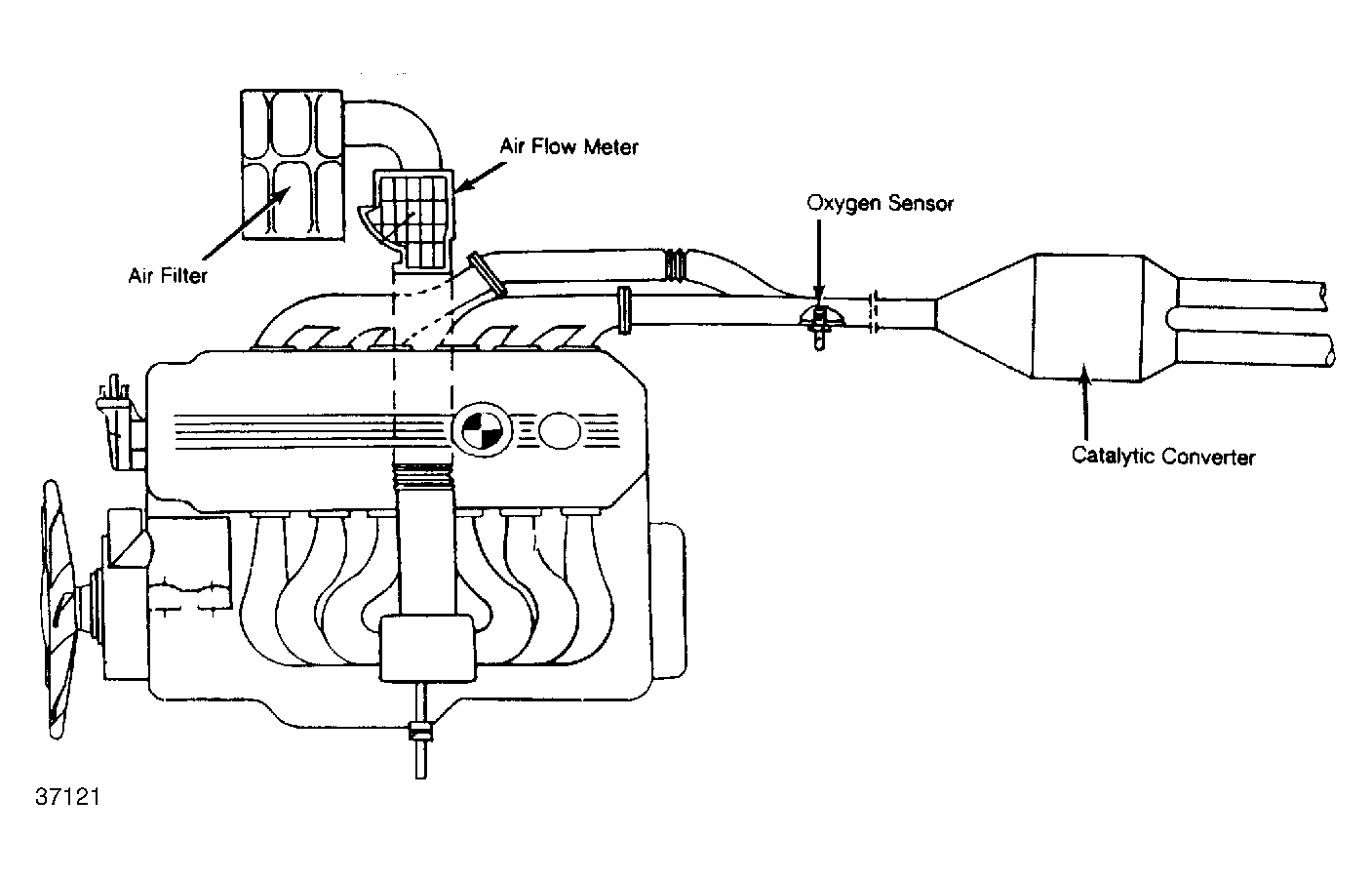

| Airflow Meter | Behind air cleaner housing, on top of engine. See Figure . |
| Alarm Horn | Below air cleaner intake, behind right side headlights. |
| Auxiliary Fan Normal Speed Resistor | On auxiliary fan shield, ahead of radiator. |
| Cold Start Valve | On top of engine, between 3rd and 4th intake ports. |
| Cruise Control Actuator | Below hydraulic fluid reservoir, behind left side headlights. |
| Diagnostic Connector | On bracket on top of engine. |
| Filter Capacitor | Behind right side headlights. |
| Fuse/Relay Block | On left front wheelwell. |
| Hazard/Turn Signal Flasher | Under left side of steering column. |
| Heater Regulator | Behind temperature select control knob. |
| Heater Water Shutoff Valve | On left rear corner of engine compartment. |
| Idle Speed Control Valve | On top of engine, below throttle body. |
| Lock Heater | In left front door. |
| Power Window Circuit Breaker | Under left side of dash. |
| Purge Valve | Behind right side headlights. |
| Seat Belt Warning Chime | Under dash, above and to left of glove box. |
| Windshield Washer Jet Heaters | On windshield washer jet nozzles. |
