Throttle Switch

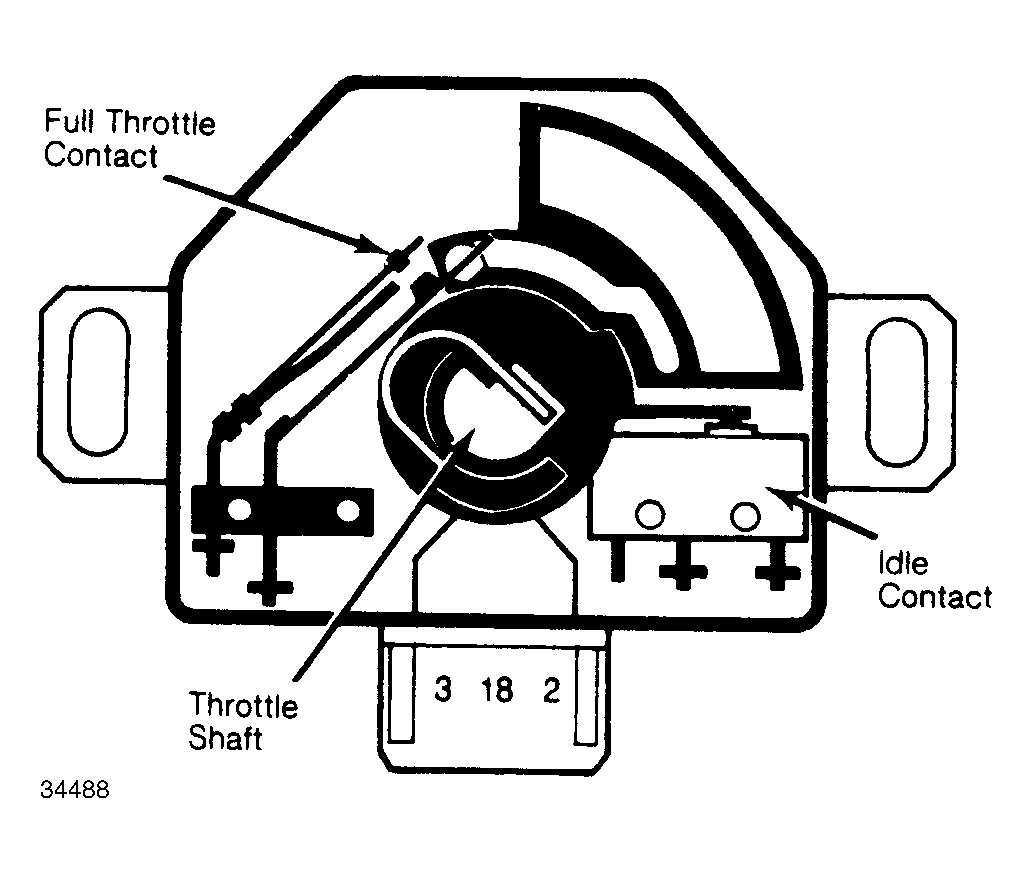

A contact-type throttle switch is installed on the throttle chamber of all models. It converts throttle position into electrical signals to inform ECU of throttle position. See Fig 1 .
The potentiometer within the air flow meter prevents loss of engine power during sudden acceleration/deceleration by signaling the ECU of necessary fuel enrichment requirements.
