EGR System - Diesel: Testing: Notes

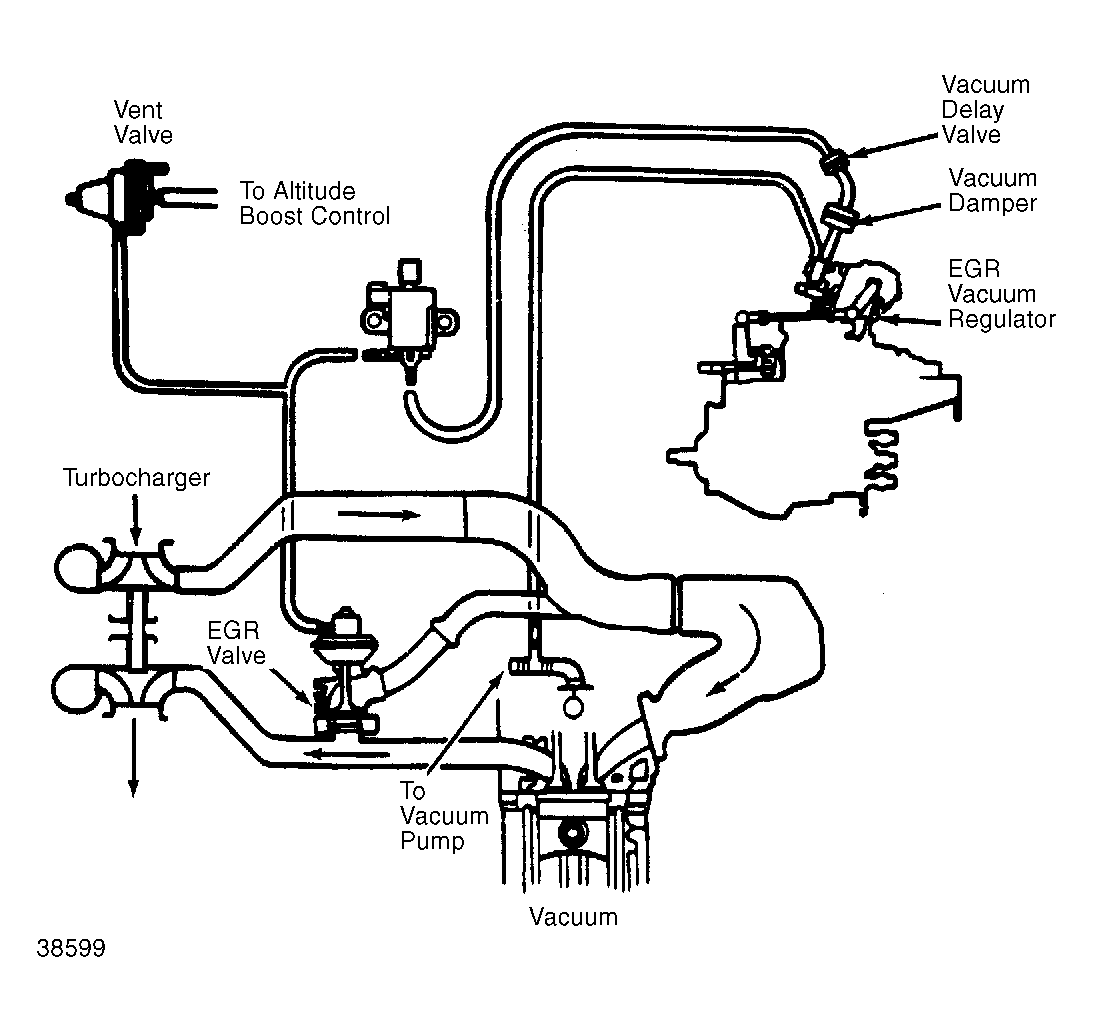

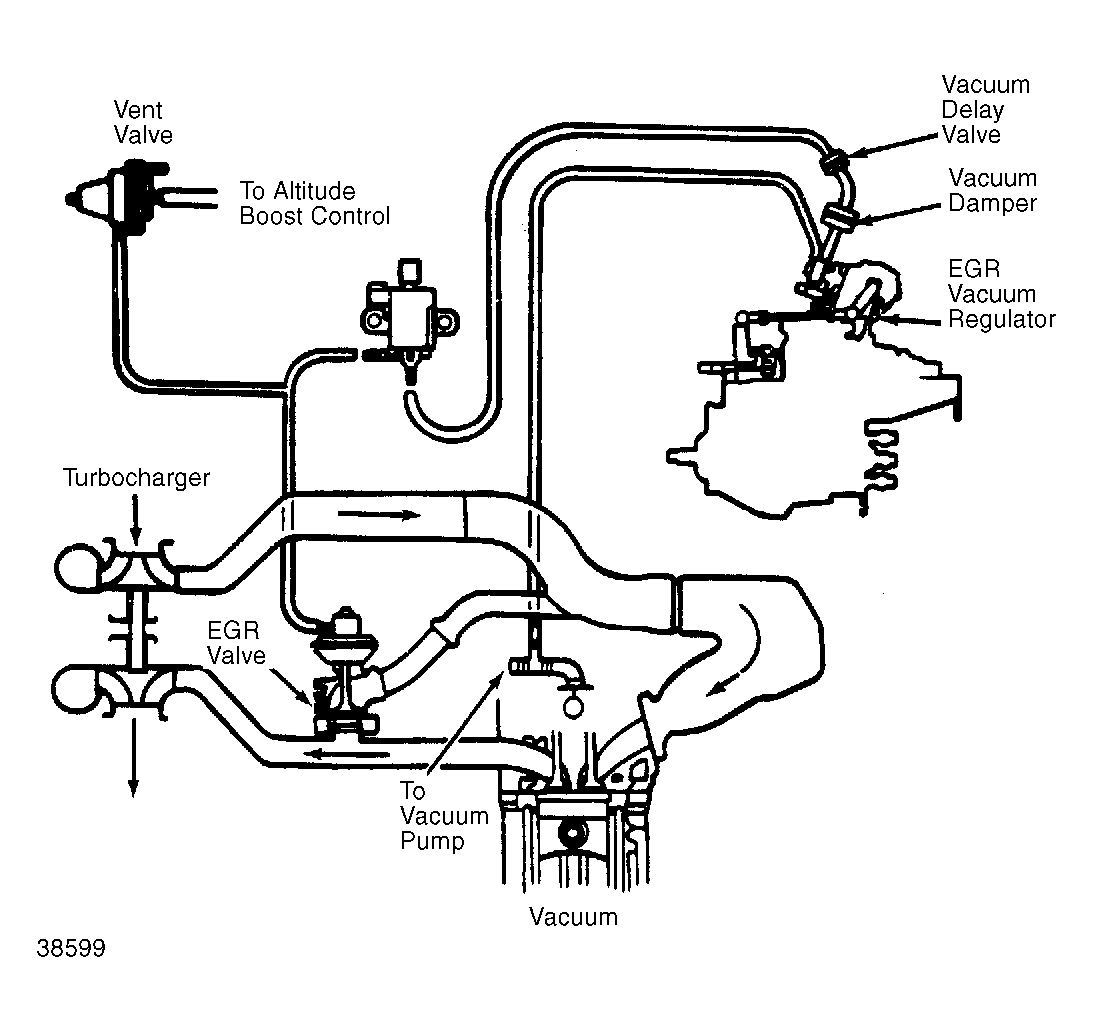

NOTE: Verify that EGR vacuum hoses are connected to correct fittings. See Figure . See that vacuum delay valve is installed in the correct direction (back side toward EGR solenoid).
