Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

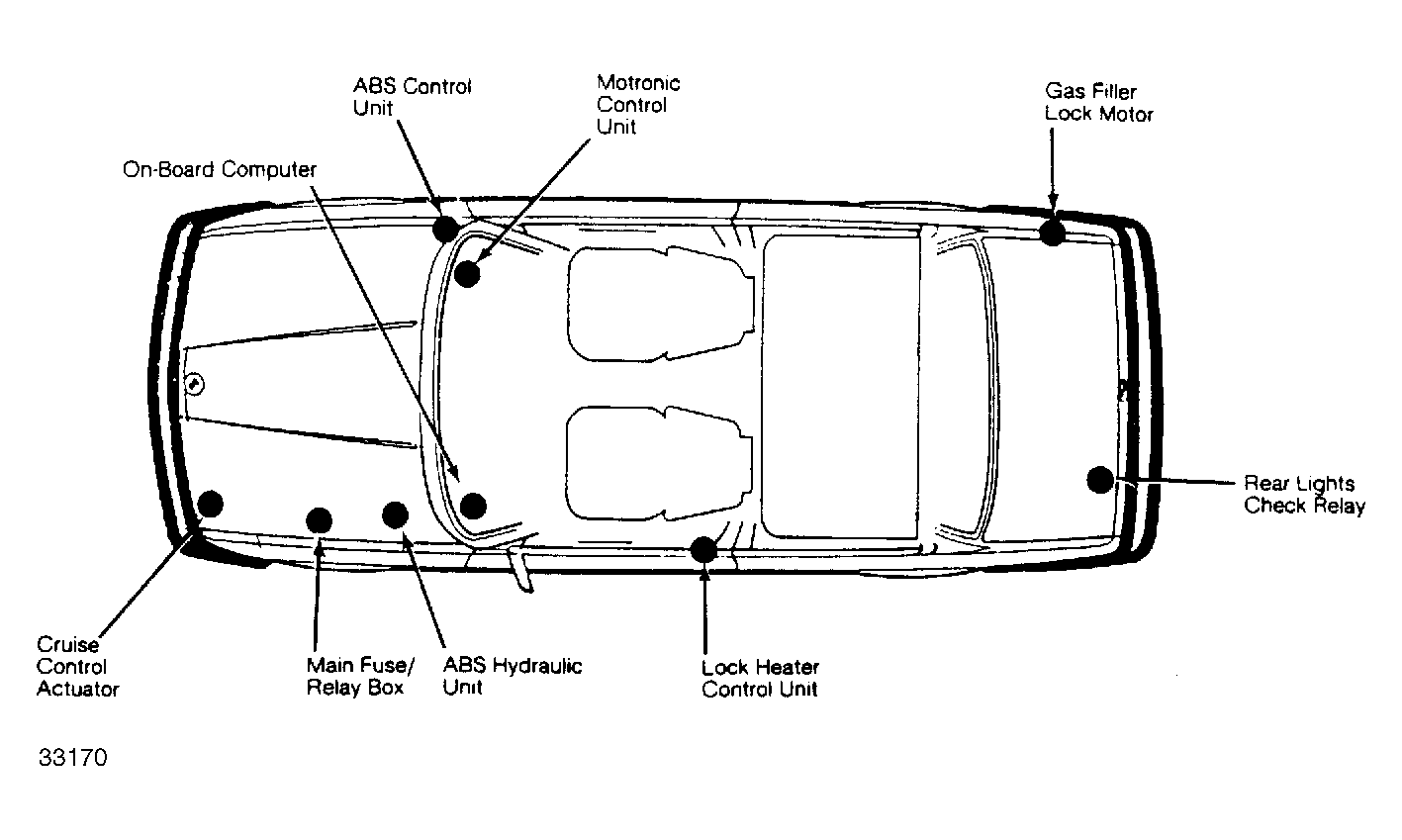

| ABS Control Unit | Below right side windshield. See Figure. |
| Central Locking Control Unit | Under dash, above and to left of glove box. |
| Cruise Control Unit | Under dash, above and to left of glove box. |
| Idle Speed Control Unit | Under right side of dash, above glove box. |
| Lock Heater Control Unit | In left front door. See Figure. |
| Motronic Control Unit | Under right side of dash, above glove box. See Figure. |
| On-Board Computer | Under left side of dash, on dash frame. See Figure. |
| Transistorized Speed Control Unit | On the right side of the blower housing. |

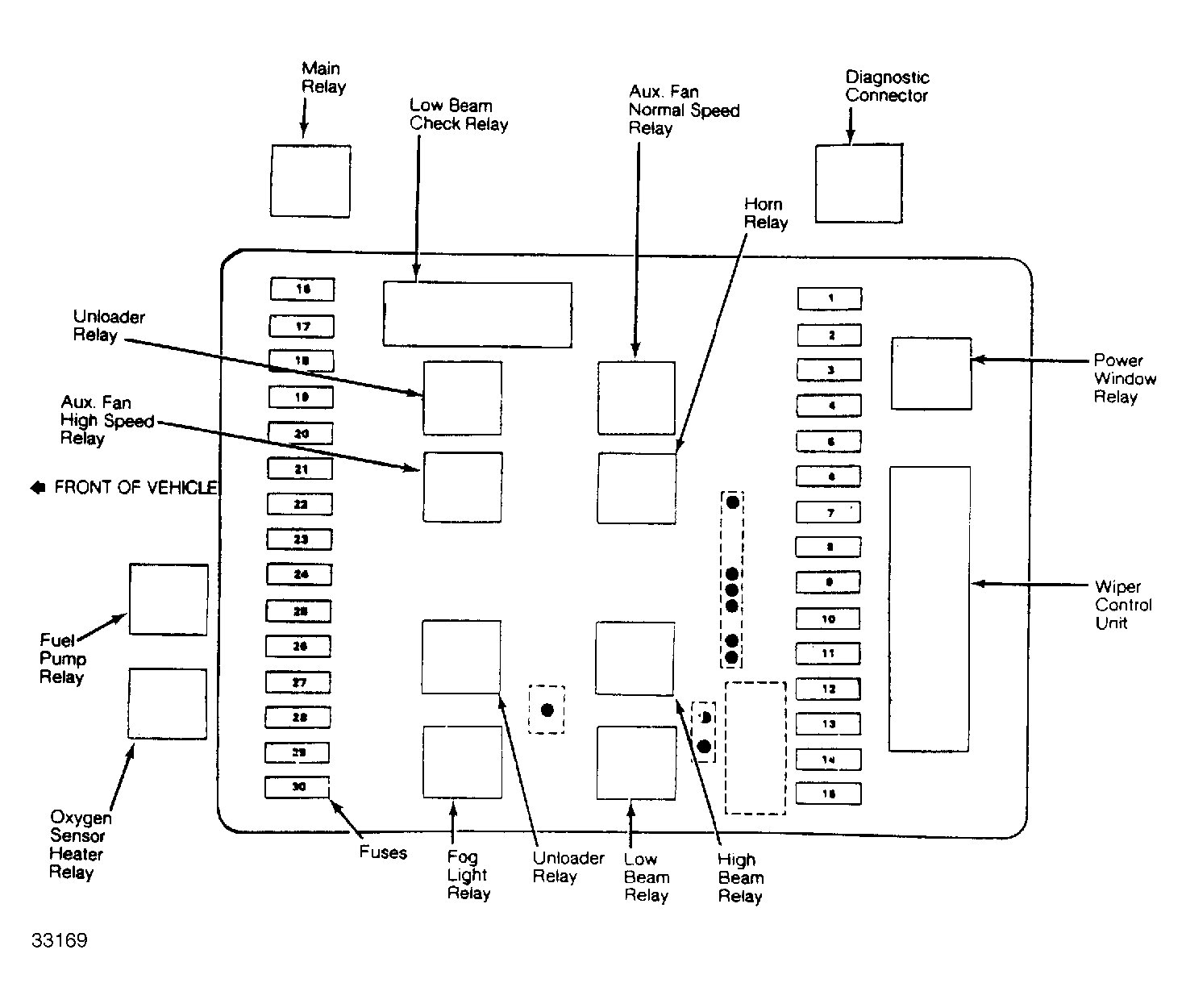

| Windshield Wiper Control Unit | In main fuse/relay box. See Figure. |
