Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Unit | Below right side of windshield. See Figure . |
| Central Locking Control Unit | Under dash, above and to left of glove box. |
| Cruise Control Unit | Under left side of dash, above left speaker. See Figure . |
| Door Lock Heater Control Unit | In left front door, near door lock. See Figure . |
| Idle Speed Control Unit | Under right side of dash, above glove box. |
| Memory Seat Control Module | Under front of driver's seat. |
| Motronic Control Unit | Under right side of dash, above glove box. See Figure . |
| On-Board Computer | In center console, to right of radio. See Figure . |
| Transmission Control Unit | Under left side of dash, above on-board computer. See Figure . |

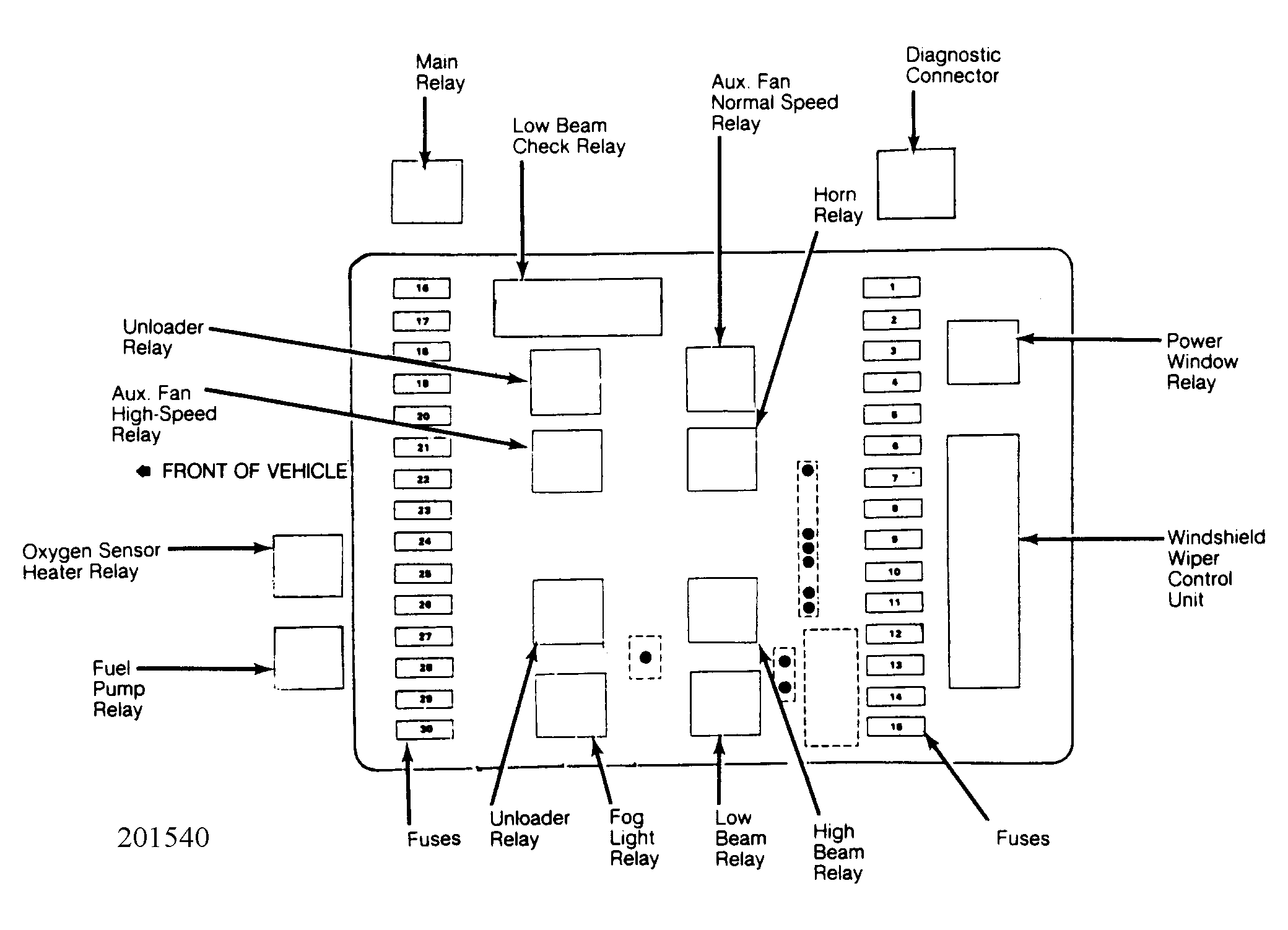

| Windshield Wiper Control Unit | In fuse/relay block. See Figure . |
