Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Electronic Control Unit | Behind right shock tower. |
| Active Check Control Module | At left of steering column. |
| Central Locking Control Unit | At left of glove box. |
| Chime Module | Under left side of dash. |
| Cruise Control, Control Unit | Under left side of dash. |
| Evaporator Temperature Regulator | On left side of heater-A/C unit. |
| Fresh Air Door Control Unit | At left of glove box. |
| Hydraulic Control Unit | At right of left front wheelwell. |
| Interior Light Timer Control | Under left side of dash, on body electrical bracket. |
| Level Control Unit | In front of left rear axle. |
| Lock Heater Control Unit | In left front door, near lock unit. |
| Memory Seat Control Module | Under front of left front seat. |
| Motronic Control Unit | Above glove box. |
| On-Board Computer Module | At center of dash. |
| Transmission Control Unit | Under left side of dash. |

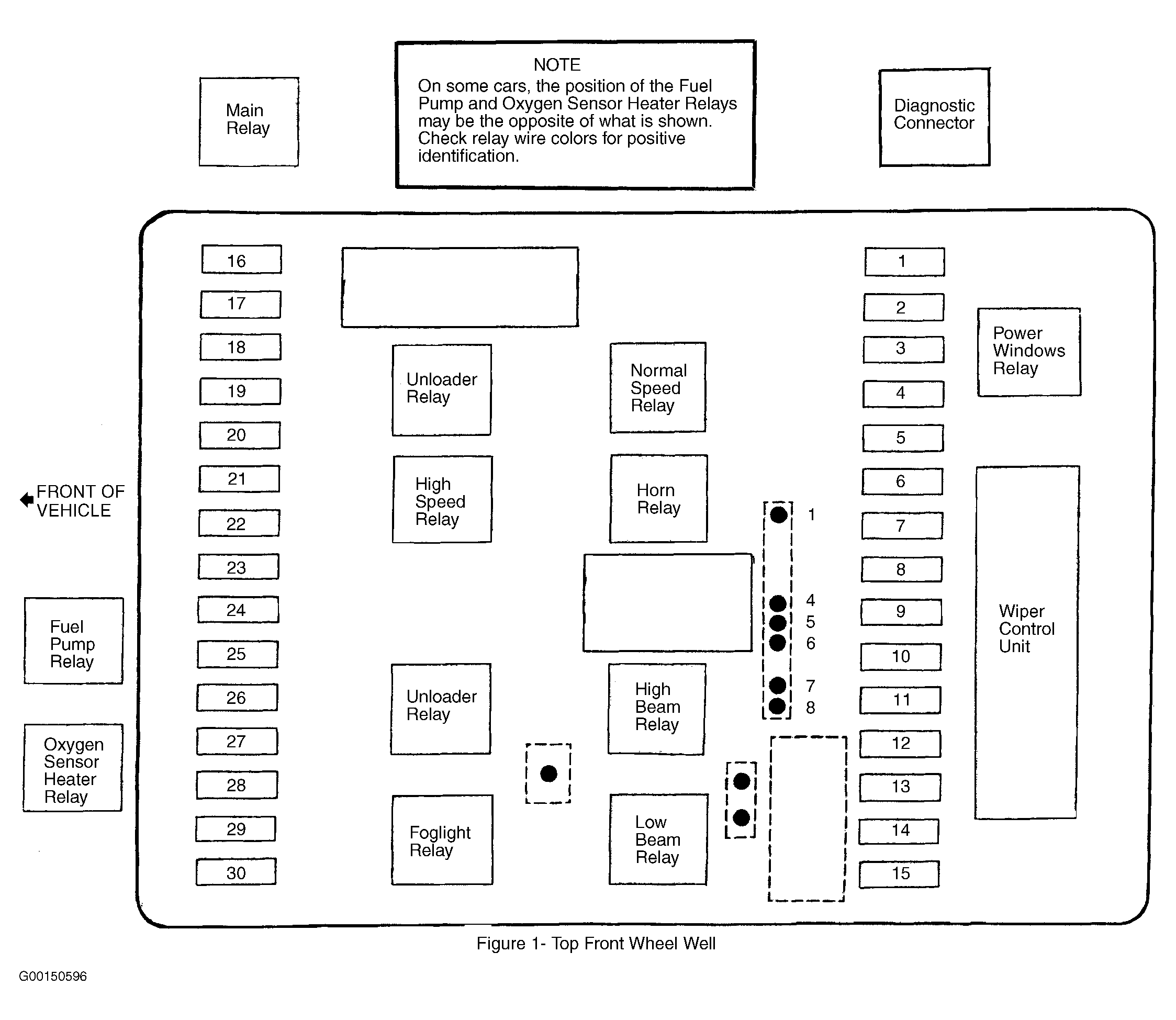

| Wiper Control Unit | In power distribution box. See Figure . |
