* Please Read First Before Testing *

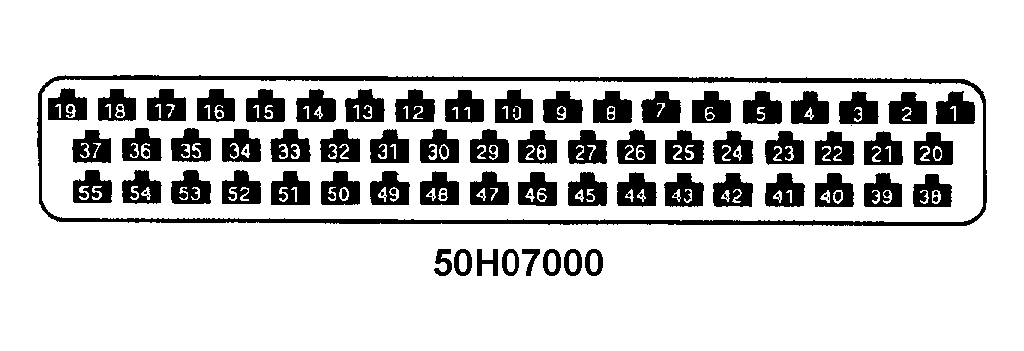

For all of the following testing the component or circuit is at test terminal 55-point connector unless otherwise specified.
CAUTION:
Use only a digital voltmeter, ohmmeter, or multimeter with high input impedance. The electrical characteristics of other types of test equipment may cause inaccurate results or damage to the electronic components.
NOTE:
The ignition must be OFF before disconnecting or connecting any electrical connections.
