Trouble Shooting: Notes

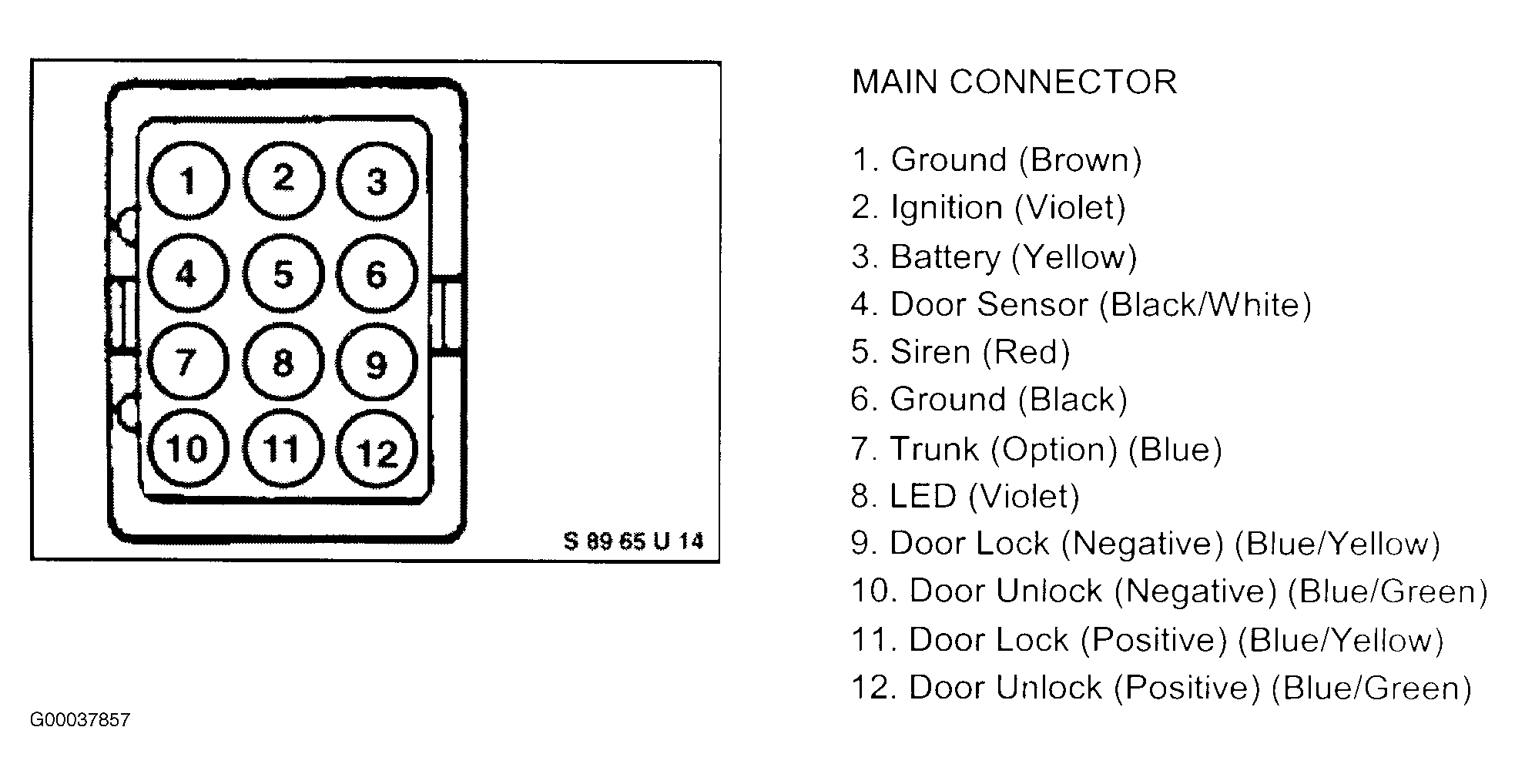

Fig 1: Remote System Main Electrical Connector
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
