Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| A/C In-Line Fuse | On left rear side of evaporator housing. |

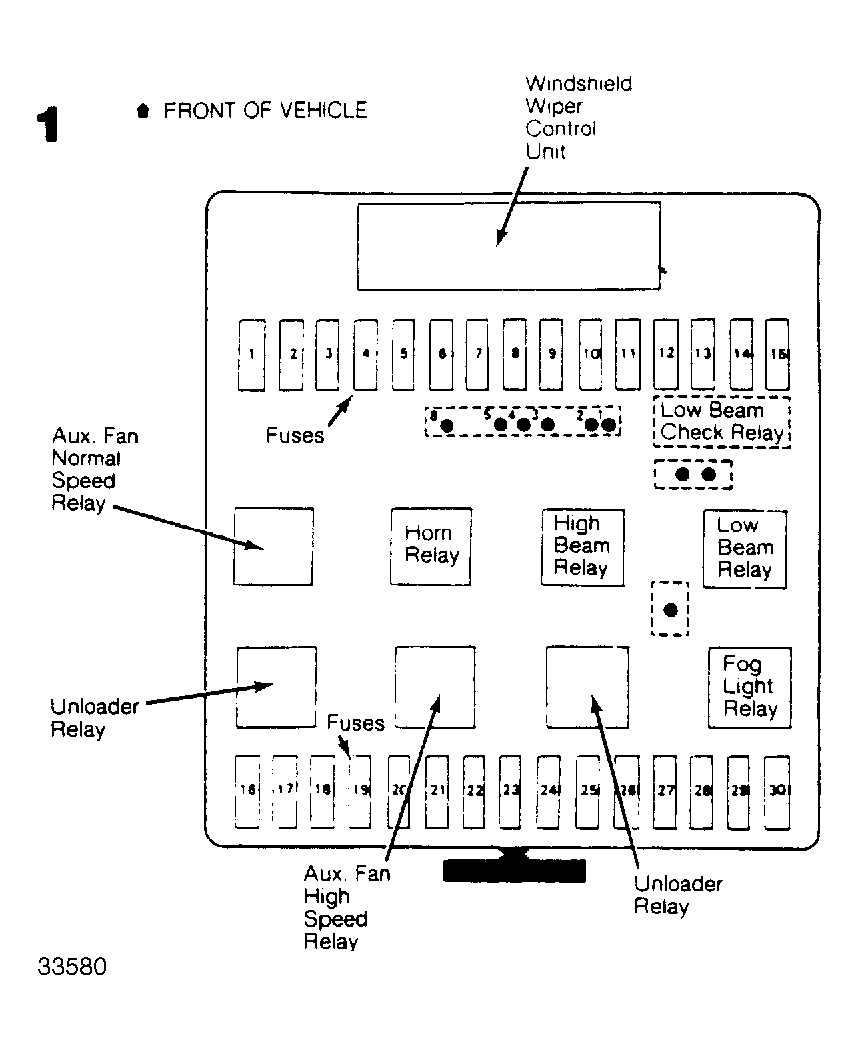

| Fuse/Relay Block | At left rear corner of engine compartment. See Figure . |
| Power Window Circuit Breaker | On center console, ahead of shift lever. |
