Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Electronic Control Unit | Above hood release. See Figure . |

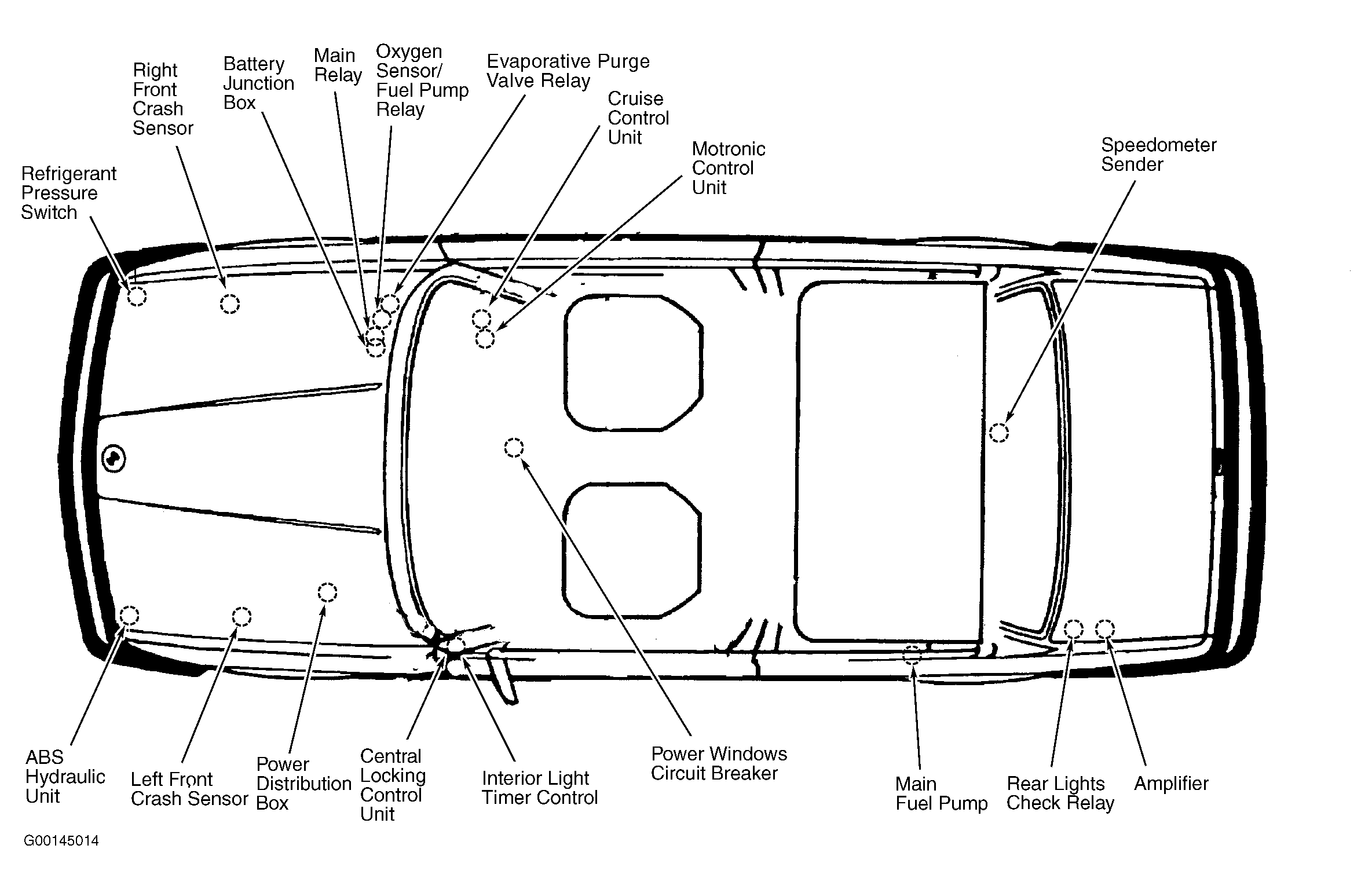

| ABS Hydraulic Unit | In front of left front wheelwell. See Figure . |
| Active Check Control Unit | Above rear view mirror. |
| Central Locking Control Unit | At left kick panel. See Figure . |
| Chime Module | Mounted on left dash hush panel. |
| Cruise Control Unit | Above glove box. See Figure . |
| Evaporator Temperature Regulator | On left side of evaporator housing. |
| Evaporator Temperature Sensor | On left side of evaporator housing. |
| Interior Light Timer Control | Below left front speaker. See Figure . |
| Lock Heater Control Unit | At top rear of left door. |
| Motronic Control Unit | Above glove box. See Figure . |
| On-Board Computer Module | Behind center of dash. See Figure . |

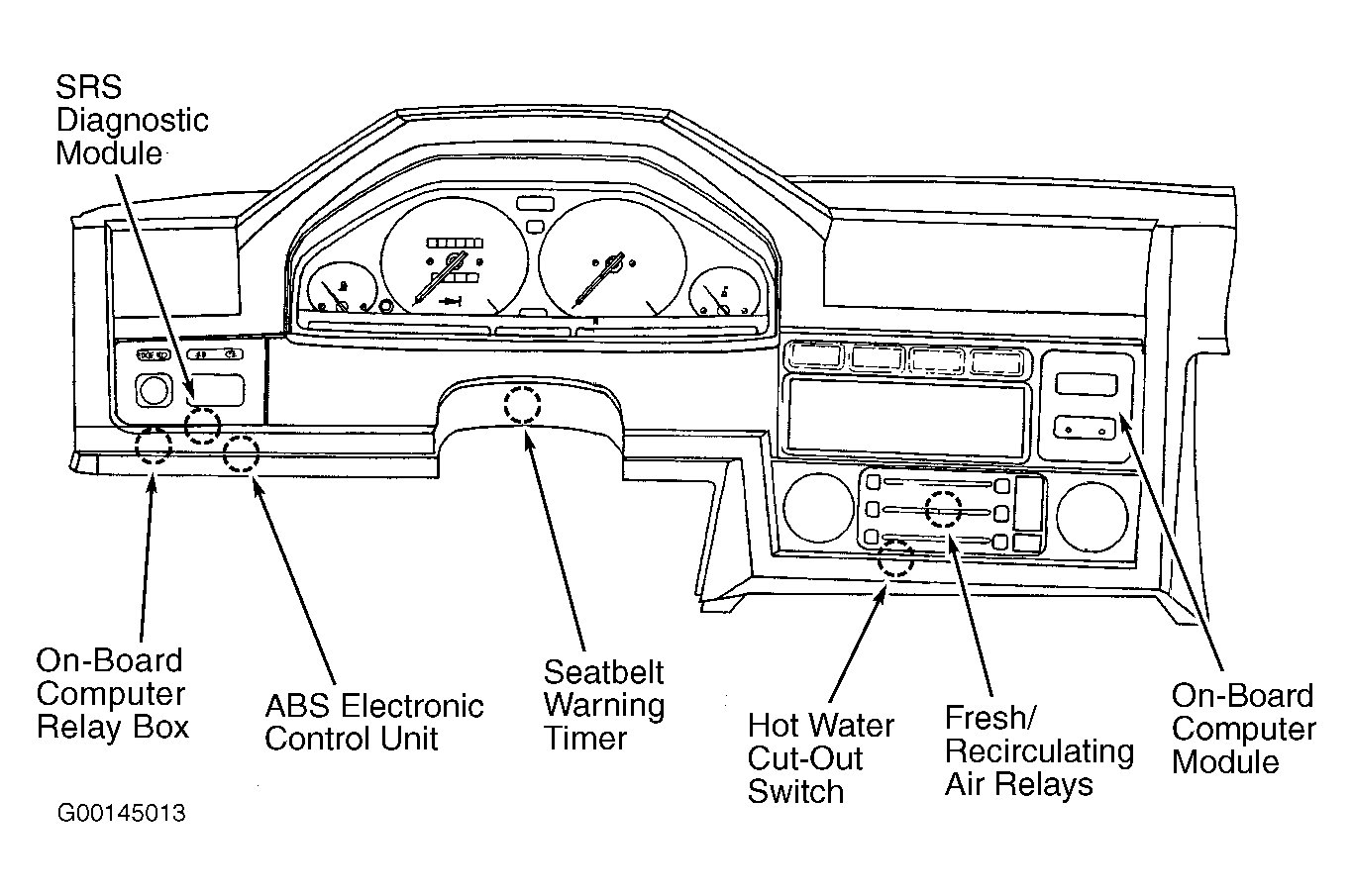

| SRS Diagnostic Module | Above ABS electronic control unit. See Figure . |

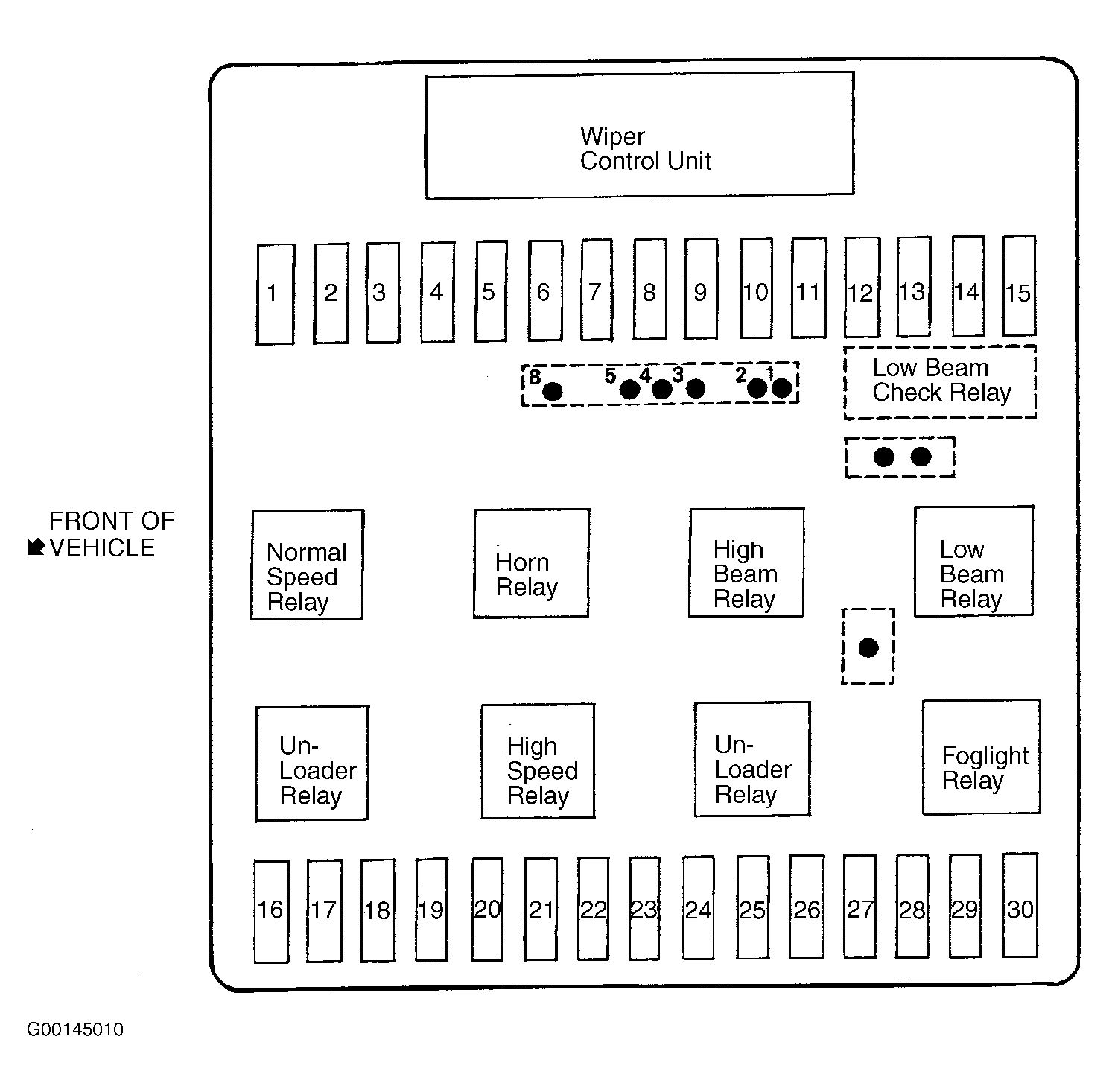

| Wiper Control Unit | In power distribution box. See Figure . |
