Wiring Diagrams

Fig 1: Power Window Wiring Diagram (1992 2-Door Coupe)

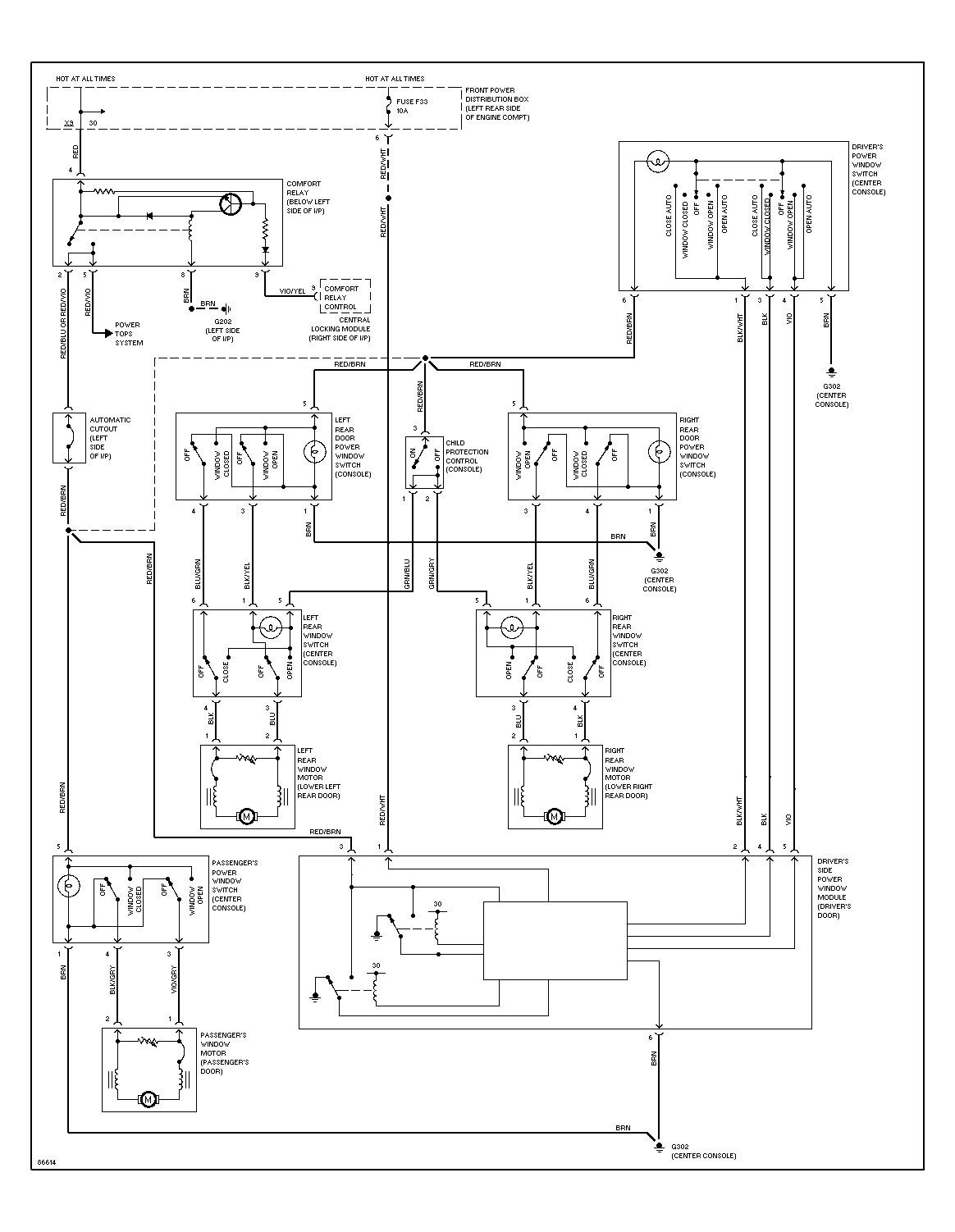

Fig 2: Power Window Wiring Diagram (1992 4-Door)

Fig 3: Power Window Wiring Diagram (1992 Convertible)

Fig 4: Power Window Wiring Diagram (1993 2-Door Coupe)

Fig 5: Power Window Wiring Diagram (1993 4-Door)

Fig 6: Power Window Wiring Diagram (1993 Convertible)

Fig 7: Power Window Wiring Diagram (1995-96 318ti)

Fig 8: Power Window Wiring Diagram (1994-96 Except 318ti - 1 Of 2)

Fig 9: Power Window Wiring Diagram (1994-96 Except 318ti - 2 Of 2)
