Repair and Diagnosis: Electrical: Starter: Overhaul

For overhaul procedures, see appropriate illustration for exploded view of starter. See Fig 1 or Fig 2 .

NOTE: Exploded view of starter for 525i is not available from manufacturer.

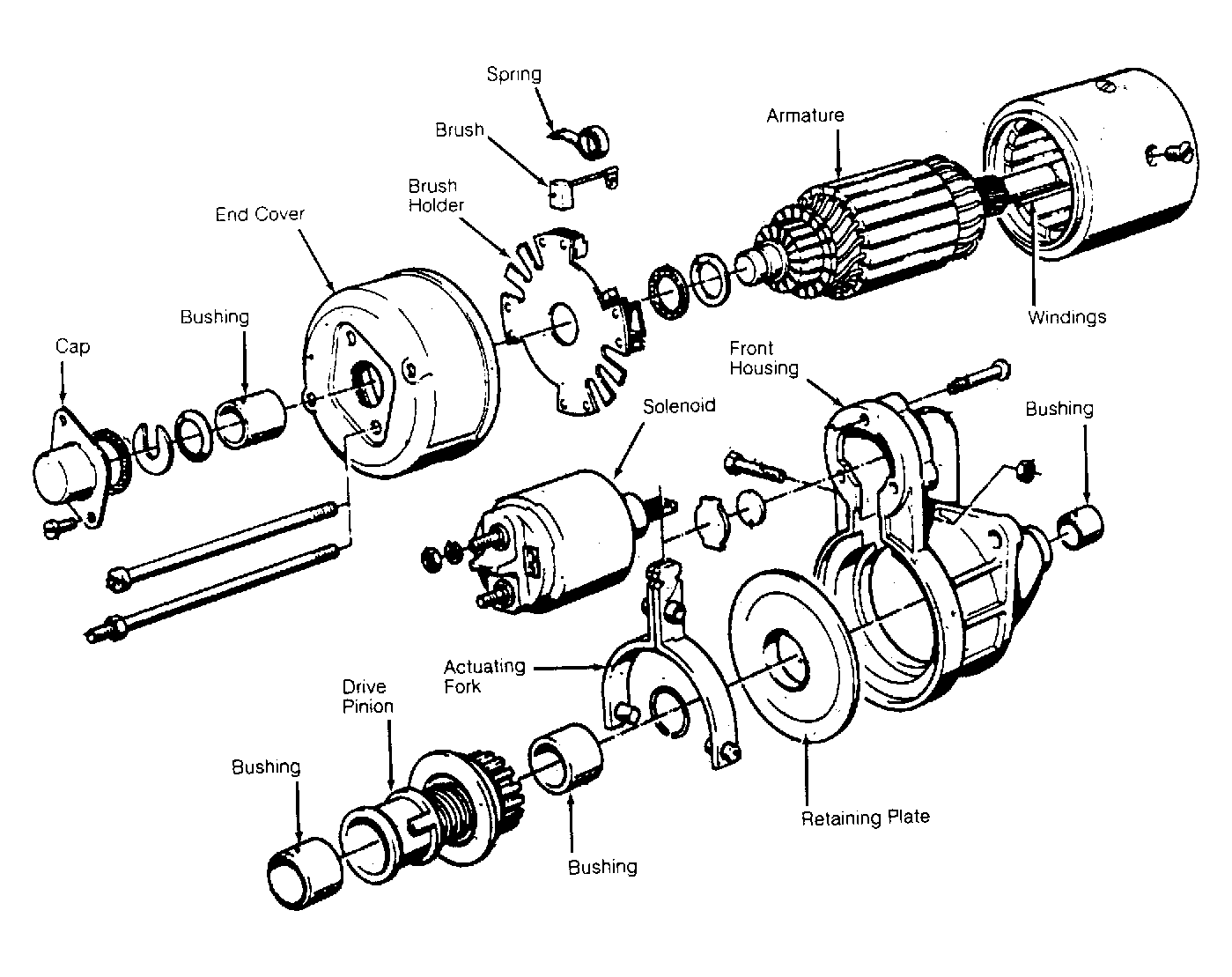

Fig 1: Exploded View of Bosch Starter (318 & 325 Series)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Exploded View of Bosch Reduction Gear Starter (535 & 735 Series)

Courtesy of BMW OF NORTH AMERICA, INC.
