Relays & Solenoids: Relays

DME/MOTRONIC SYSTEM RELAYS LOCATIONS

Application (1) Location
325i, 325iC & 325is On Left Rear Corner Of Engine Compartment, In Fuse/Relay Block
525i On Right Rear Corner Of Engine Compartment, Next To DME Control Unit
(1) See Fig 1 .

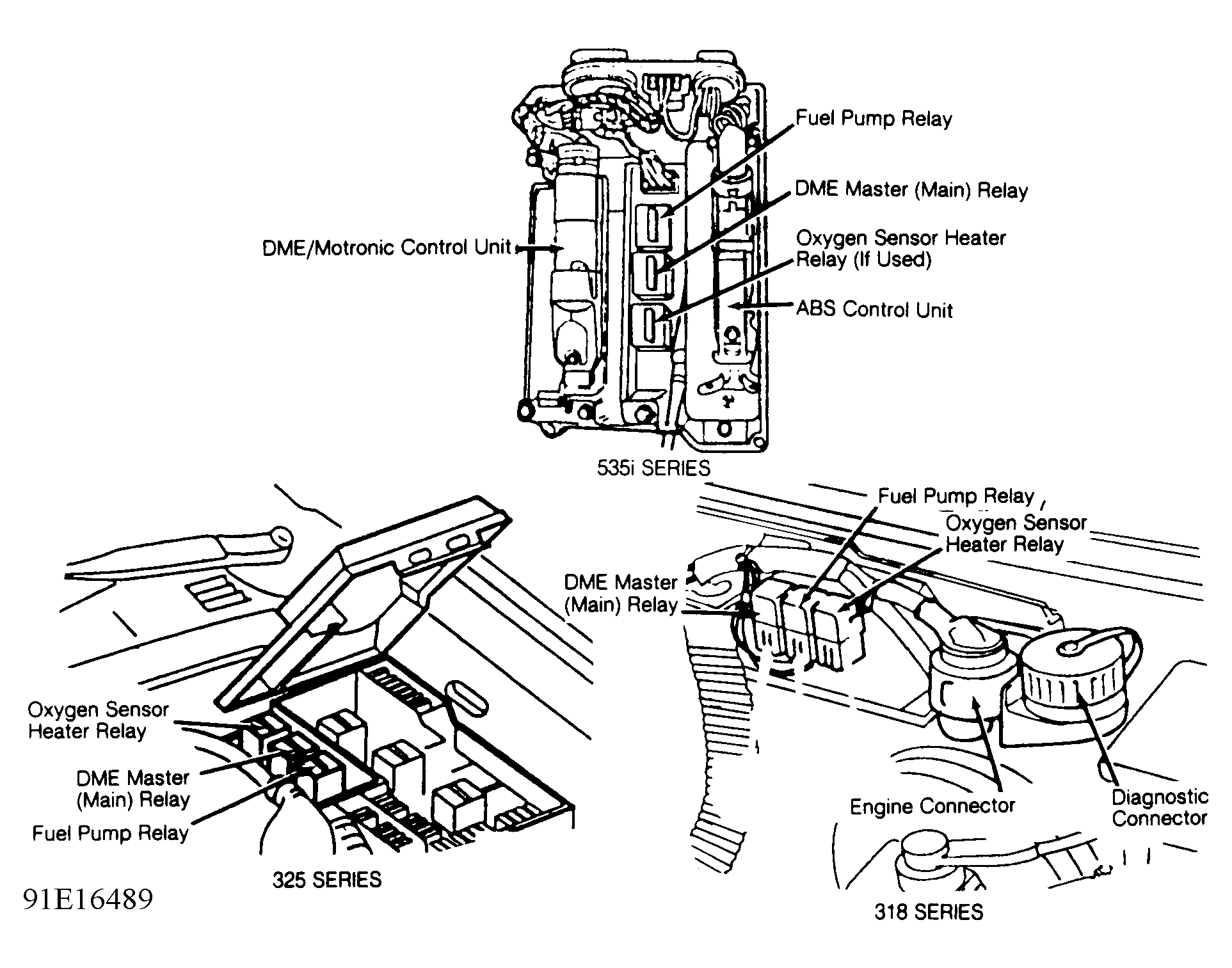

Fig 1: Locating DME/Motronic System Relays (except 525i)
G91E16489Courtesy of BMW OF NORTH AMERICA, INC.
