Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Power Distribution Box (View) | In left rear corner of engine compartment. See Figure . |
| Power Distribution Box (Location) | In left rear corner of engine compartment. See Figure . |
| Passenger Compartment Relay Block | Behind left side of dash. See Figure . |

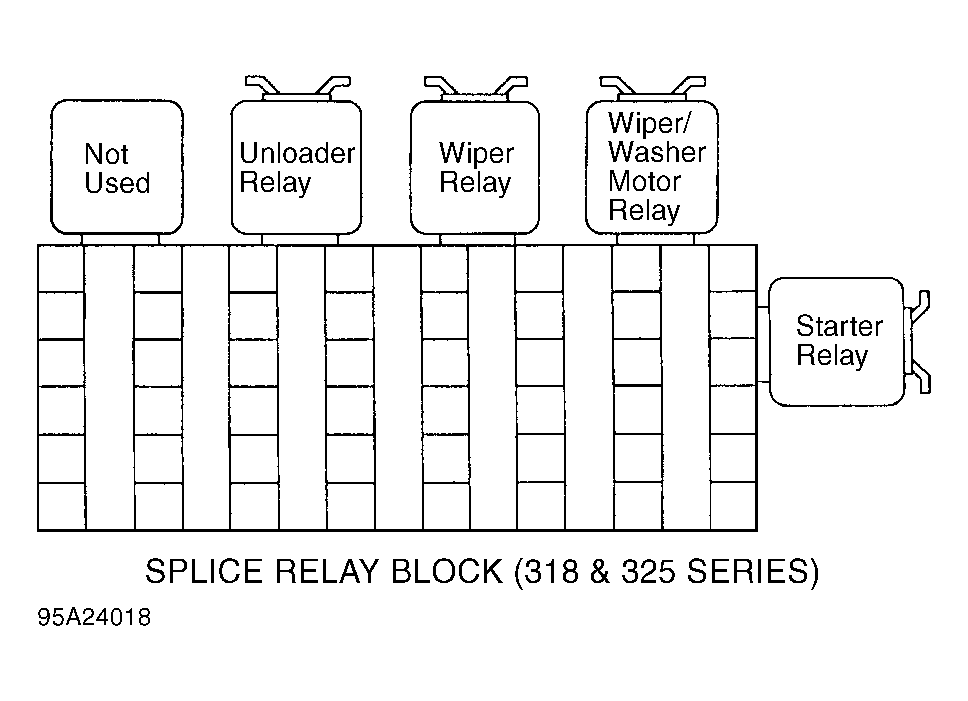

| Splice Relay Block | Under left side of dash. See Figure . |
