Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | Under right side of dash, behind glove compartment. See Figure . |
| Air Bag Module | Under right rear seat. |
| Anti-Theft Alarm Control Unit | Under right side of dash, behind glove compartment. |
| Body Electronics Control Module | Behind glove compartment. See Figure . |
| Check Control Module | Under left side of dash. See Figure . |
| Chime Module | Below left side of dash. |

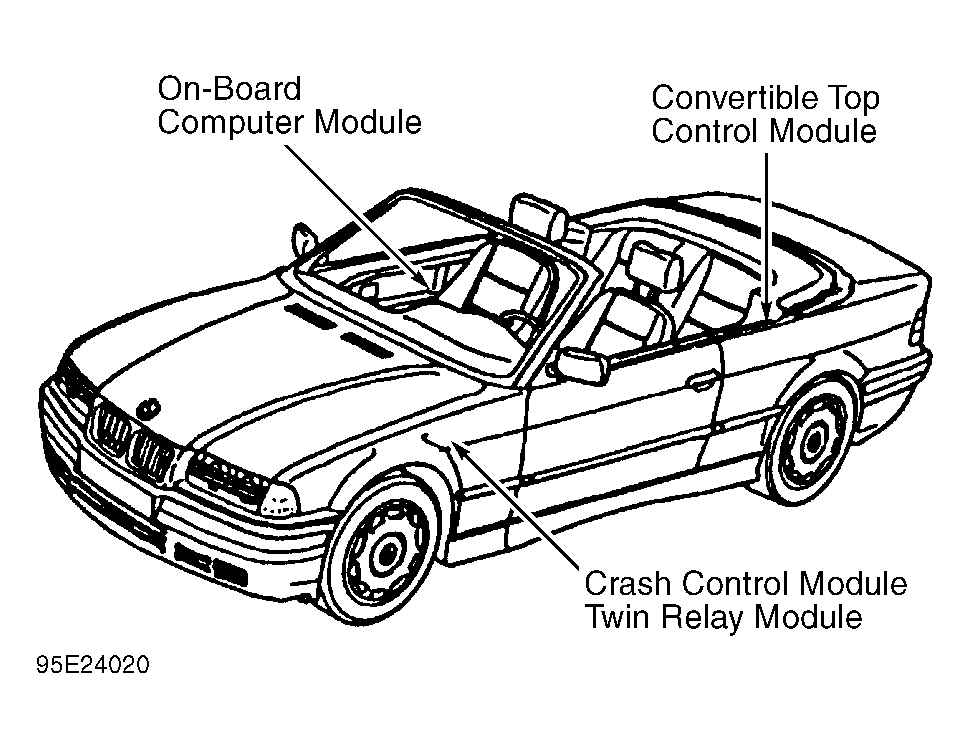

| Convertible Top Control Module | On lower left C-pillar behind side panel. See Figure . |

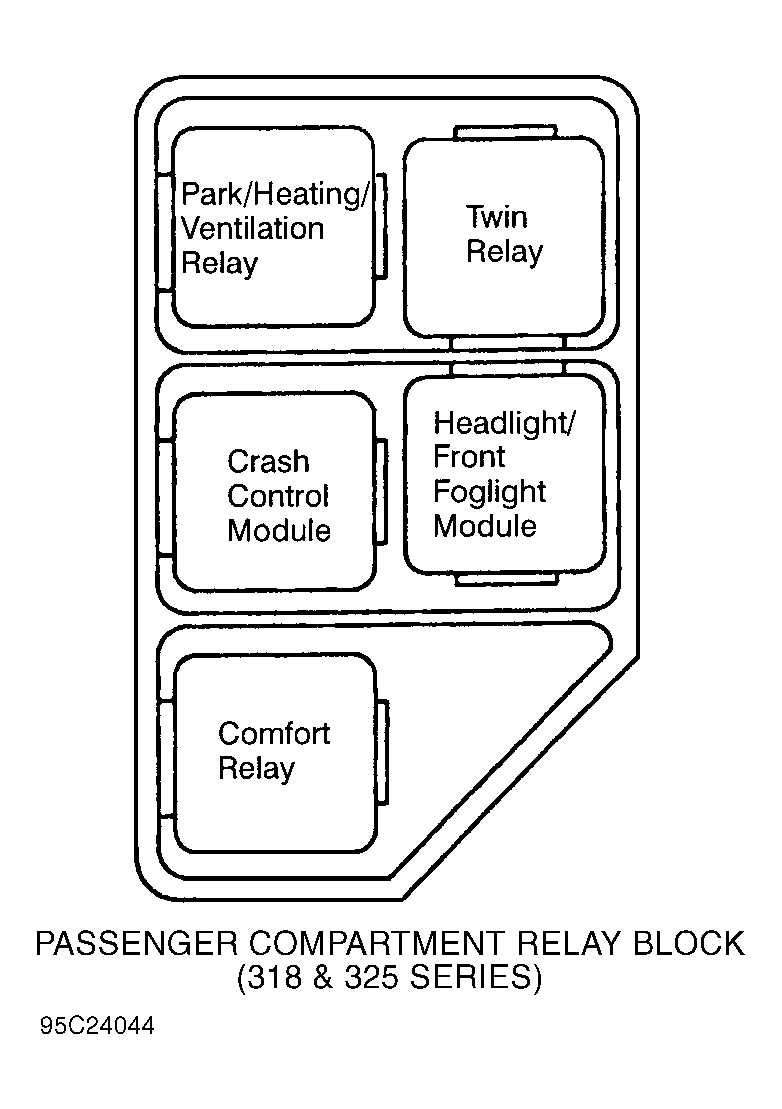

| Crash Control Module (View) | Left side footwell. See Figure . |
| Crash Control Module (Location) | Left side footwell. See Figure . |

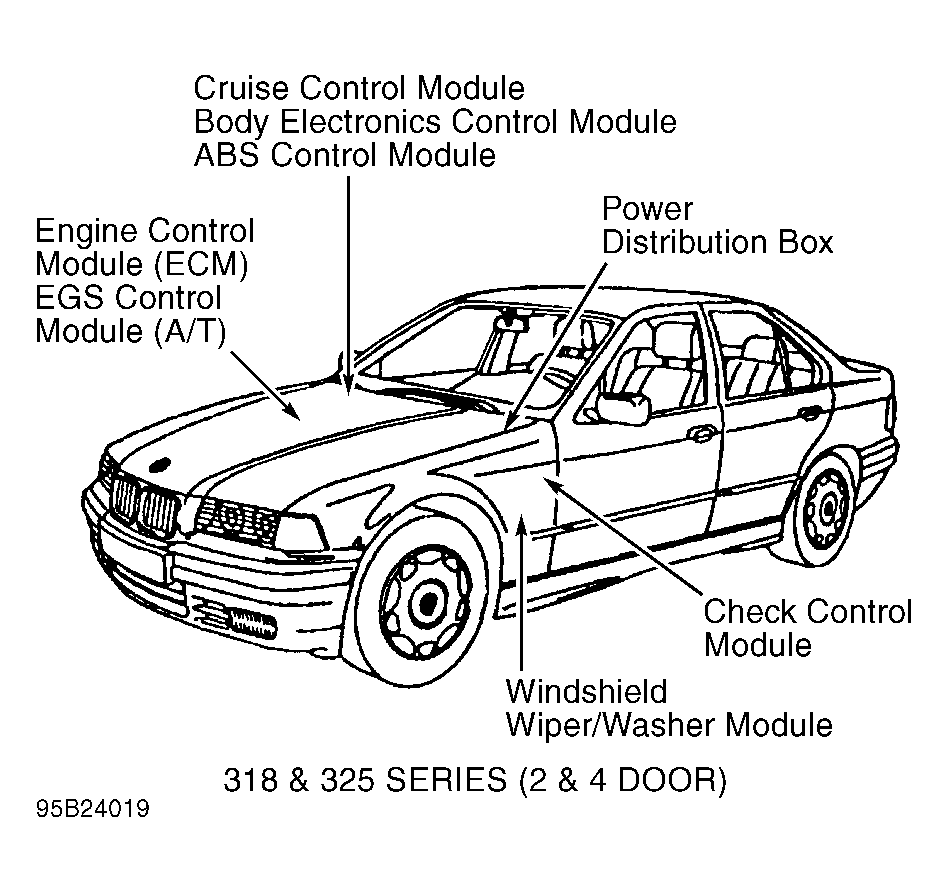

| Cruise Control Module | Under right side of dash, behind glove compartment. See Figure . |
| EGS Control Module (A/T) | On right rear of engine compartment. See Figure . |
| Engine Control Module (ECM) | Right rear corner of engine compartment. See Figure . |
| Headlight/Front Foglight Module | Left footwell. See Figure . |
| Integrated Climate Regulation Control Unit | Center console. |
| On-Board Computer Module | Center console. See Figure . |
| Sun Roof Computer Module | Under roof center panel. |
| Twin Relay Module | Left side footwell. See Figure . |
| Windshield Wiper/Washer Module | Left footwell. See Figure . |
