Connector Identification

For DME control unit connector identification, see Fig 1 . For additional connector identification, see Fig 2 -Fig 23 .

Fig 1: DME ECU 88-Pin Connector Terminal Identification

Courtesy of BMW OF NORTH AMERICA, INC.

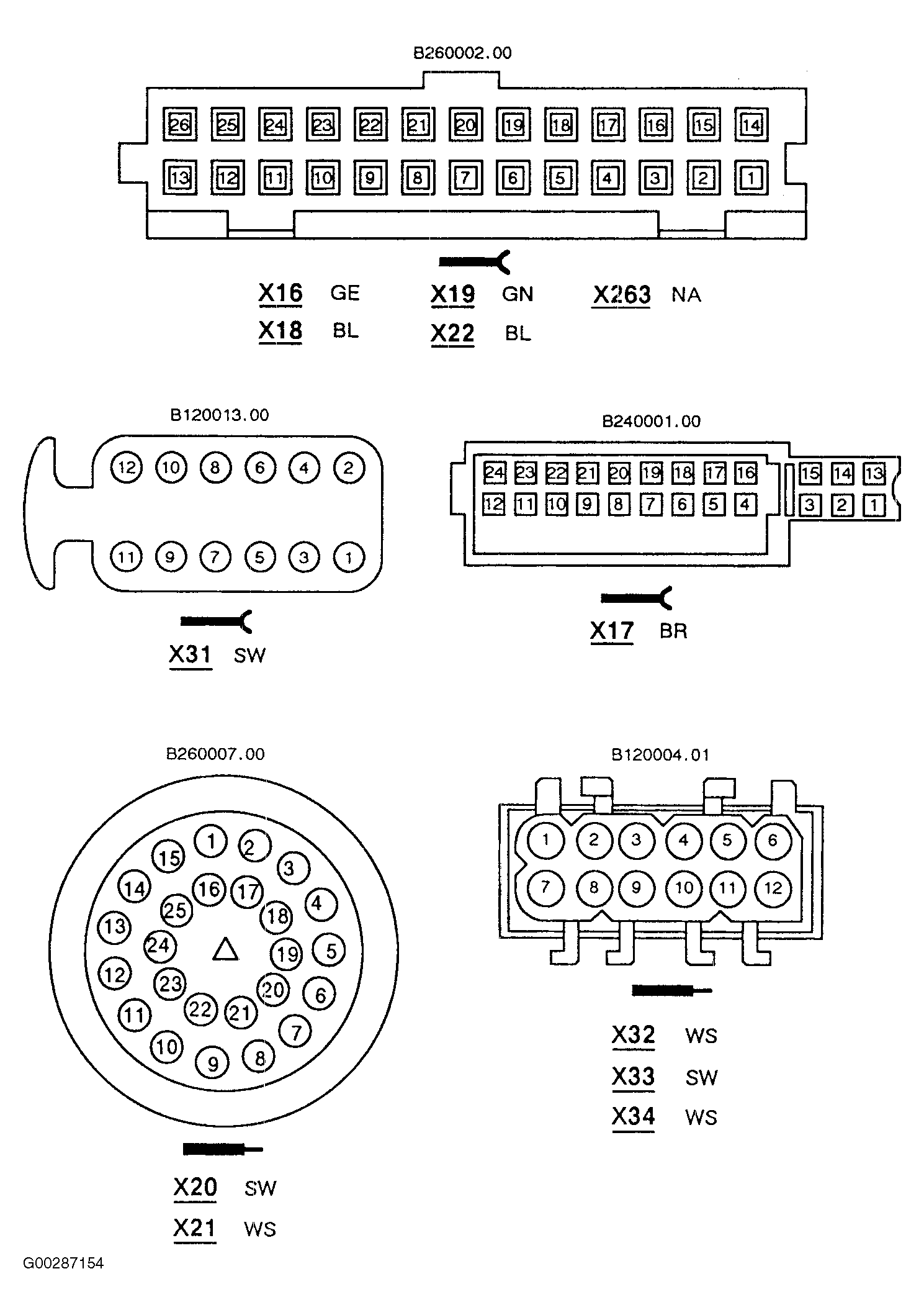

Fig 2: BMW Connector Identification (X16-X22, X31-X34)

Courtesy of BMW OF NORTH AMERICA, INC.

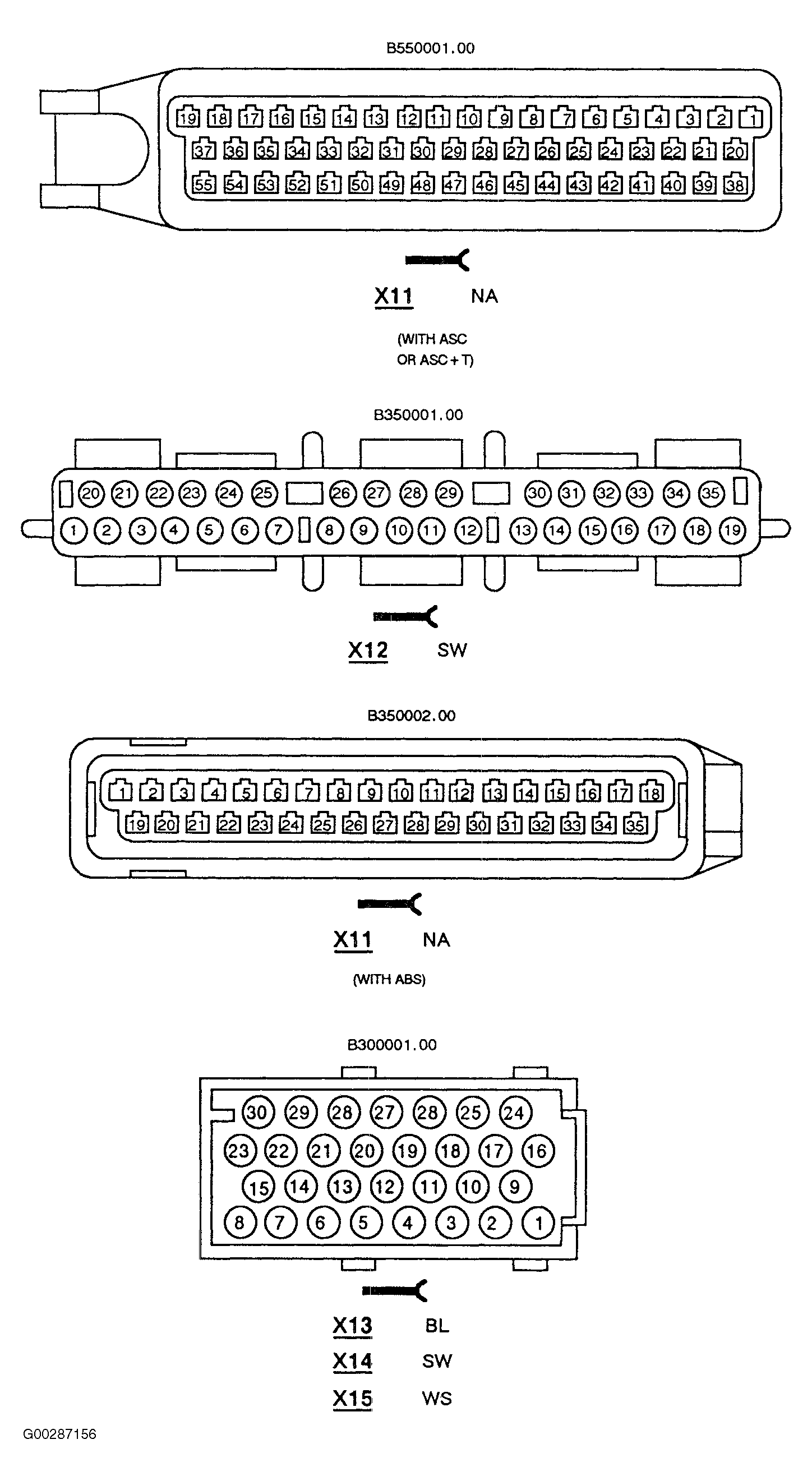

Fig 3: BMW Connector Identification (X11-X15)

Courtesy of BMW OF NORTH AMERICA, INC.

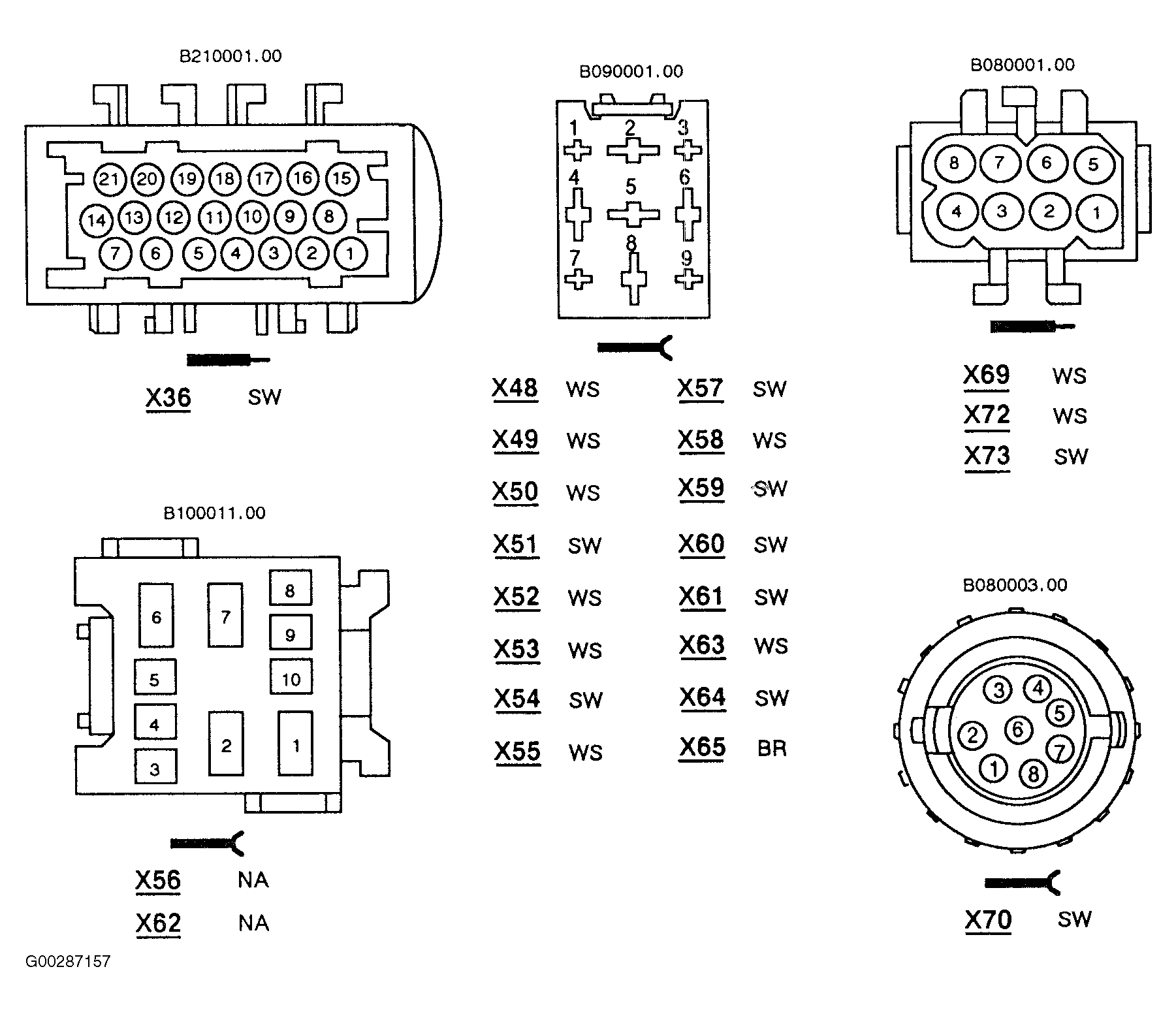

Fig 4: BMW Connector Identification (X36, X48-X65, X69-X70, X72-X73)

Courtesy of BMW OF NORTH AMERICA, INC.

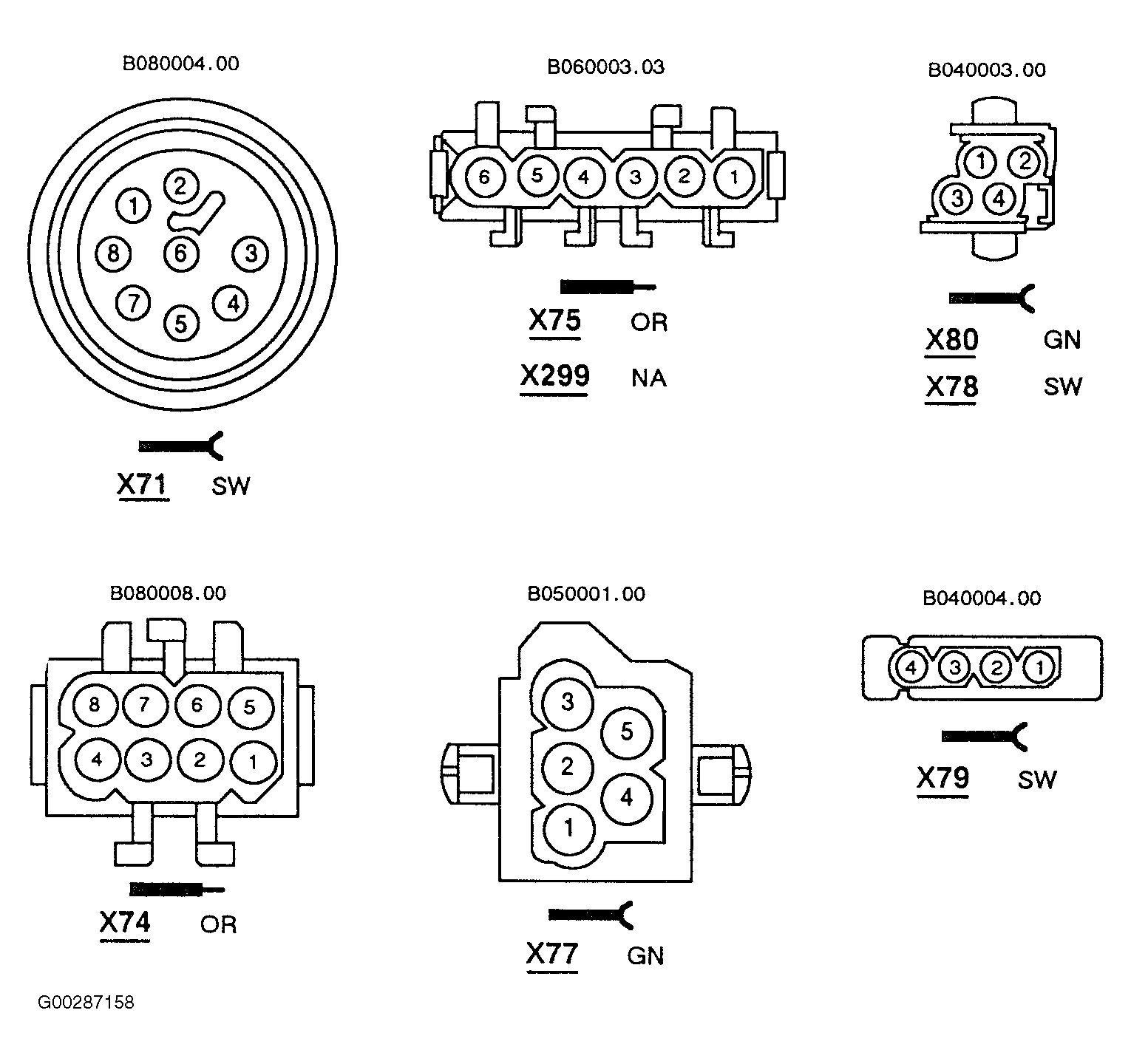

Fig 5: BMW Connector Identification (X71, X74-X75, X77-X80, X299)

Courtesy of BMW OF NORTH AMERICA, INC.

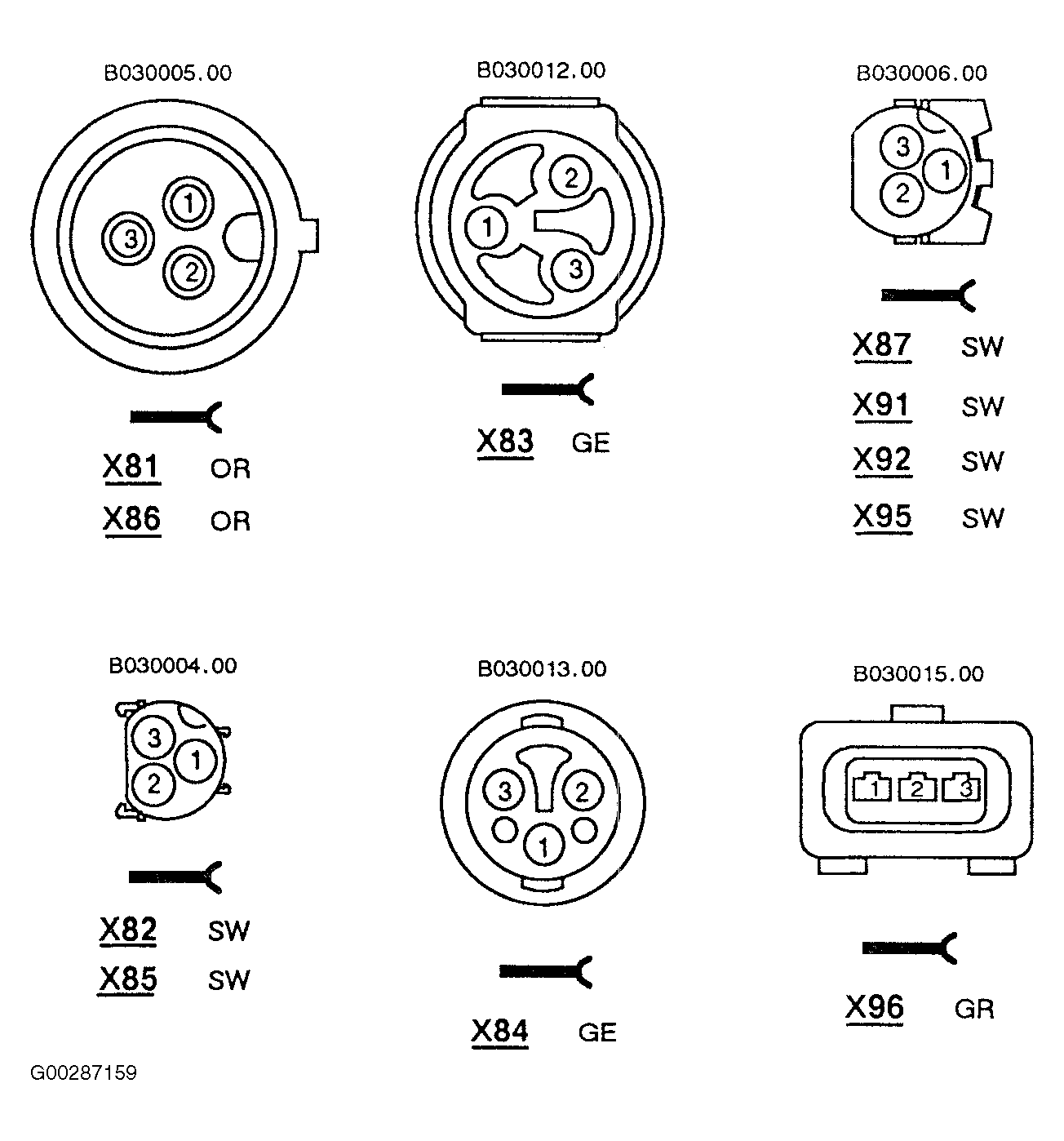

Fig 6: BMW Connector Identification (X81-X87, X91-X92, X95-X96)

Courtesy of BMW OF NORTH AMERICA, INC.

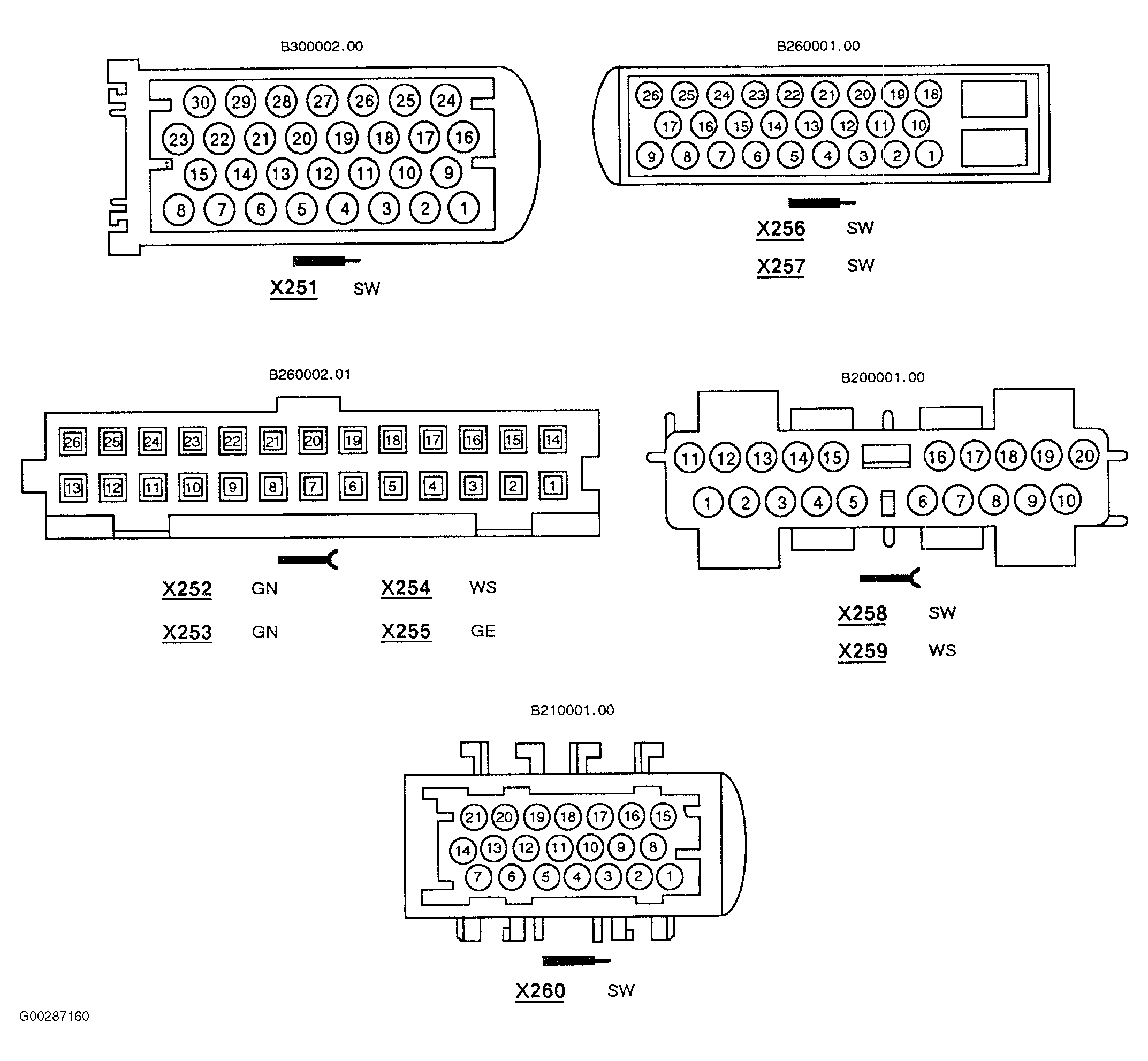

Fig 7: BMW Connector Identification (X251-X260)

Courtesy of BMW OF NORTH AMERICA, INC.

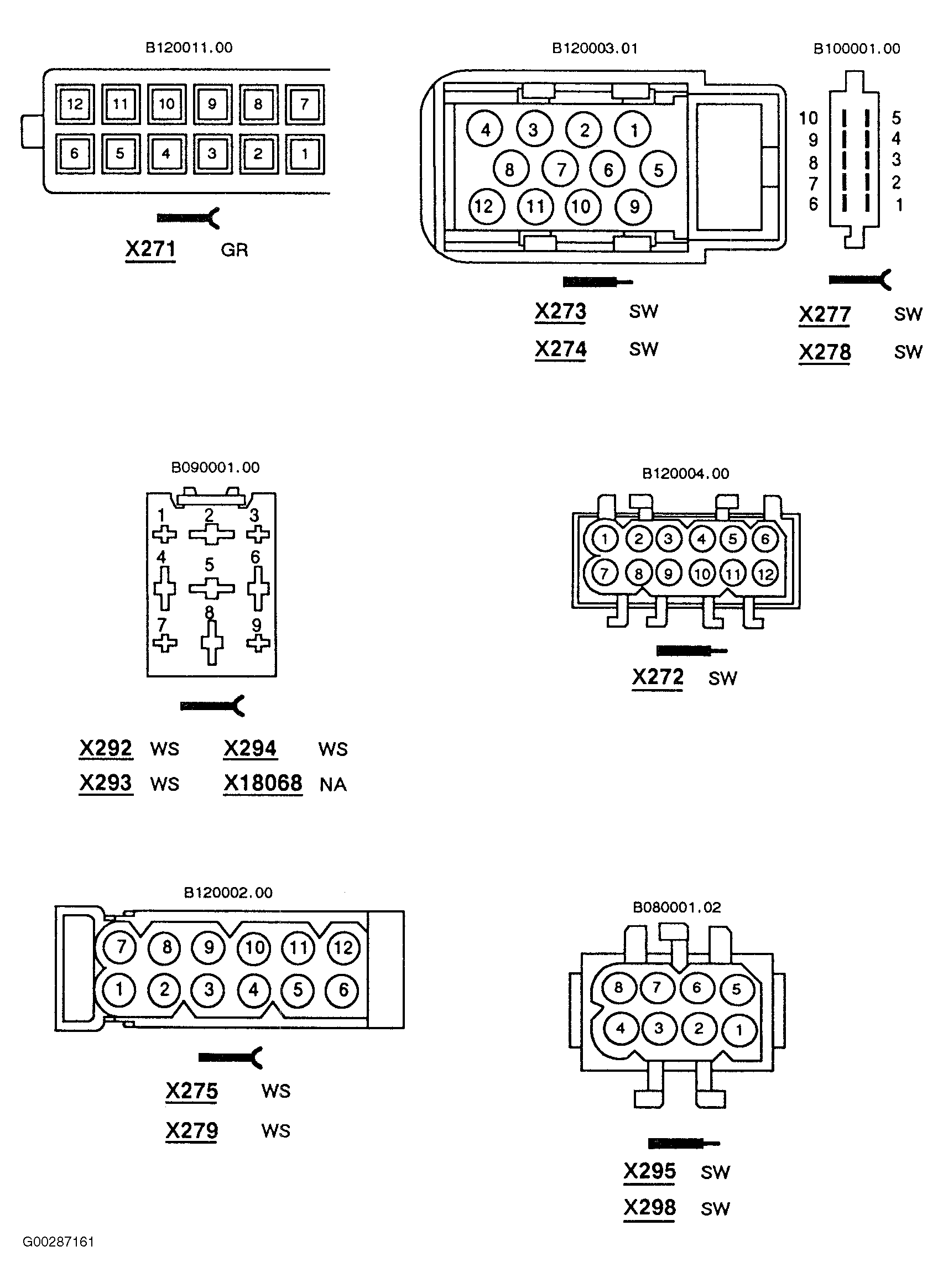

Fig 8: BMW Connector Identification (X271-X275, X277-X279, X292-X295, X298, X18068)

Courtesy of BMW OF NORTH AMERICA, INC.

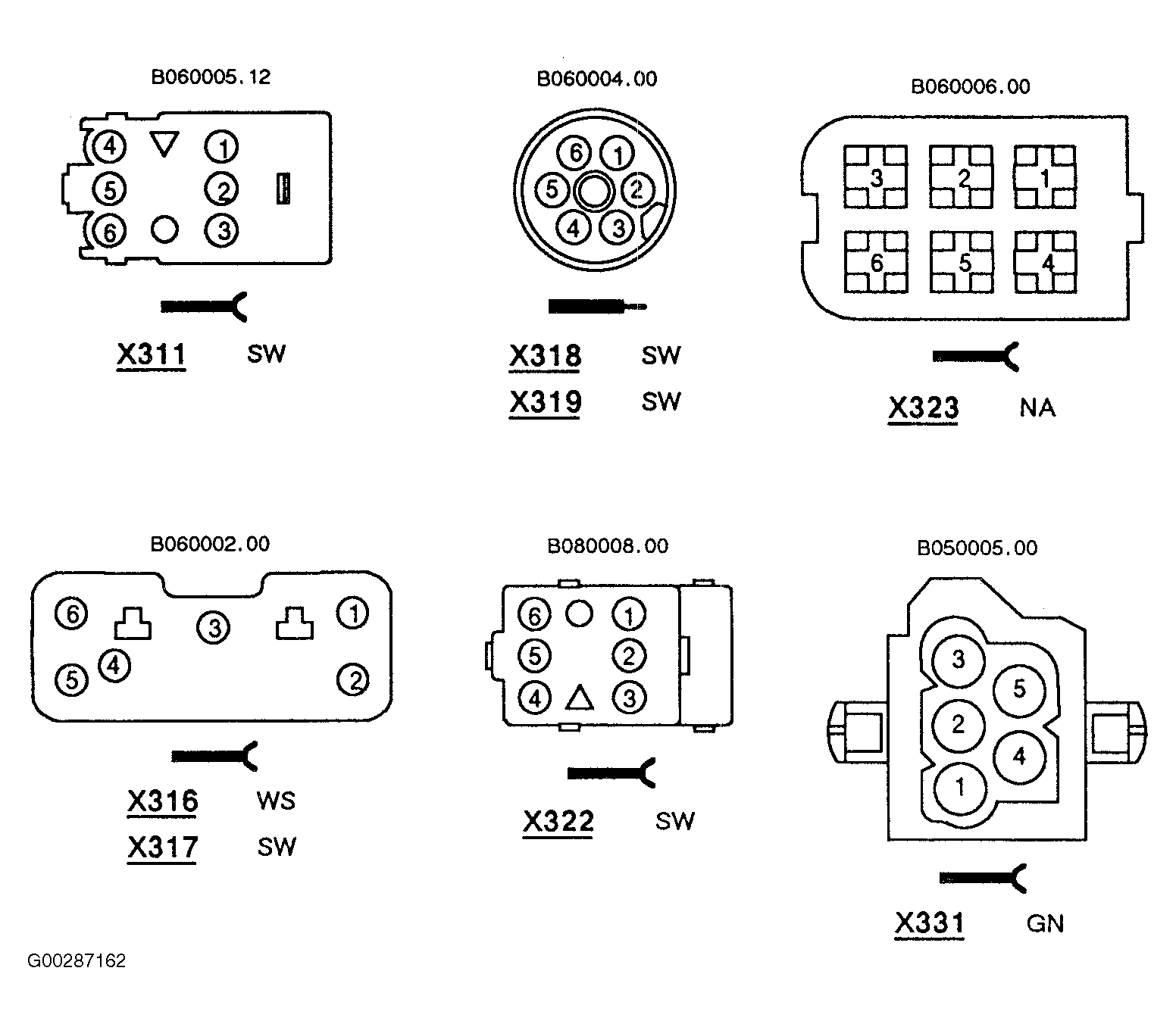

Fig 9: BMW Connector Identification (X311, X316-X319, X322-X323, X331)

Courtesy of BMW OF NORTH AMERICA, INC.

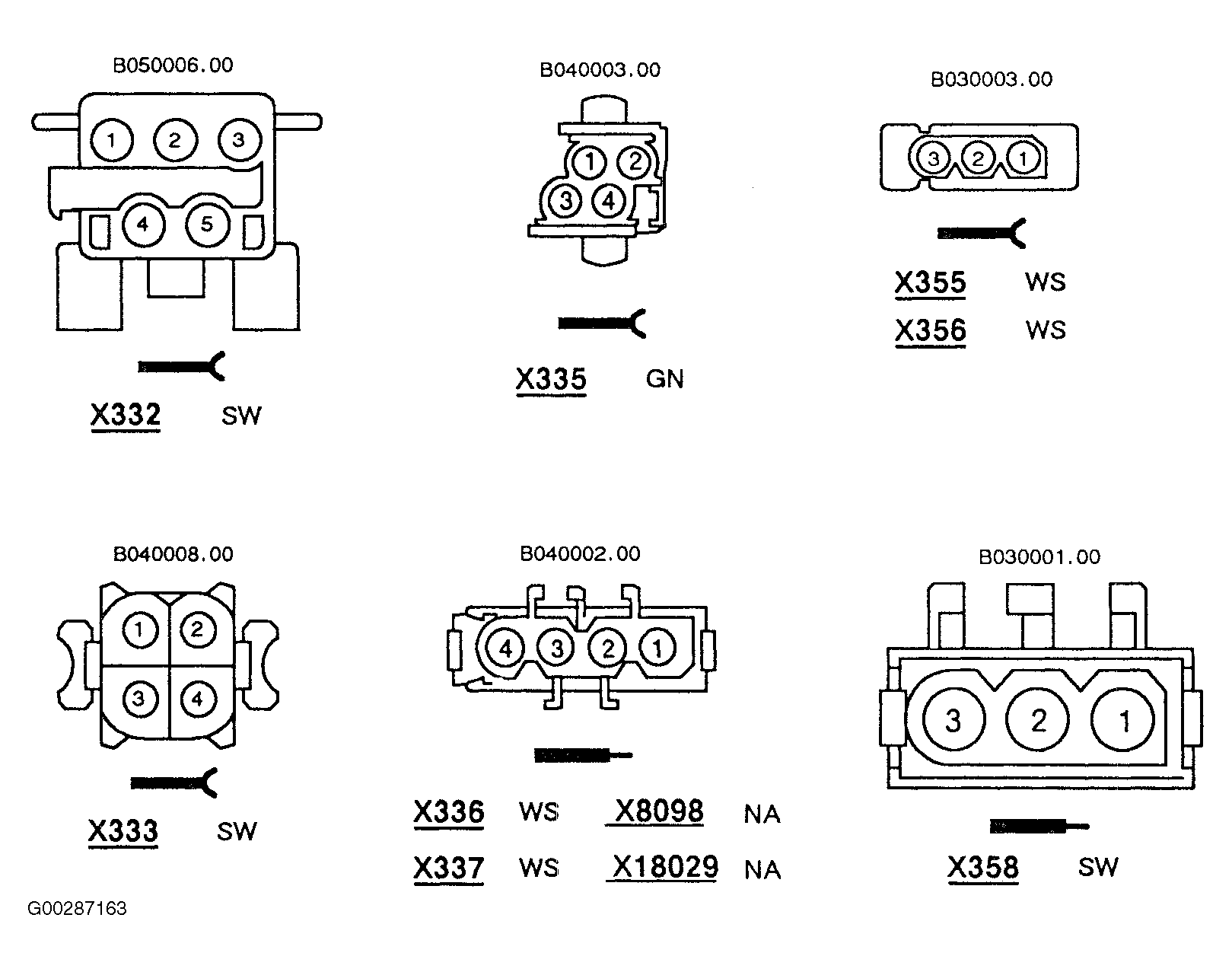

Fig 10: BMW Connector Identification (X332-X333, X335-X337, X355-X356, X358, X8098, X18029)

Courtesy of BMW OF NORTH AMERICA, INC.

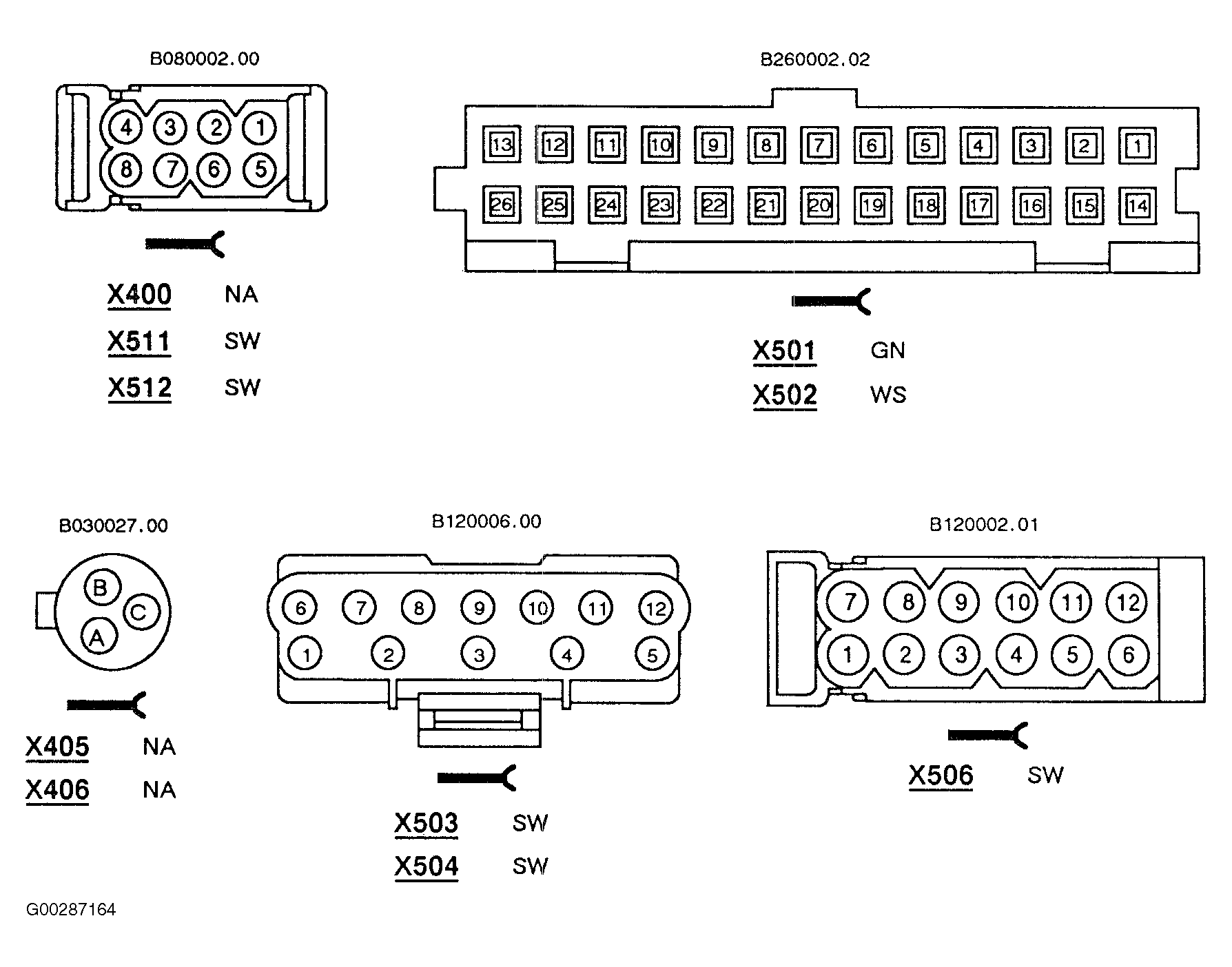

Fig 11: BMW Connector Identification (X400, X405-X406, X501-X504, X506, X511, X512)

Courtesy of BMW OF NORTH AMERICA, INC.

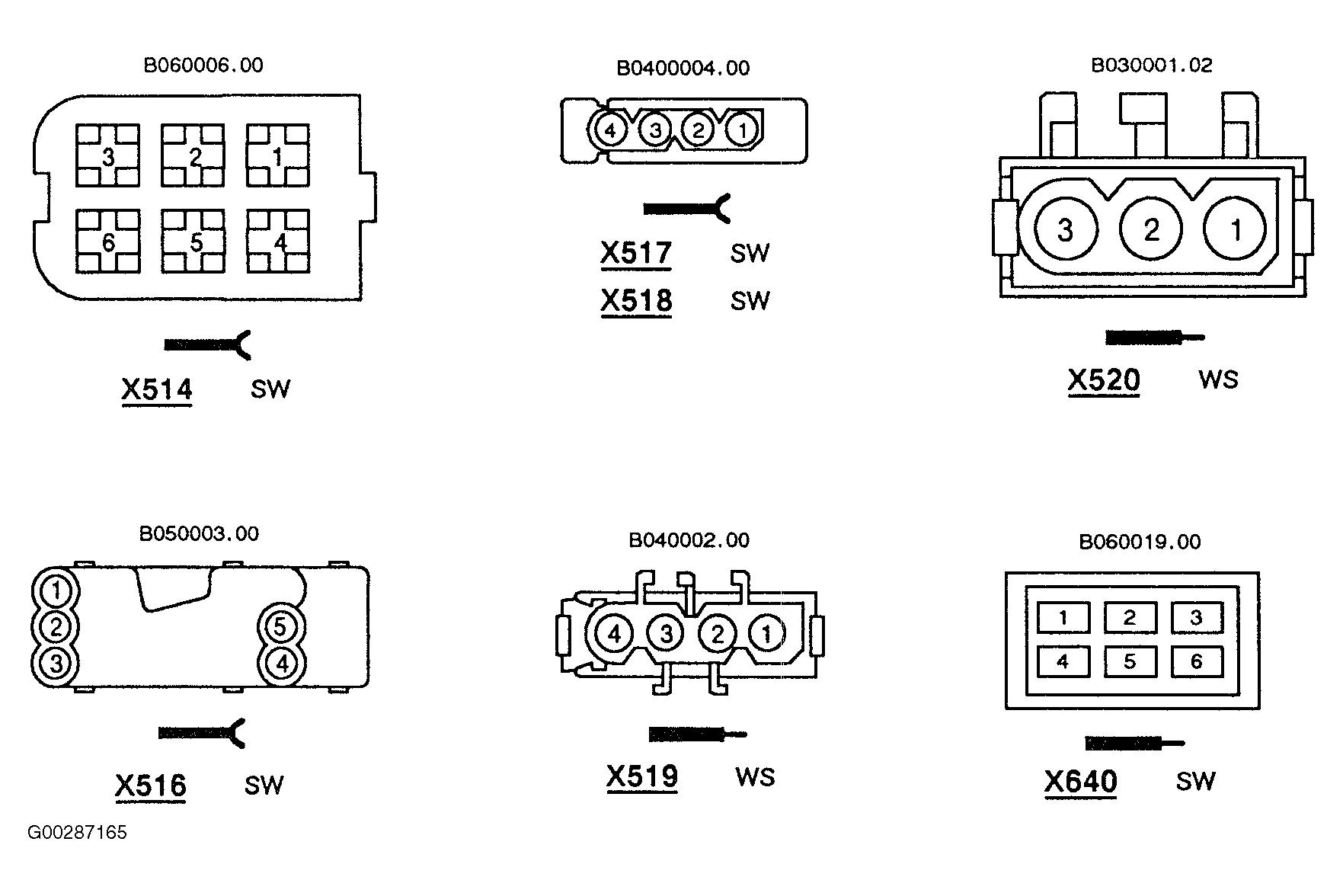

Fig 12: BMW Connector Identification (X514, X516-X520, X640)

Courtesy of BMW OF NORTH AMERICA, INC.

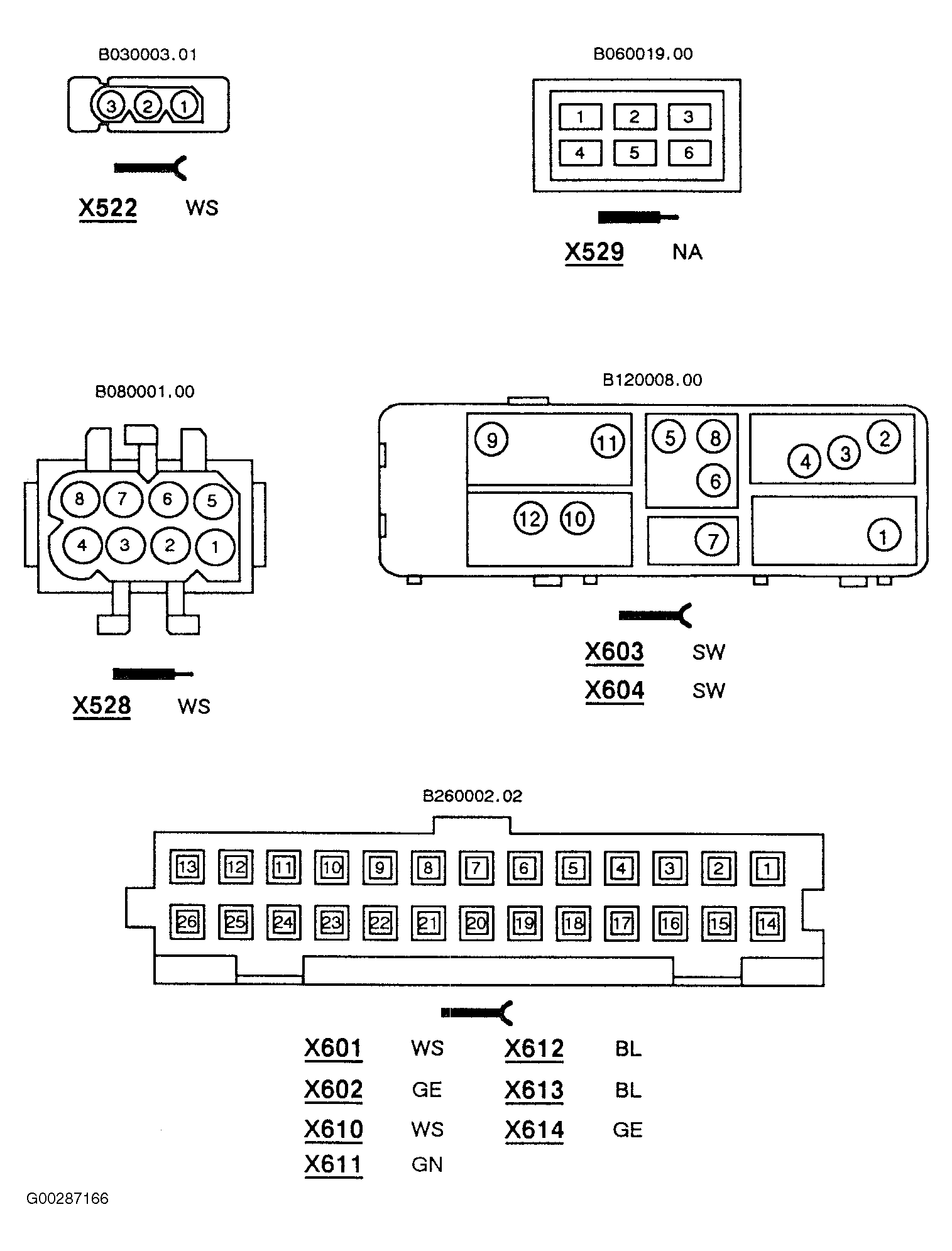

Fig 13: BMW Connector Identification (X522, X528-X529, X601-X604, X610-X614)

Courtesy of BMW OF NORTH AMERICA, INC.

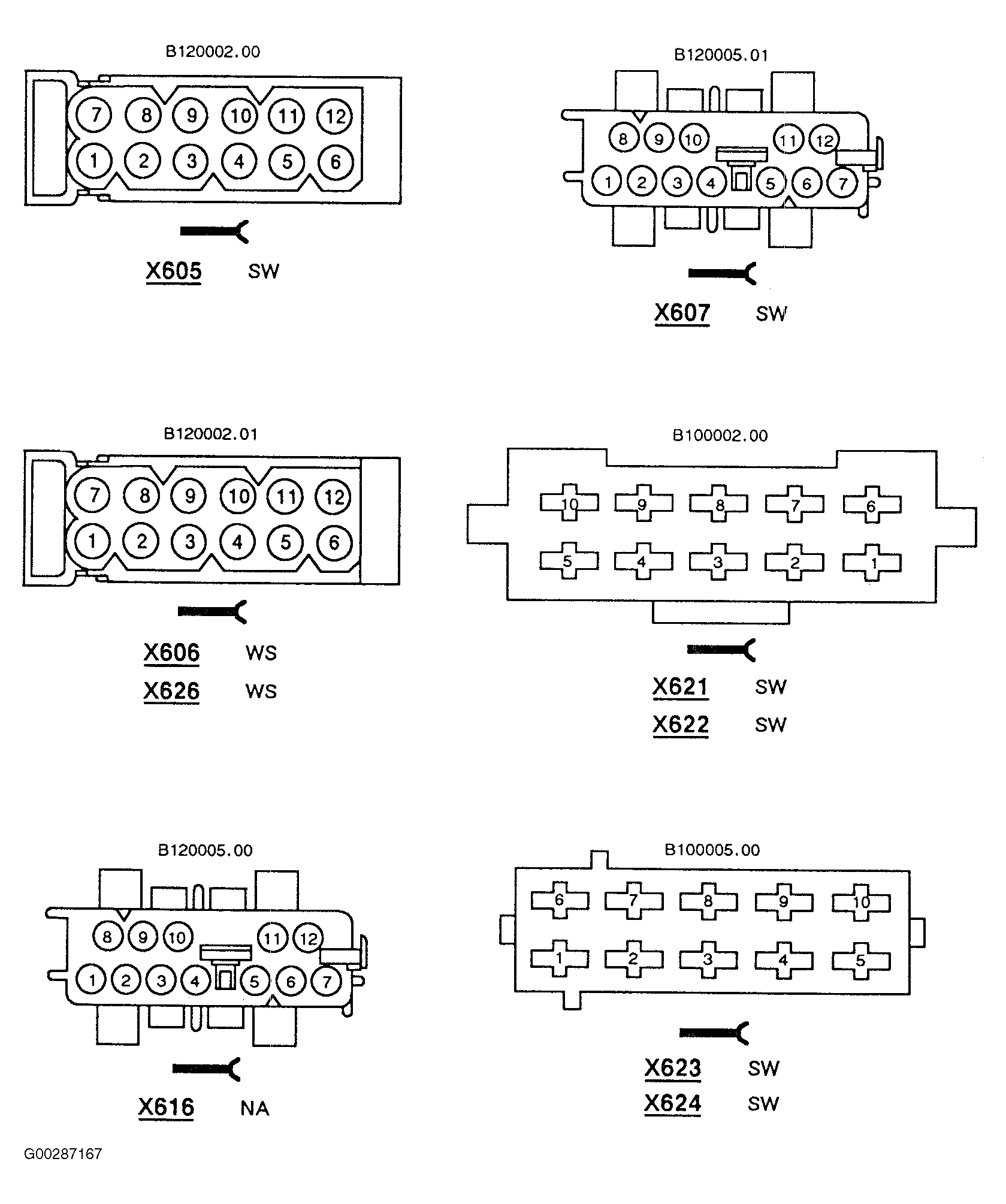

Fig 14: BMW Connector Identification (X605-X607, X616, X621-X624, X626)

Courtesy of BMW OF NORTH AMERICA, INC.

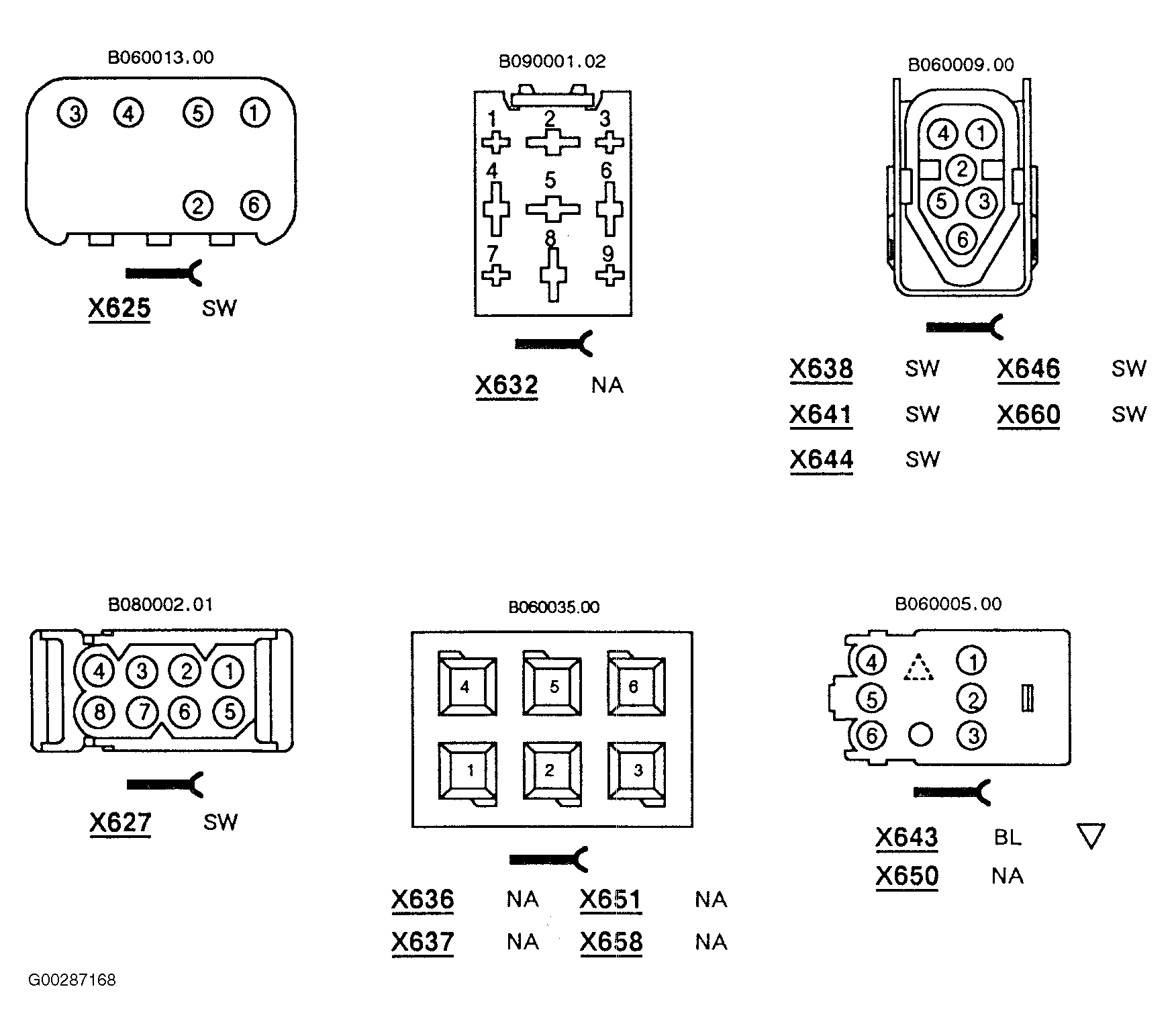

Fig 15: BMW Connector Identification (X625, X627, X632, X636-X638, X641, X643-X644, X646, X650-X651, X658, X660)

Courtesy of BMW OF NORTH AMERICA, INC.

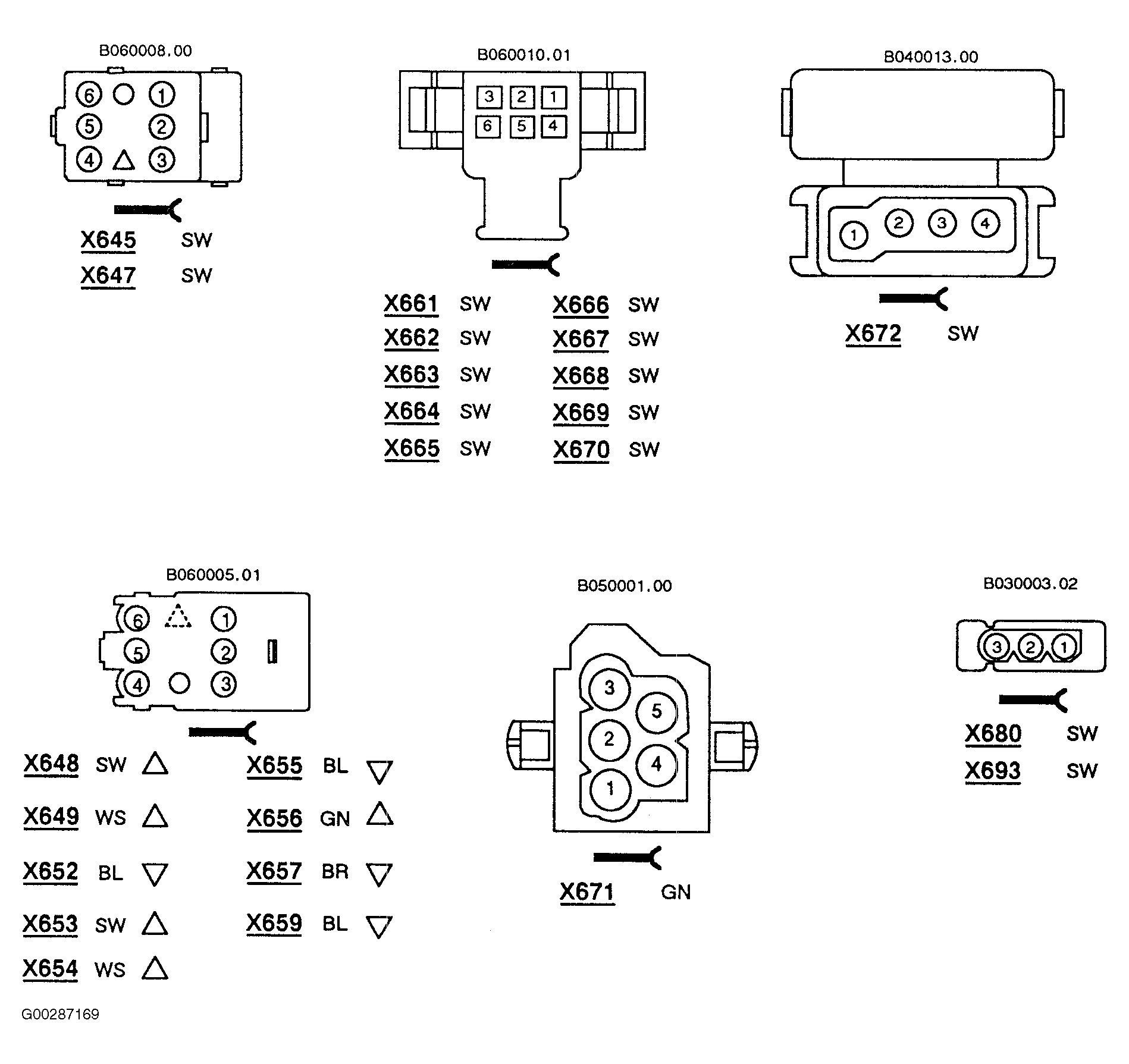

Fig 16: BMW Connector Identification (X645, X647-X649, X652-X657, X659, X661-672, X680, X693)

Courtesy of BMW OF NORTH AMERICA, INC.

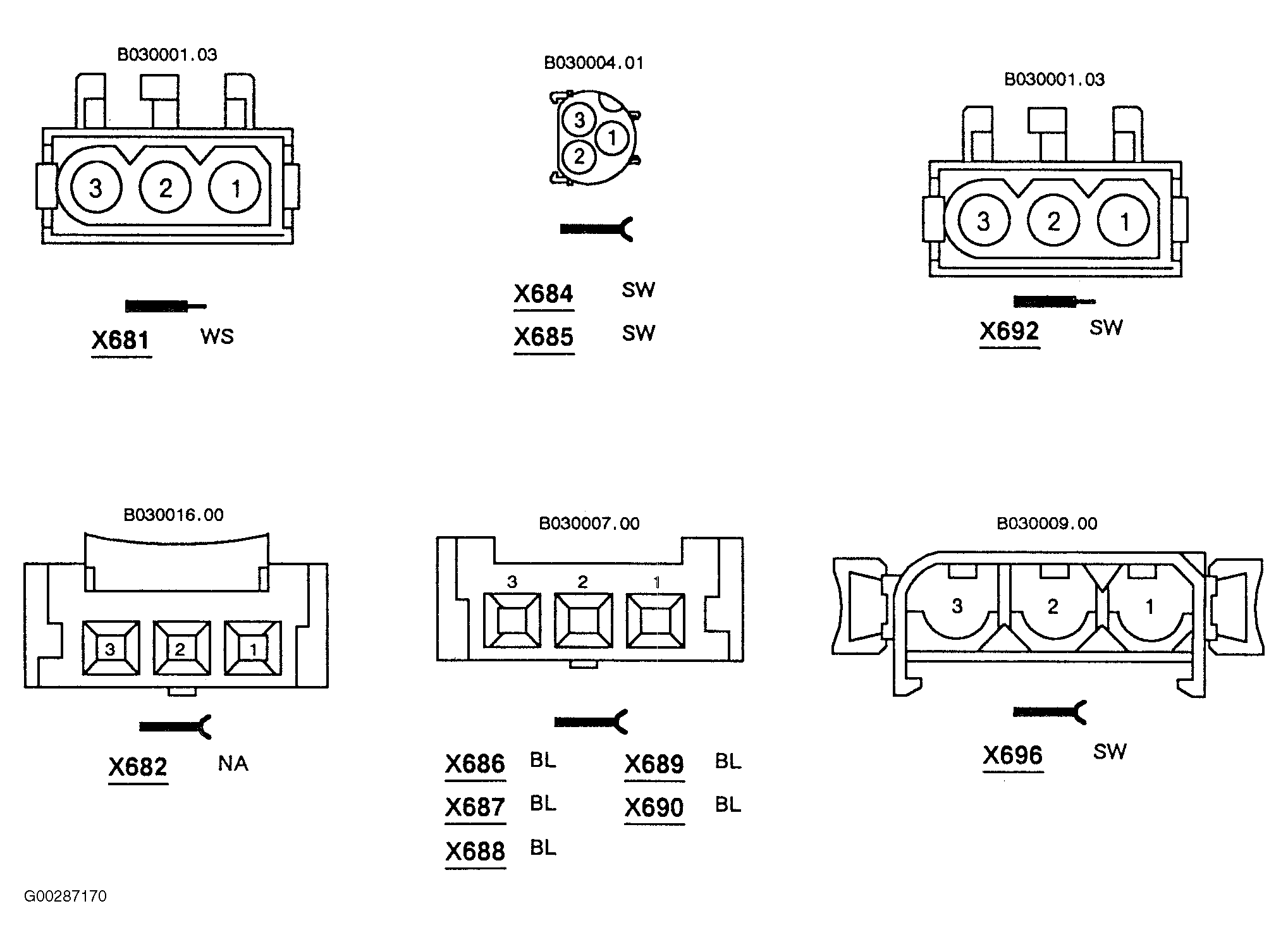

Fig 17: BMW Connector Identification (X681-X682, X684-X690, X692, X696)

Courtesy of BMW OF NORTH AMERICA, INC.

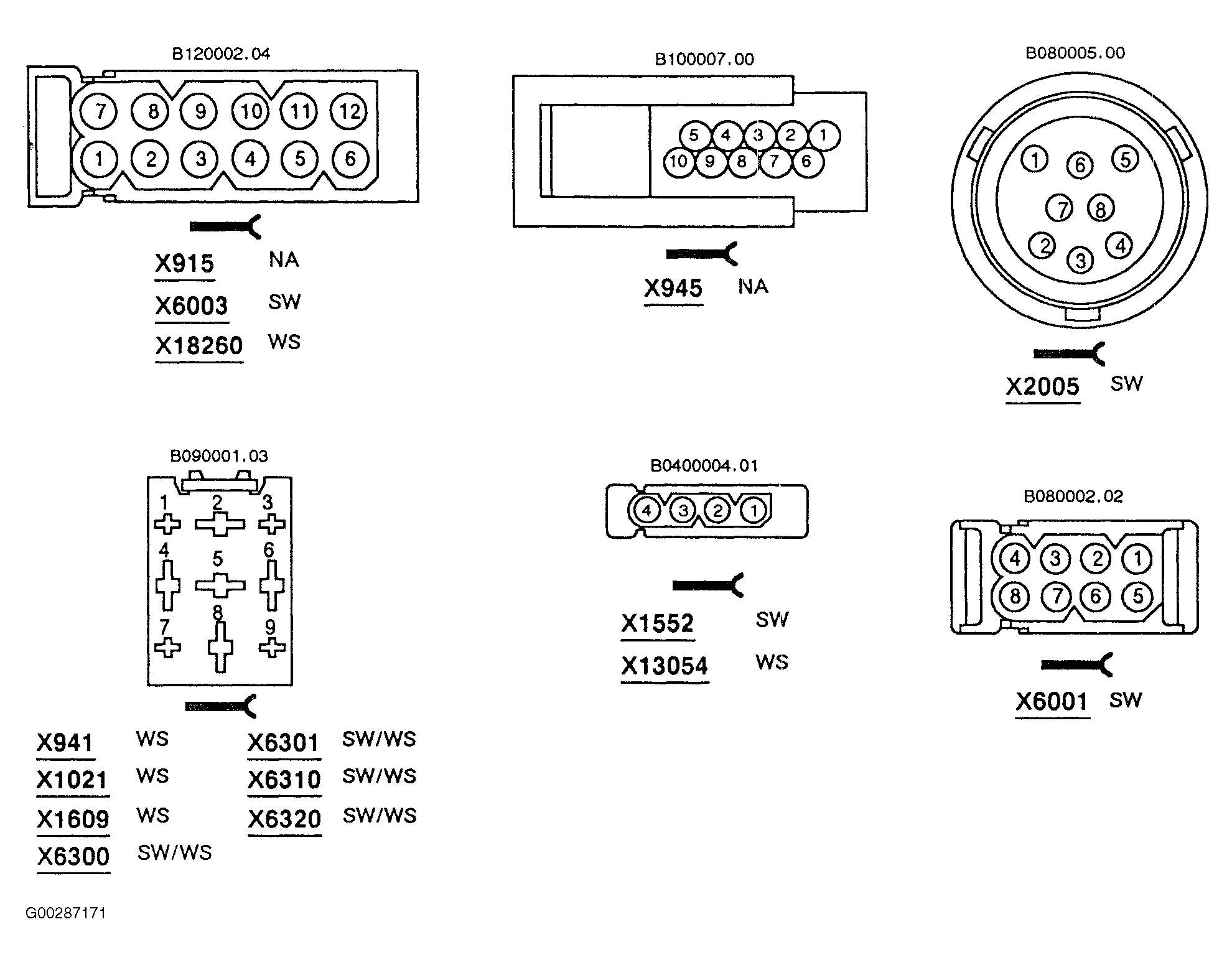

Fig 18: BMW Connector Identification (X915, X941, X945, X1021, X1552, X1609, X2005, X6001, X6003, X6300-X6301, X6310, X6320, X13054, X18260

Courtesy of BMW OF NORTH AMERICA, INC.

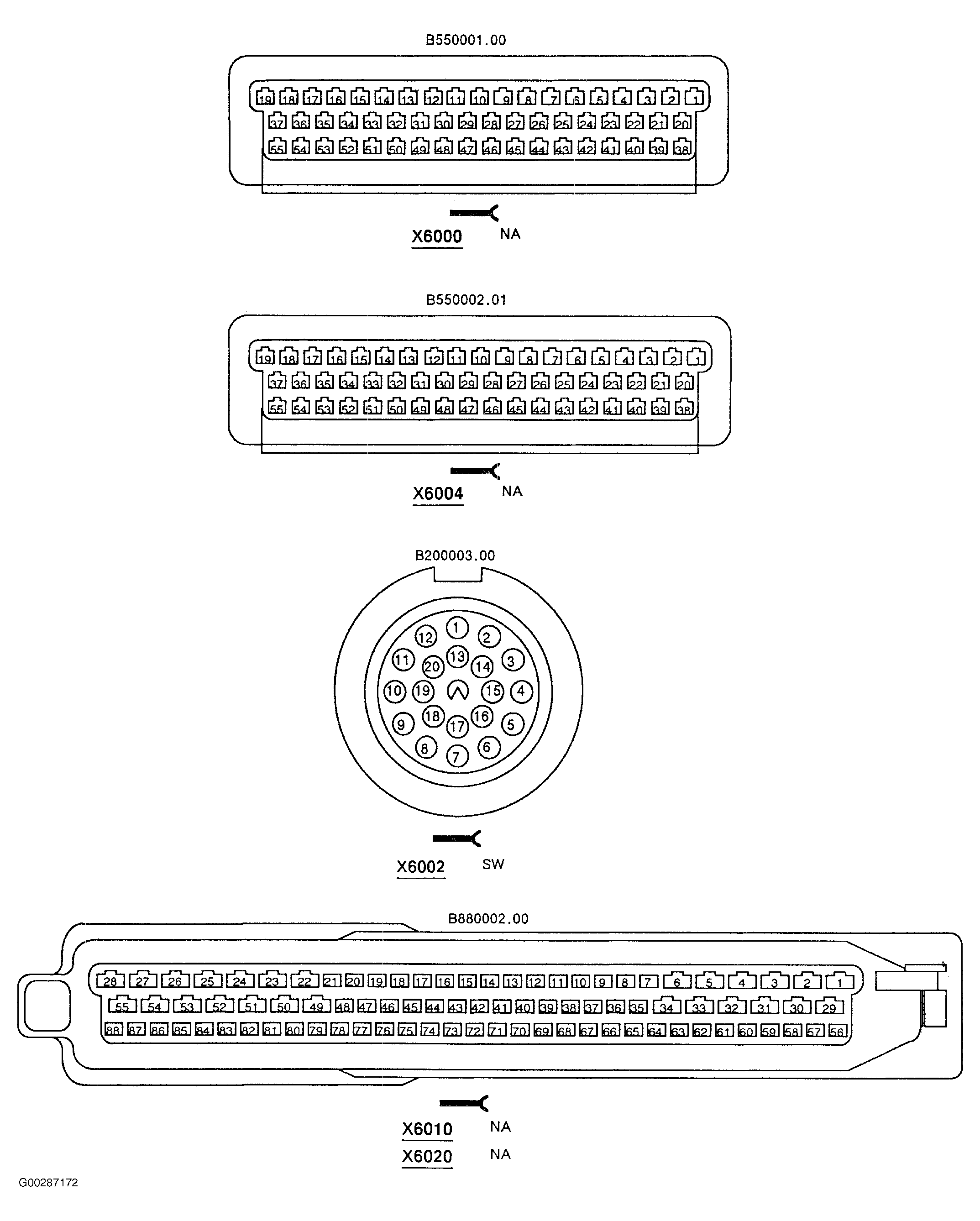

Fig 19: BMW Connector Identification (X6000, X6002, X6004, X6010, X6020)

Courtesy of BMW OF NORTH AMERICA, INC.

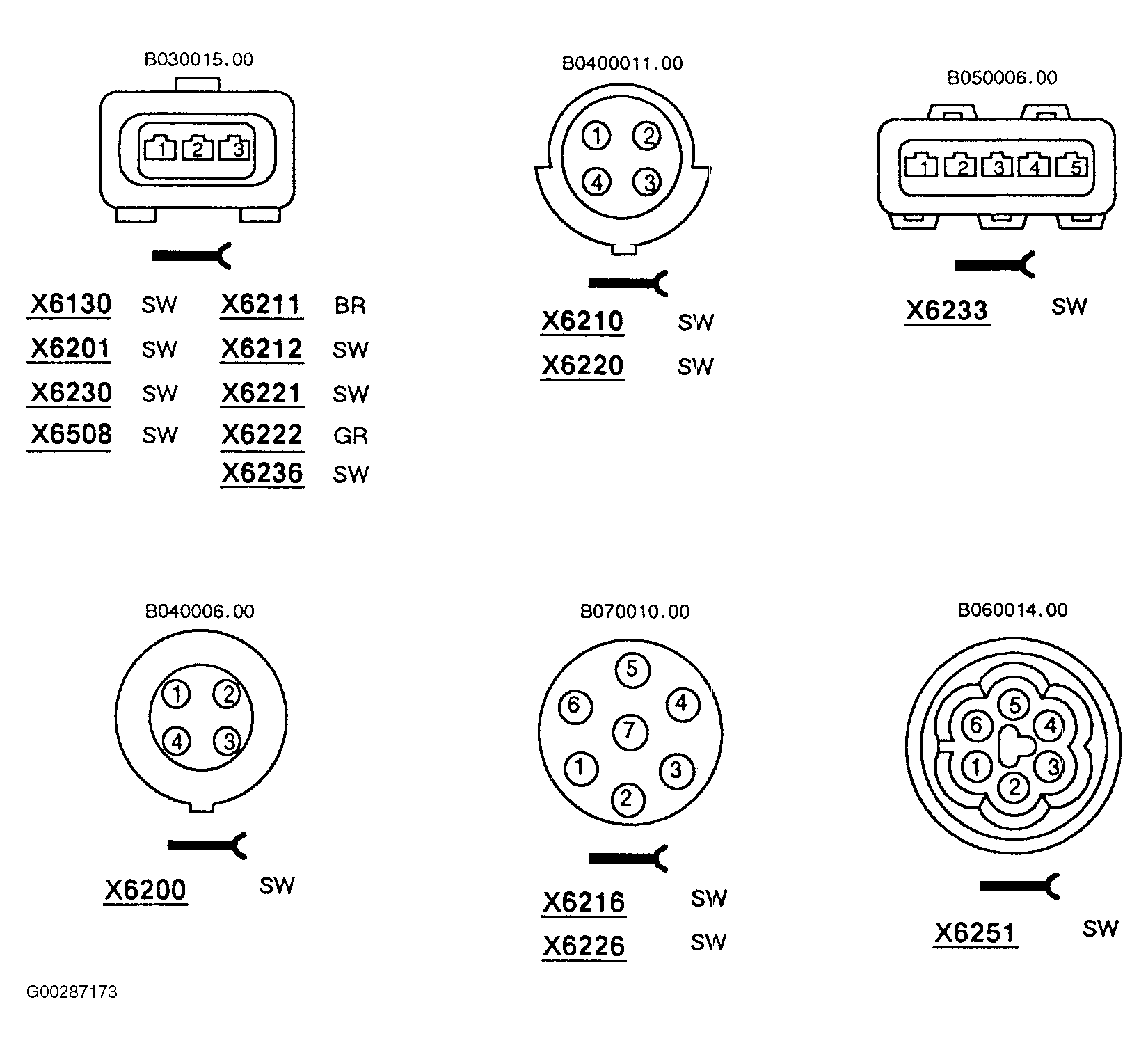

Fig 20: BMW Connector Identification (X6130, X6200-X6201, X6210, X6216, X6220, X6226, X6230, X6233, X6508, X6211-X6212, X6221-X6222, X6236, X6251)

Courtesy of BMW OF NORTH AMERICA, INC.

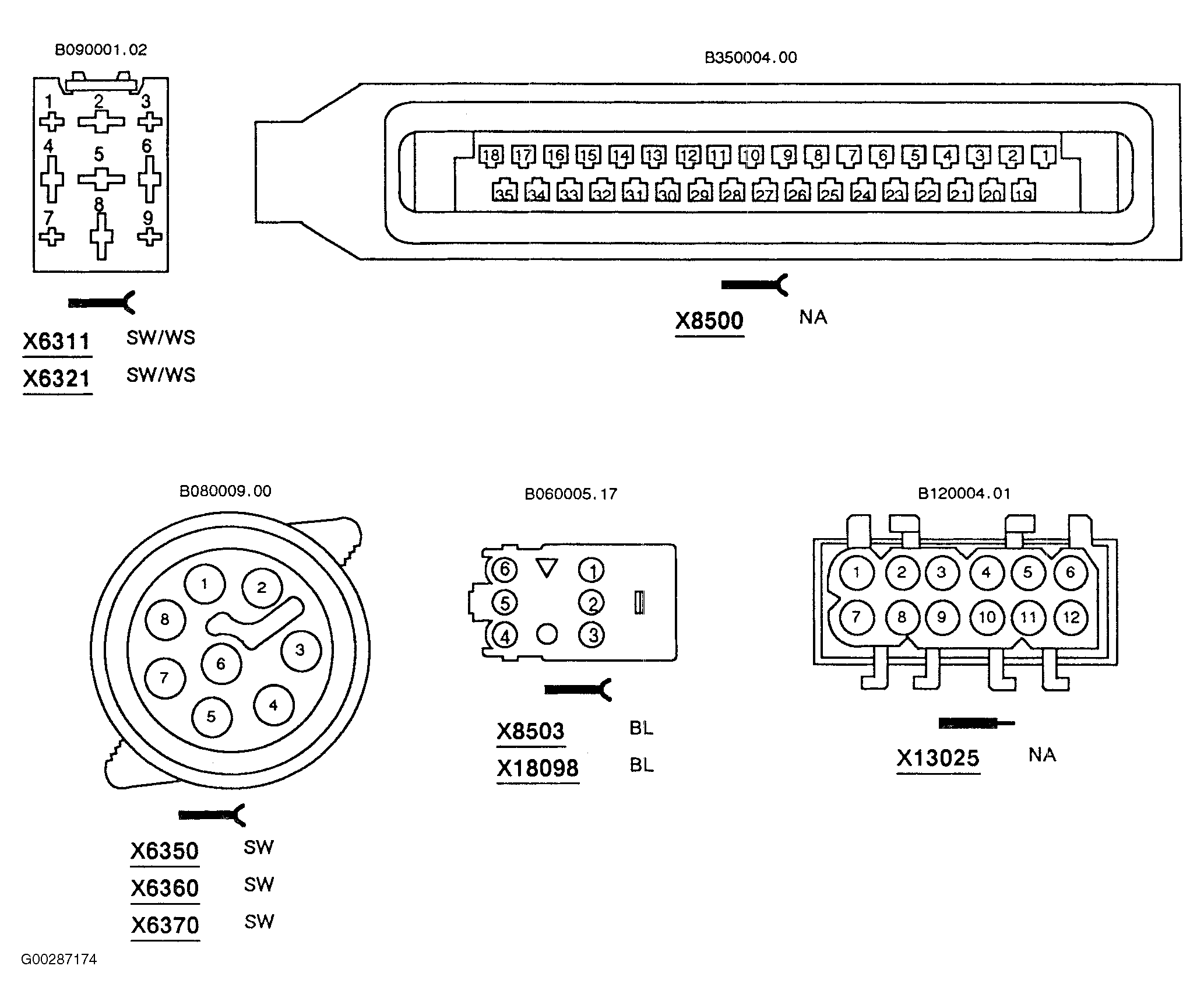

Fig 21: BMW Connector Identification (X6311, X6321, X6350, X6360, X6370, X8500, X8503, X13025, X18098)

Courtesy of BMW OF NORTH AMERICA, INC.

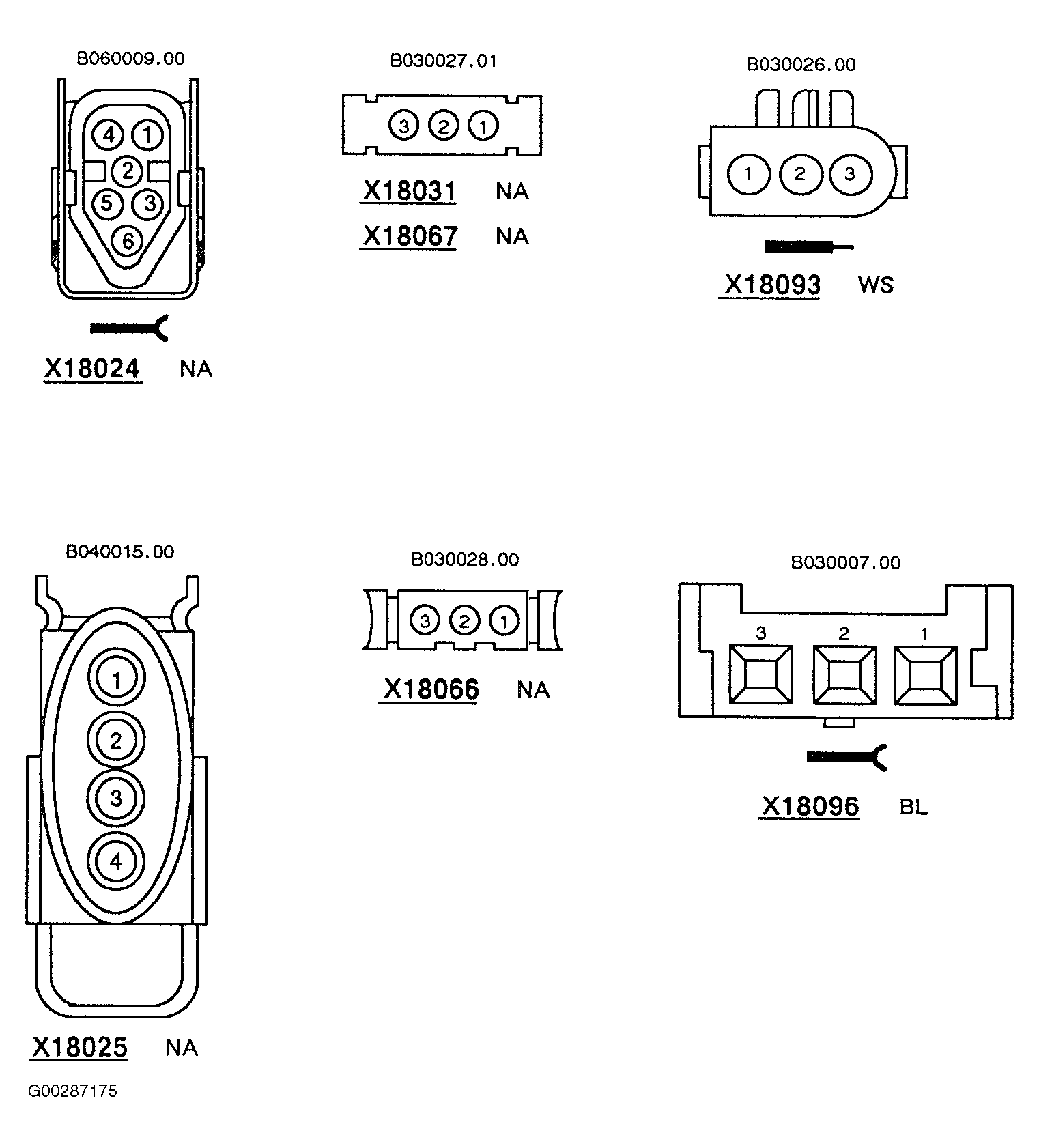

Fig 22: BMW Connector Identification (X18024-X18025, X18031, X18067, X18066, X18093, X18095)

Courtesy of BMW OF NORTH AMERICA, INC.

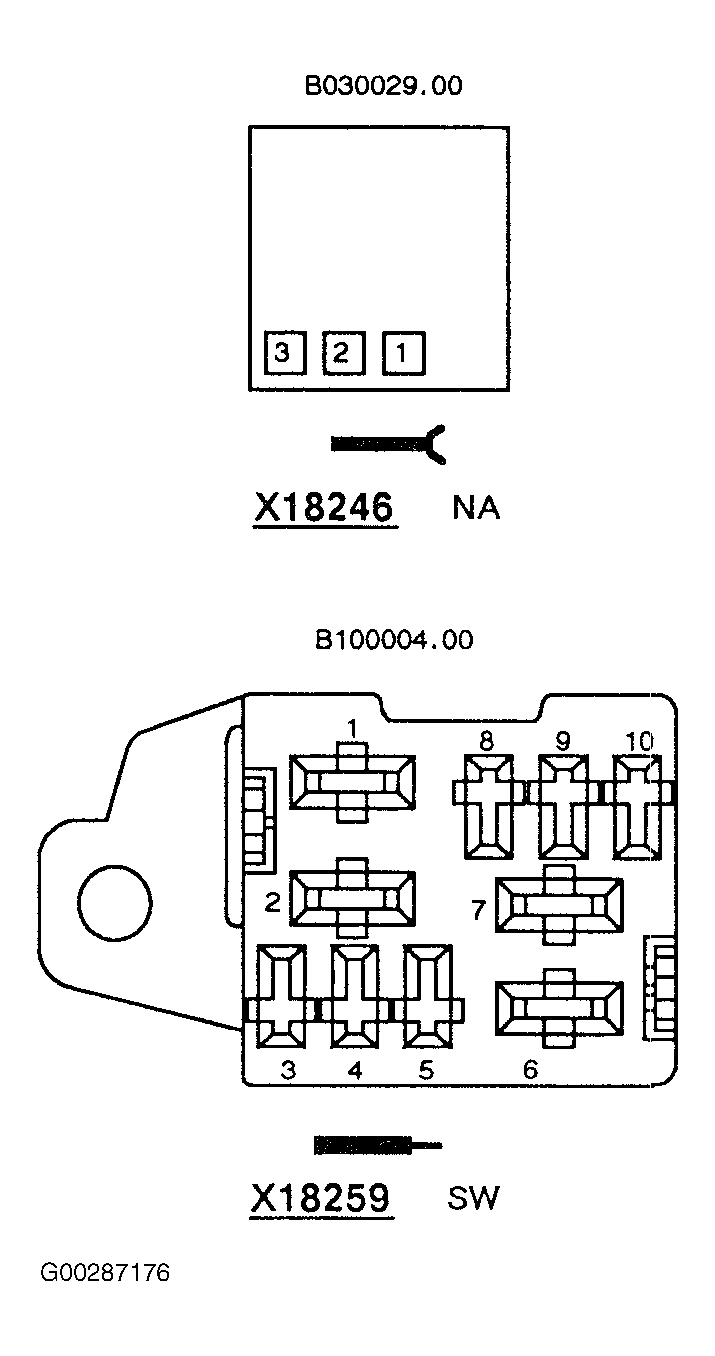

Fig 23: BMW Connector Identification (X18246, X18259)

Courtesy of BMW OF NORTH AMERICA, INC.
