Wiring Diagrams: 850

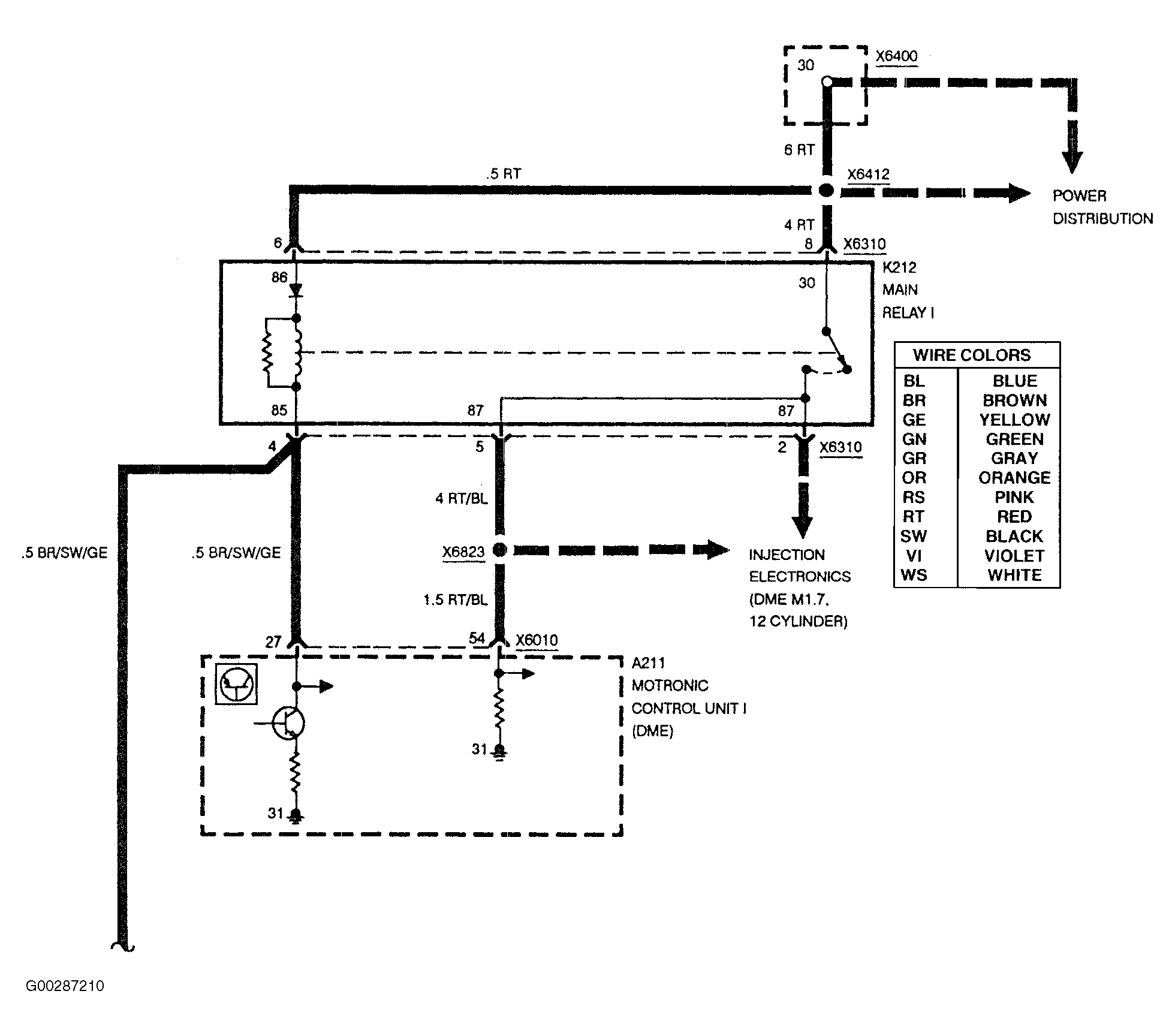

Fig 1: Electronic Throttle Control Wiring Diagram - 8 Series (1 Of 11)

G00287210

Courtesy of BMW OF NORTH AMERICA, INC.

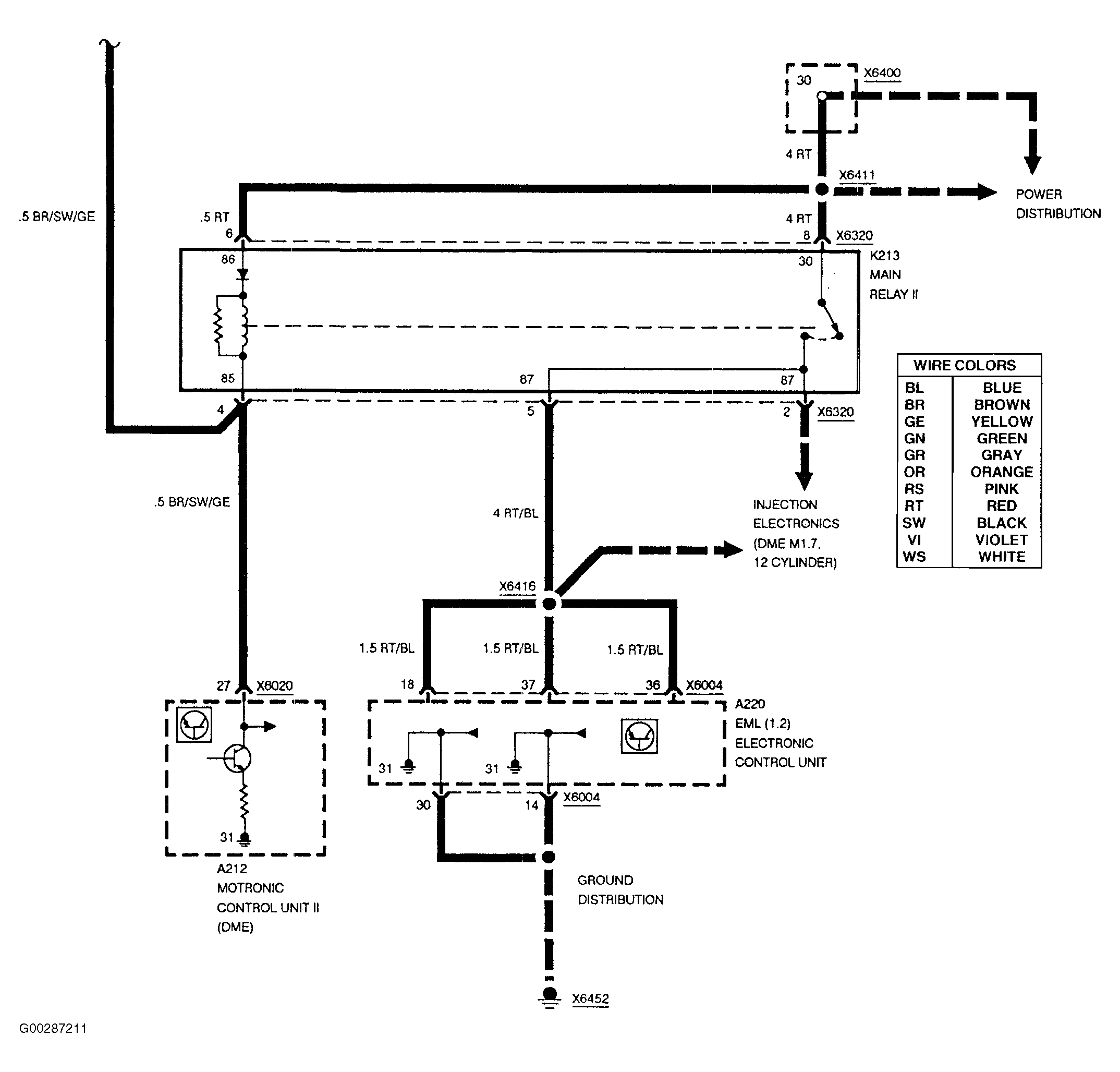

Fig 2: Electronic Throttle Control Wiring Diagram - 8 Series (2 Of 11)

G00287211

Courtesy of BMW OF NORTH AMERICA, INC.

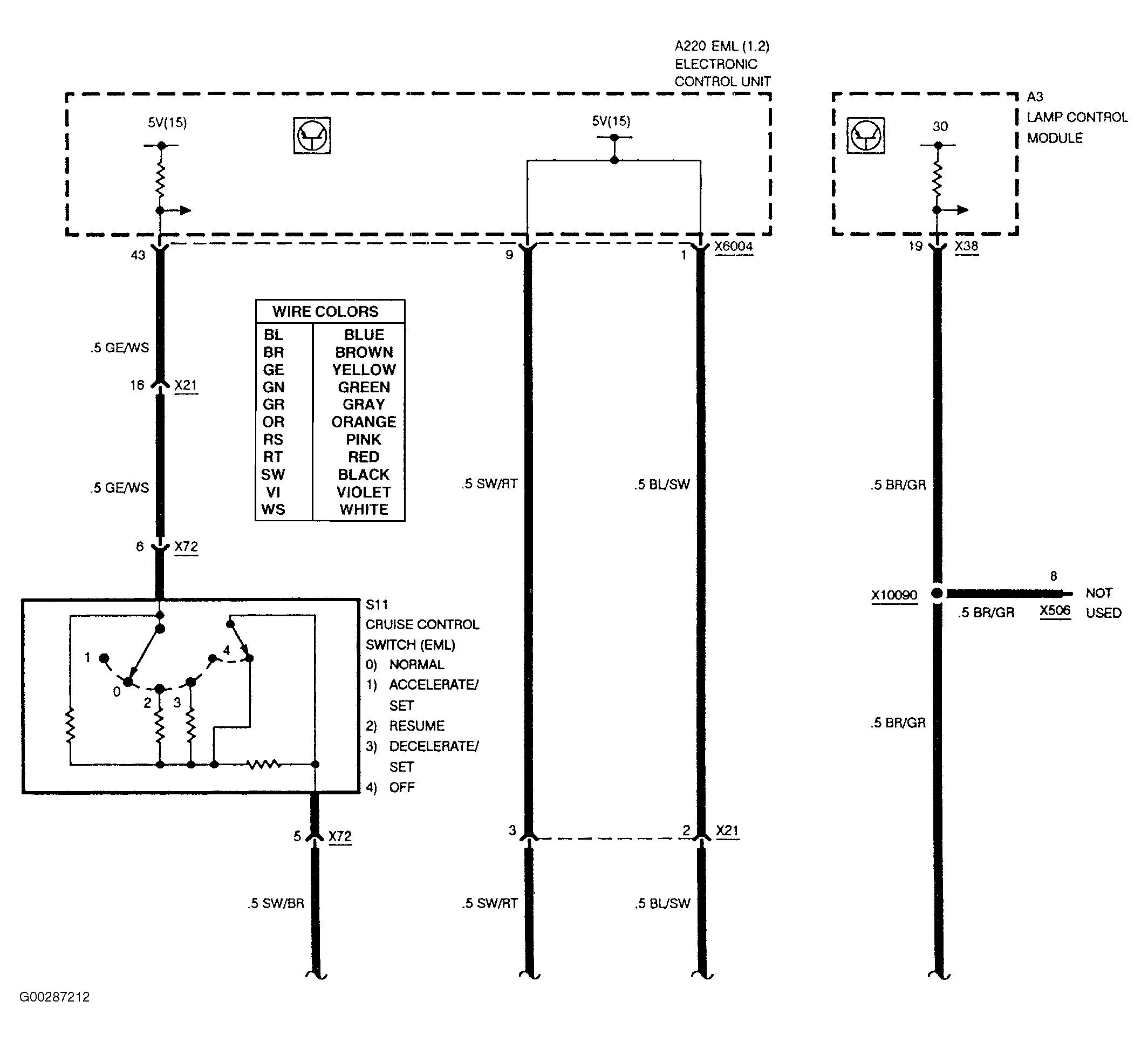

Fig 3: Electronic Throttle Control Wiring Diagram - 8 Series (3 Of 11)

G00287212

Courtesy of BMW OF NORTH AMERICA, INC.

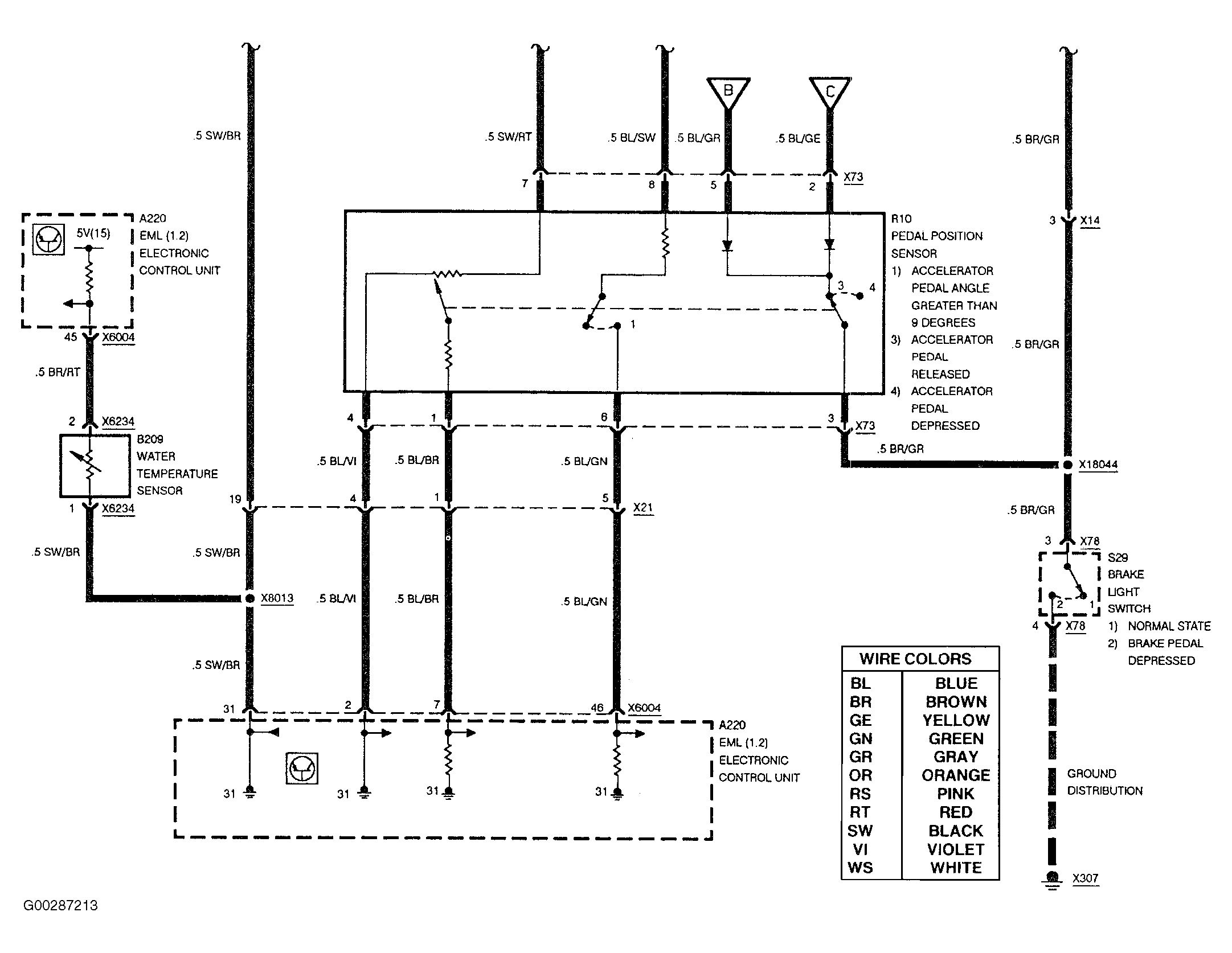

Fig 4: Electronic Throttle Control Wiring Diagram - 8 Series (4 Of 11)

G00287213

Courtesy of BMW OF NORTH AMERICA, INC.

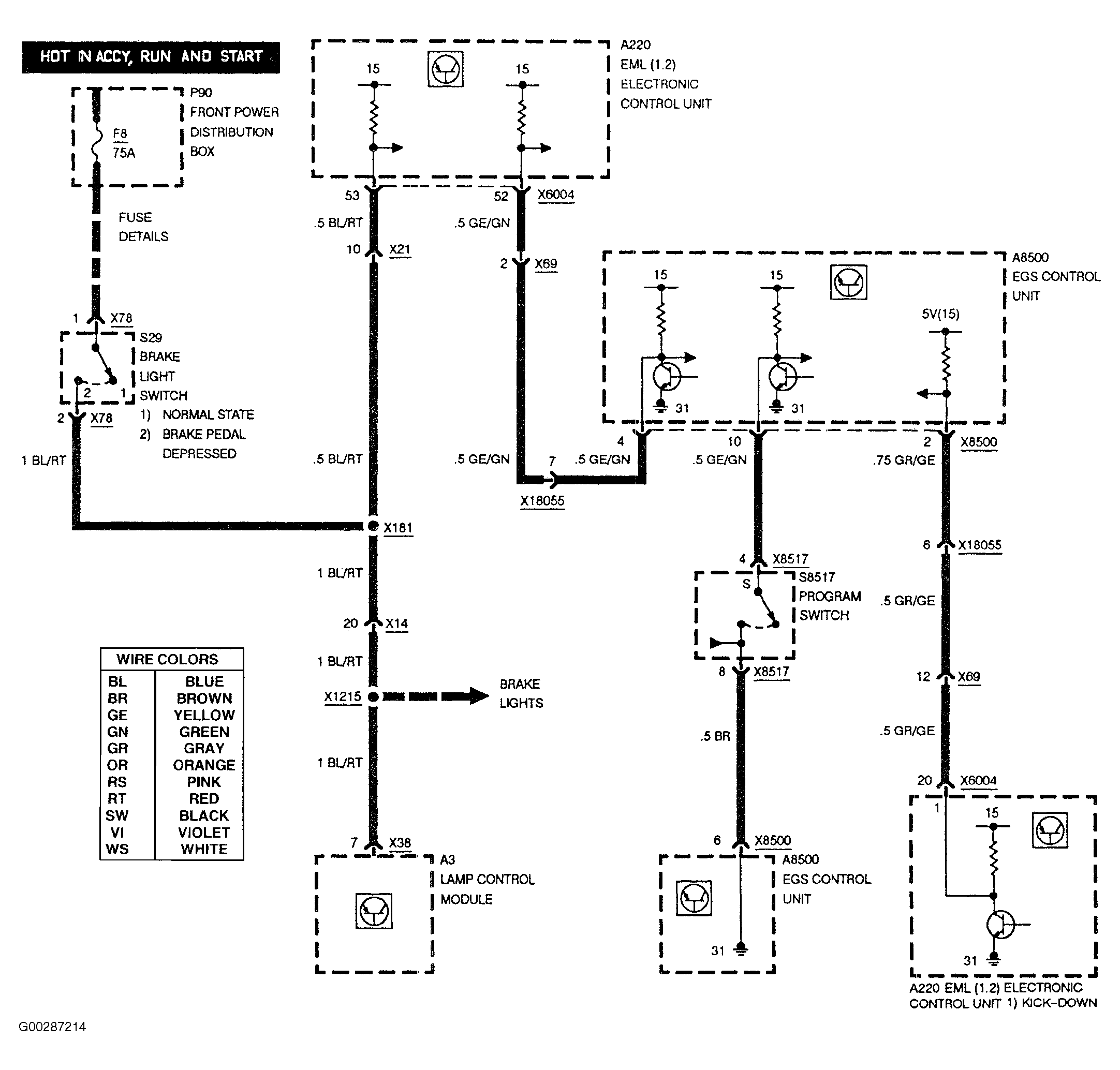

Fig 5: Electronic Throttle Control Wiring Diagram - 8 Series (5 Of 11)

G00287214

Courtesy of BMW OF NORTH AMERICA, INC.

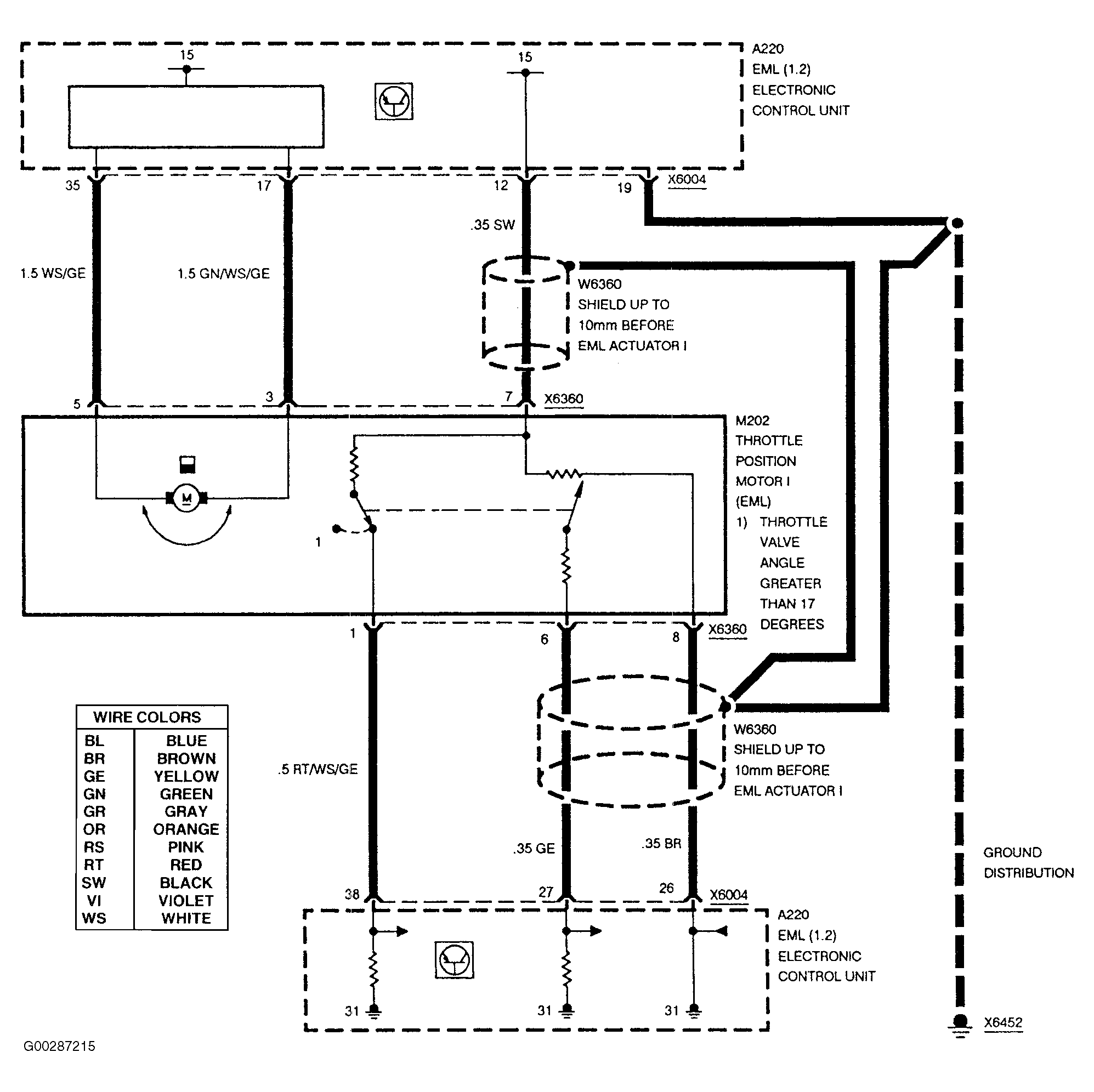

Fig 6: Electronic Throttle Control Wiring Diagram - 8 Series (6 Of 11)

G00287215

Courtesy of BMW OF NORTH AMERICA, INC.

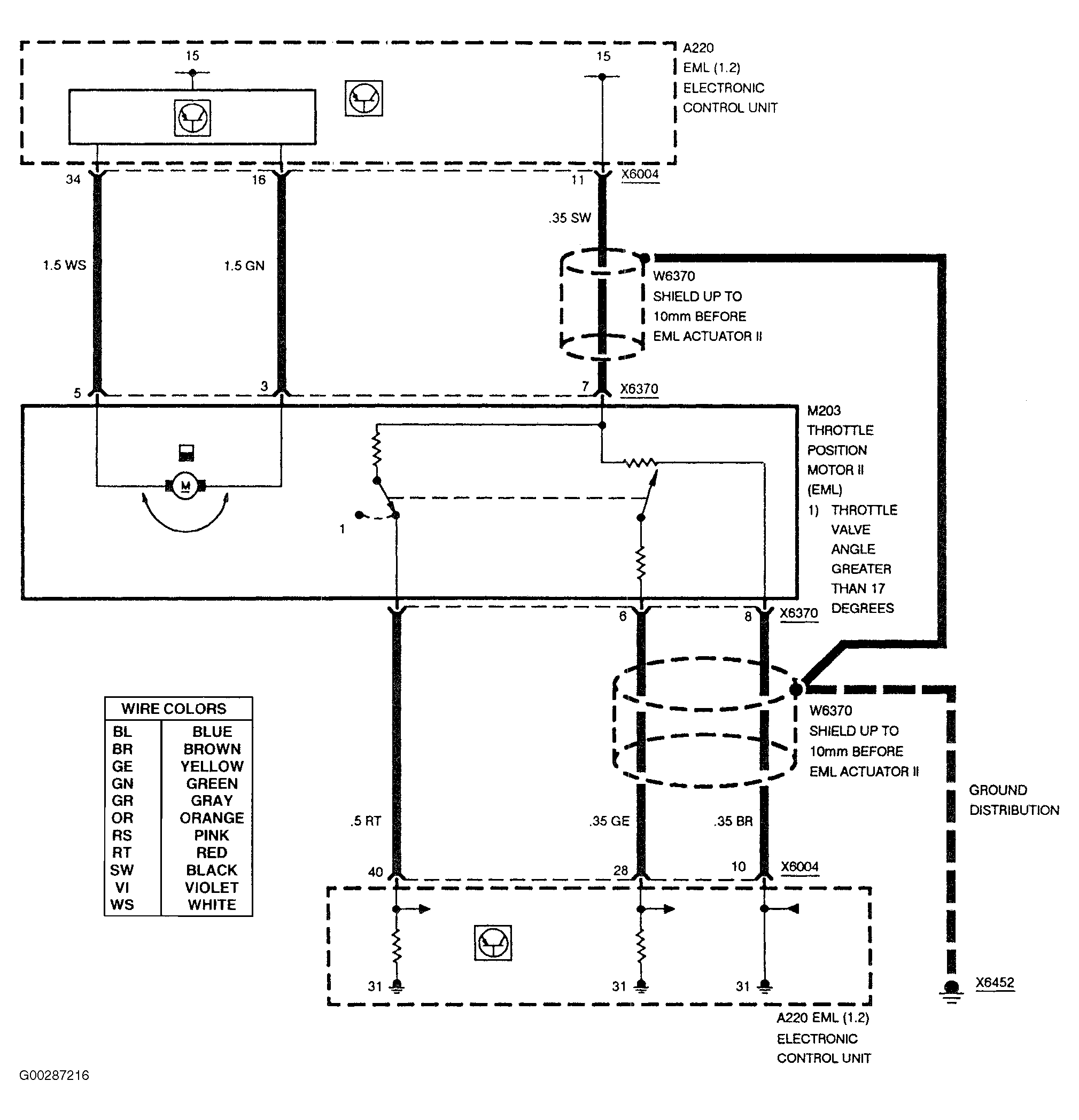

Fig 7: Electronic Throttle Control Wiring Diagram - 8 Series (7 Of 11)

G00287216

Courtesy of BMW OF NORTH AMERICA, INC.

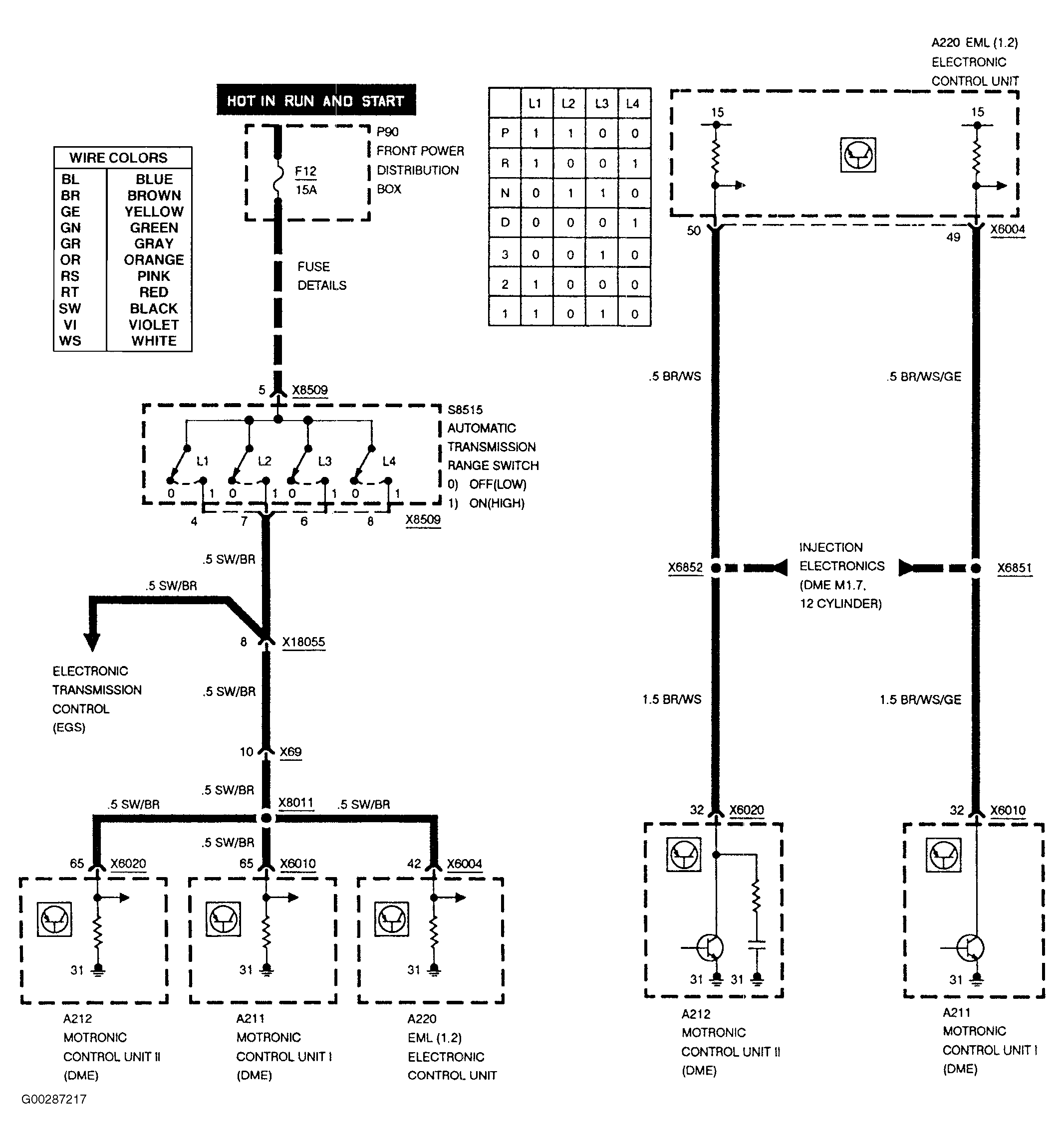

Fig 8: Electronic Throttle Control Wiring Diagram - 8 Series (8 Of 11)

G00287217

Courtesy of BMW OF NORTH AMERICA, INC.

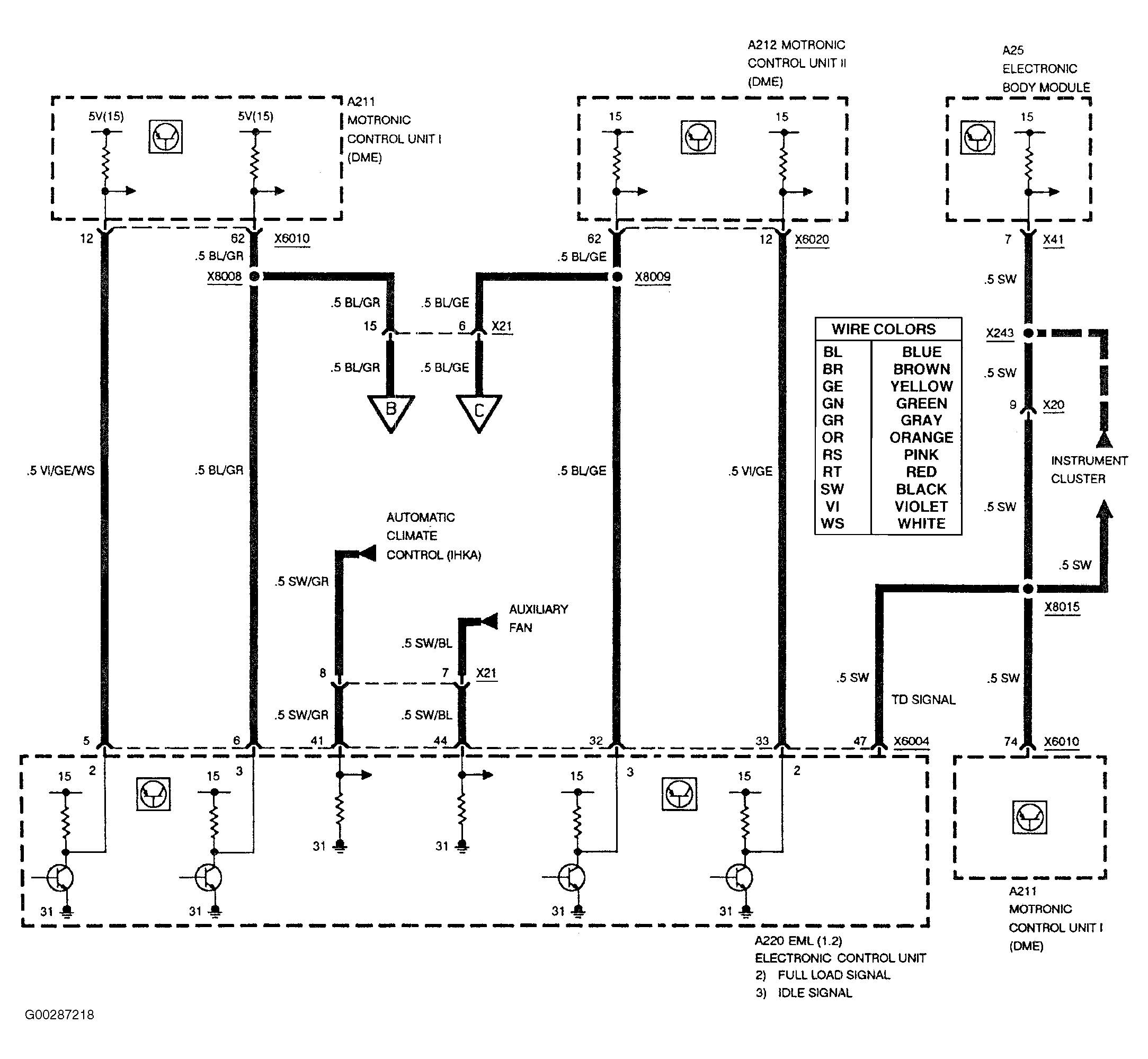

Fig 9: Electronic Throttle Control Wiring Diagram - 8 Series (9 Of 11)

G00287218

Courtesy of BMW OF NORTH AMERICA, INC.

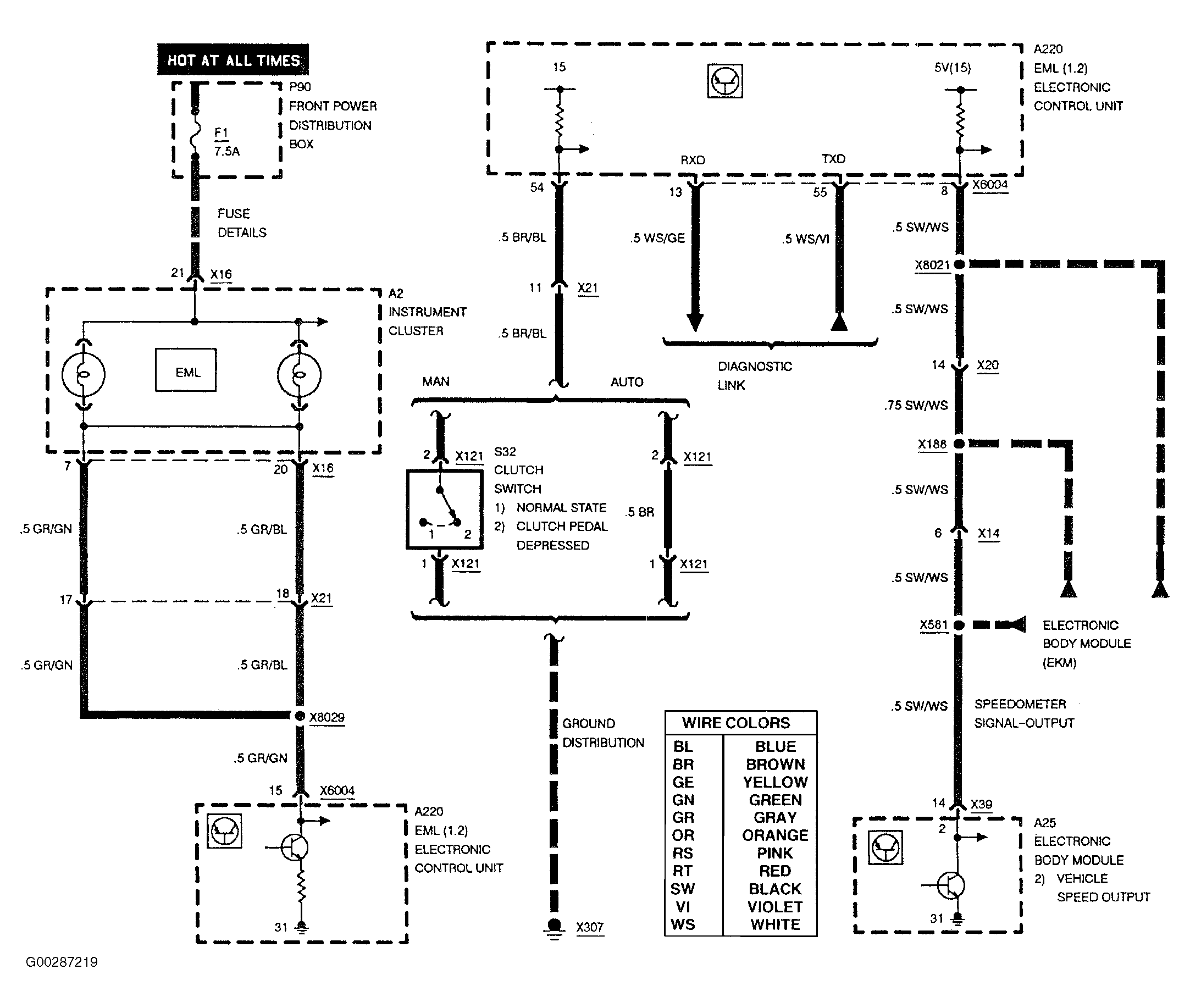

Fig 10: Electronic Throttle Control Wiring Diagram - 8 Series (10 Of 11)

G00287219

Courtesy of BMW OF NORTH AMERICA, INC.

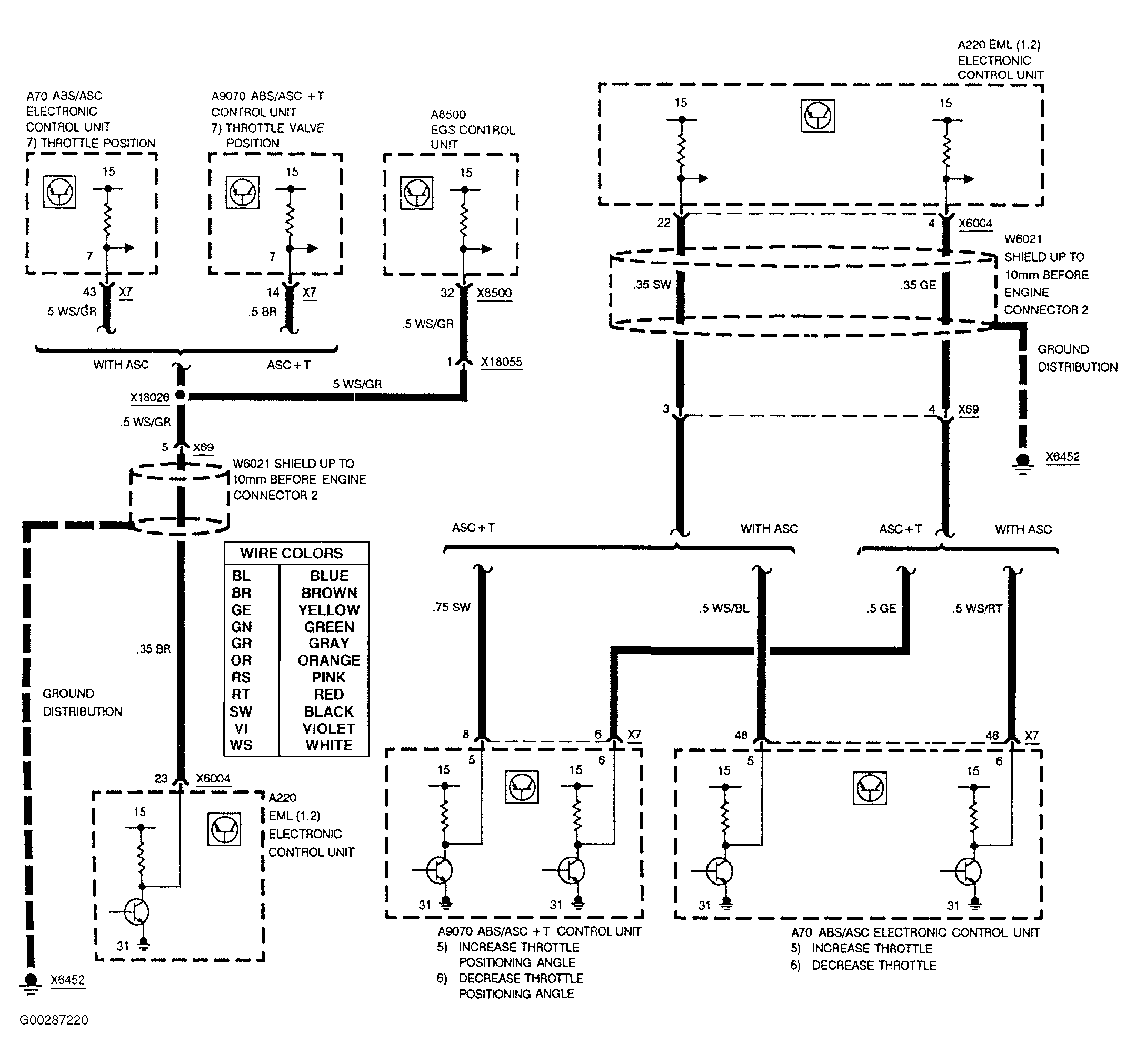

Fig 11: Electronic Throttle Control Wiring Diagram - 8 Series (11 Of 11)

G00287220

Courtesy of BMW OF NORTH AMERICA, INC.

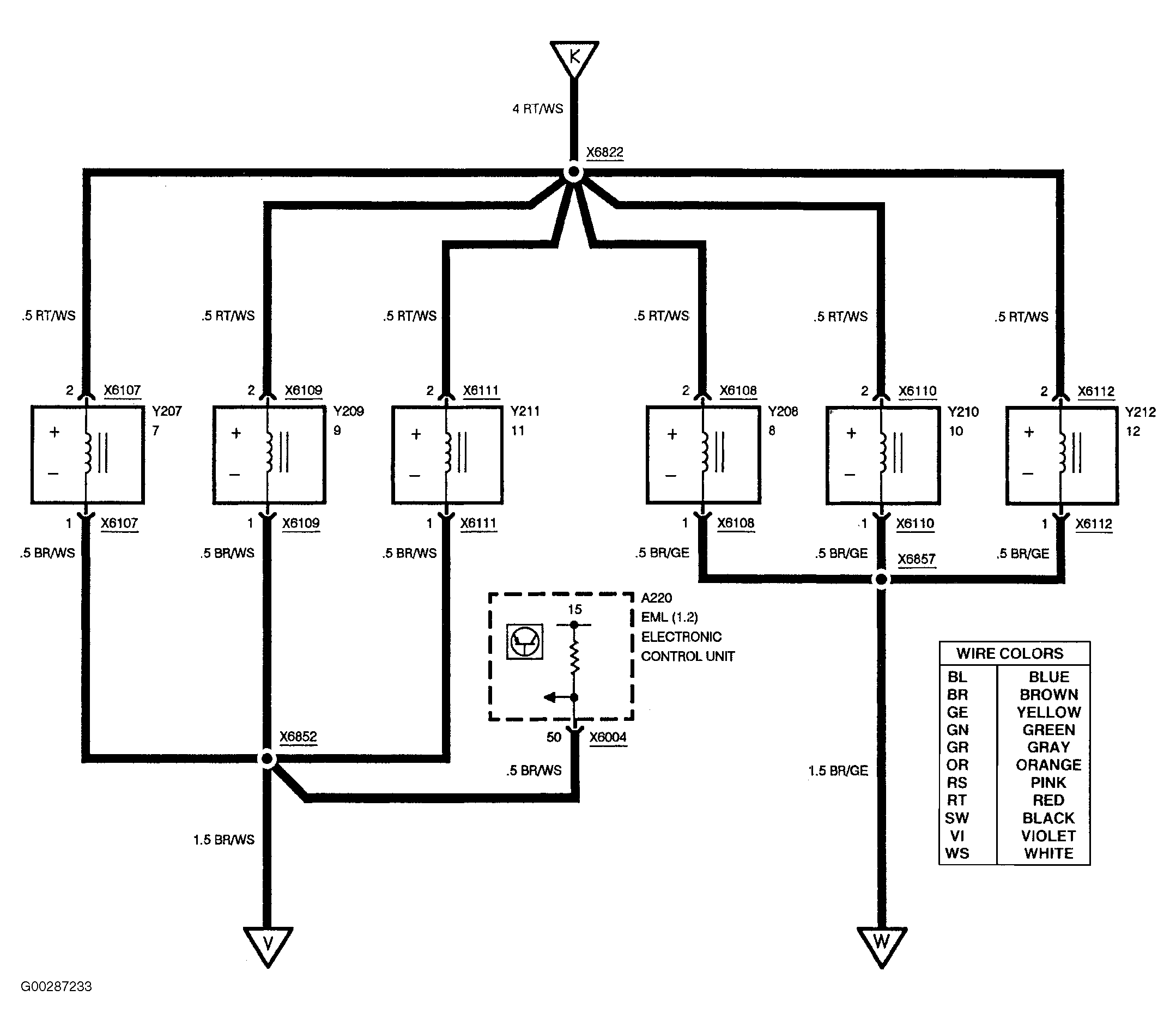

Fig 12: Fuel Injector System Wiring Diagram - 8 Series (1 Of 1)

G00287233

Courtesy of BMW OF NORTH AMERICA, INC.

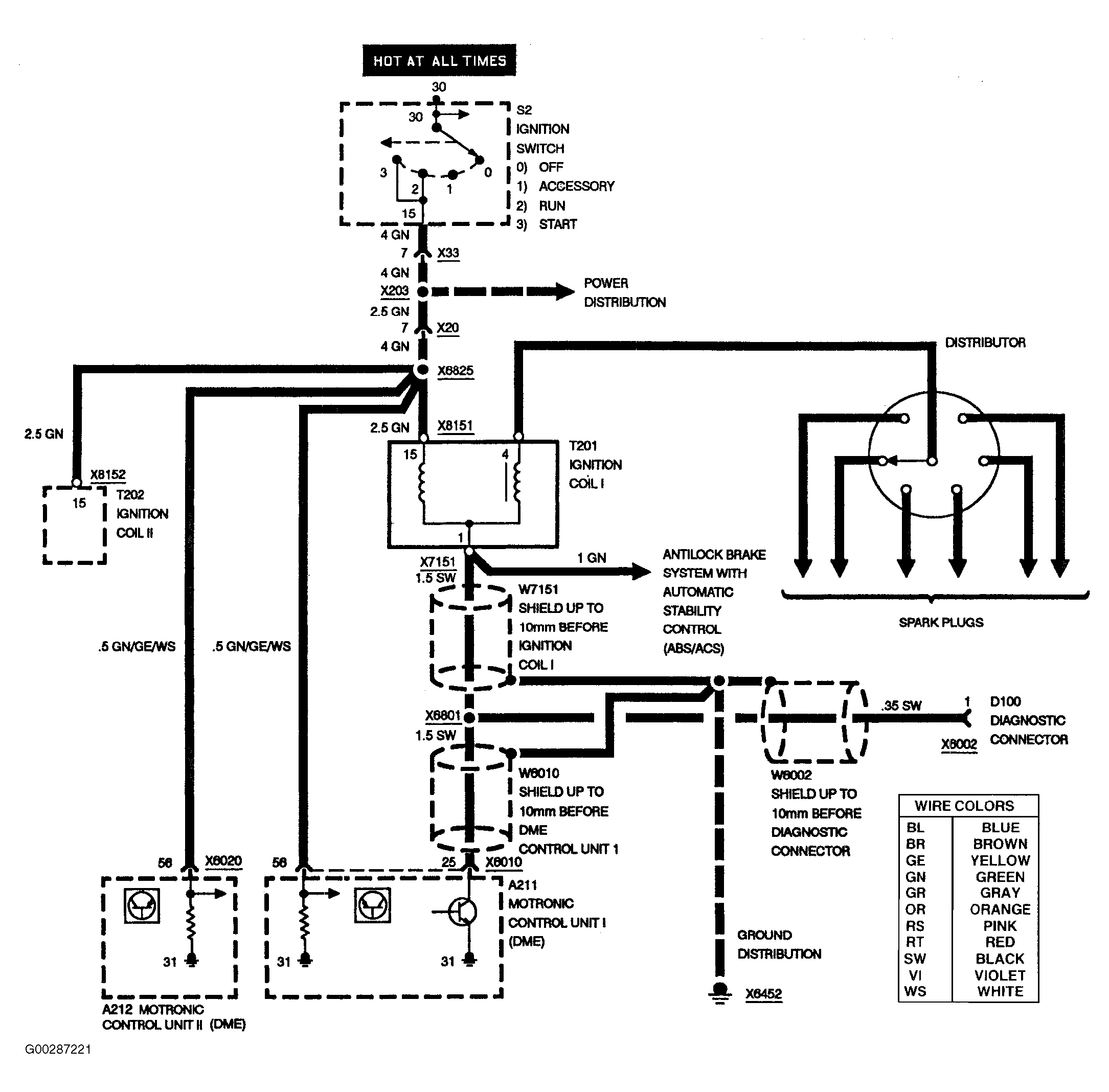

Fig 13: Motronic Control Unit I Wiring Diagram - 8 Series (1 Of 10)

G00287221

Courtesy of BMW OF NORTH AMERICA, INC.

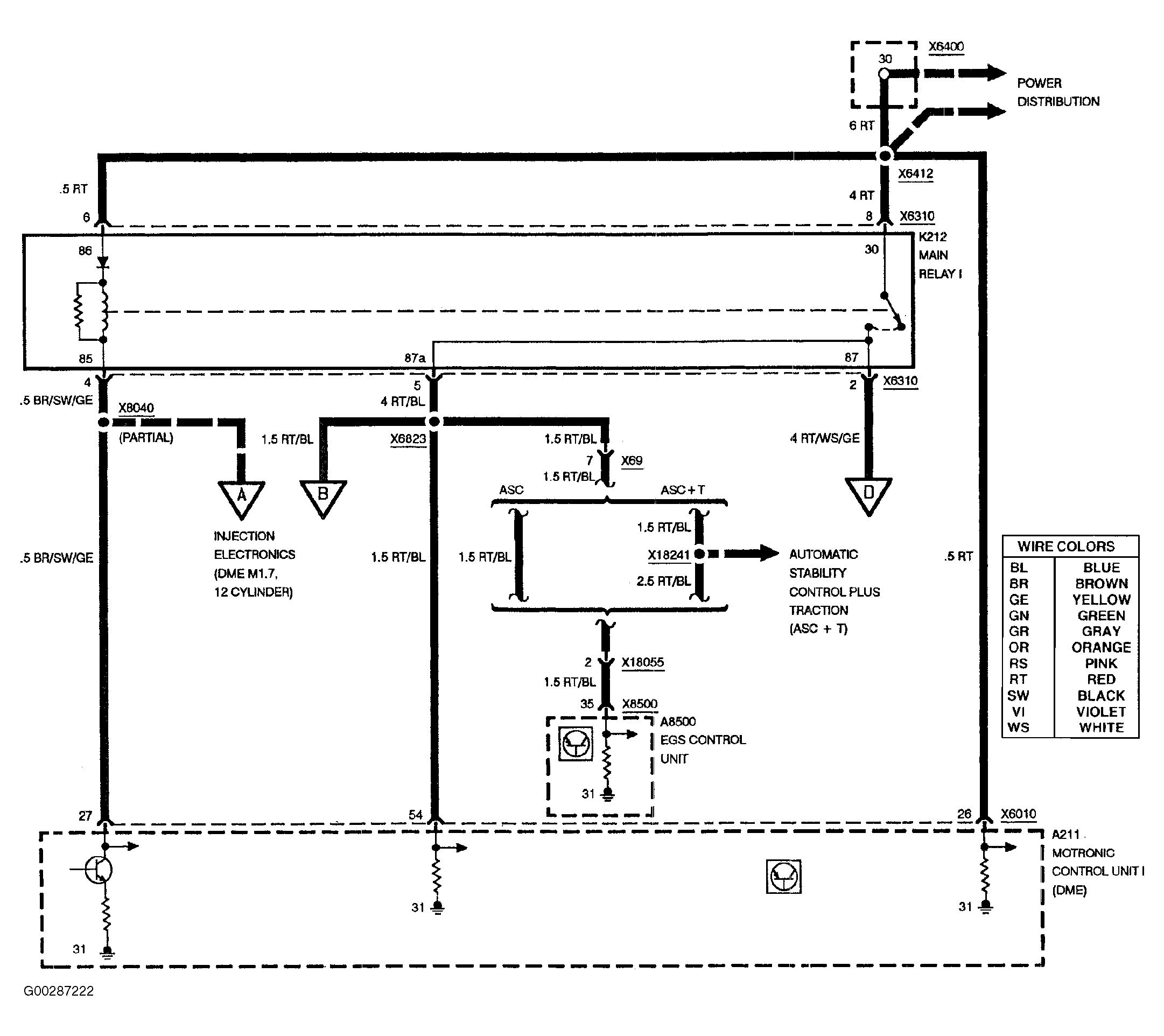

Fig 14: Motronic Control Unit I Wiring Diagram - 8 Series (2 Of 10)

G00287222

Courtesy of BMW OF NORTH AMERICA, INC.

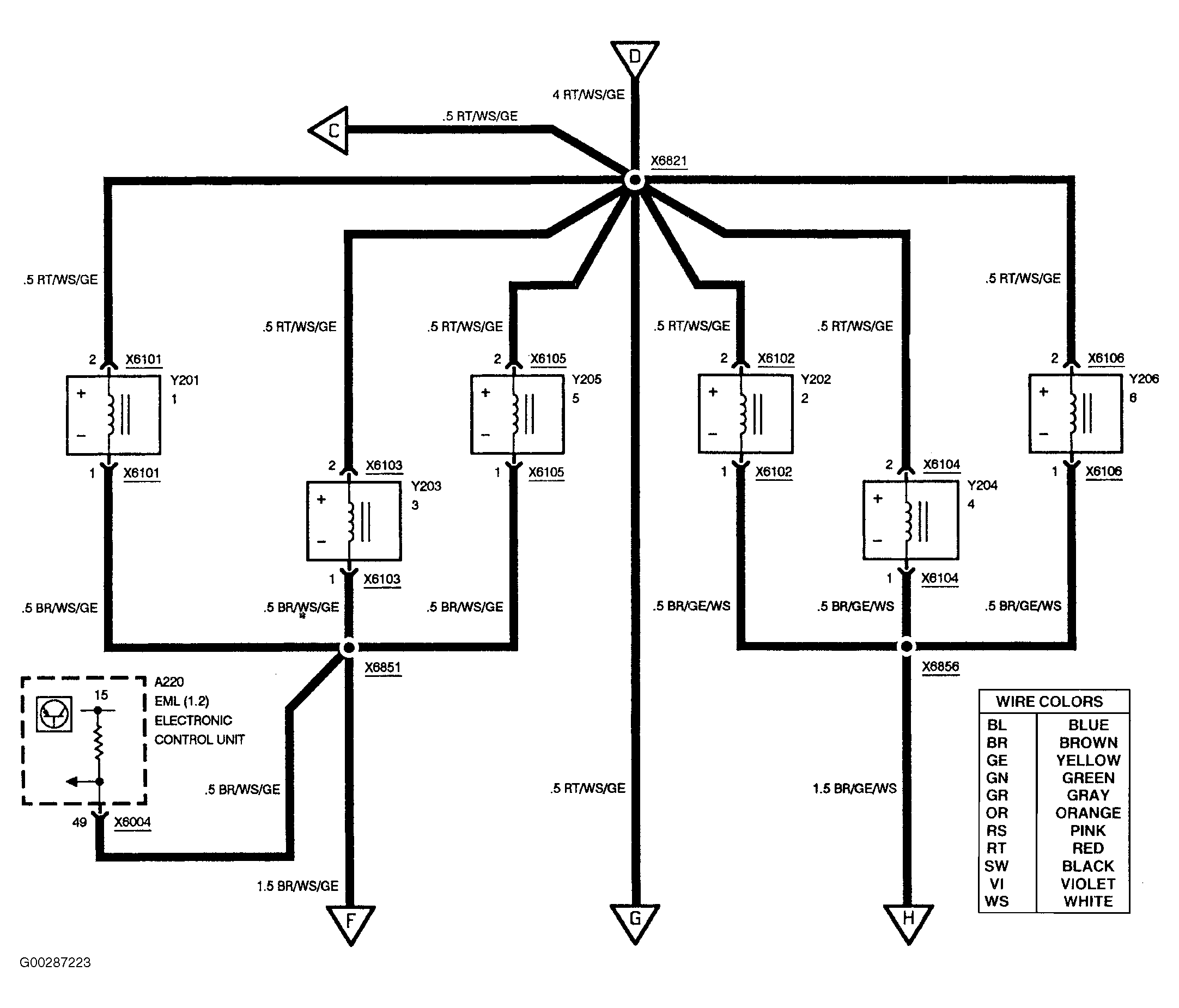

Fig 15: Motronic Control Unit I Wiring Diagram - 8 Series (3 Of 10)

G00287223

Courtesy of BMW OF NORTH AMERICA, INC.

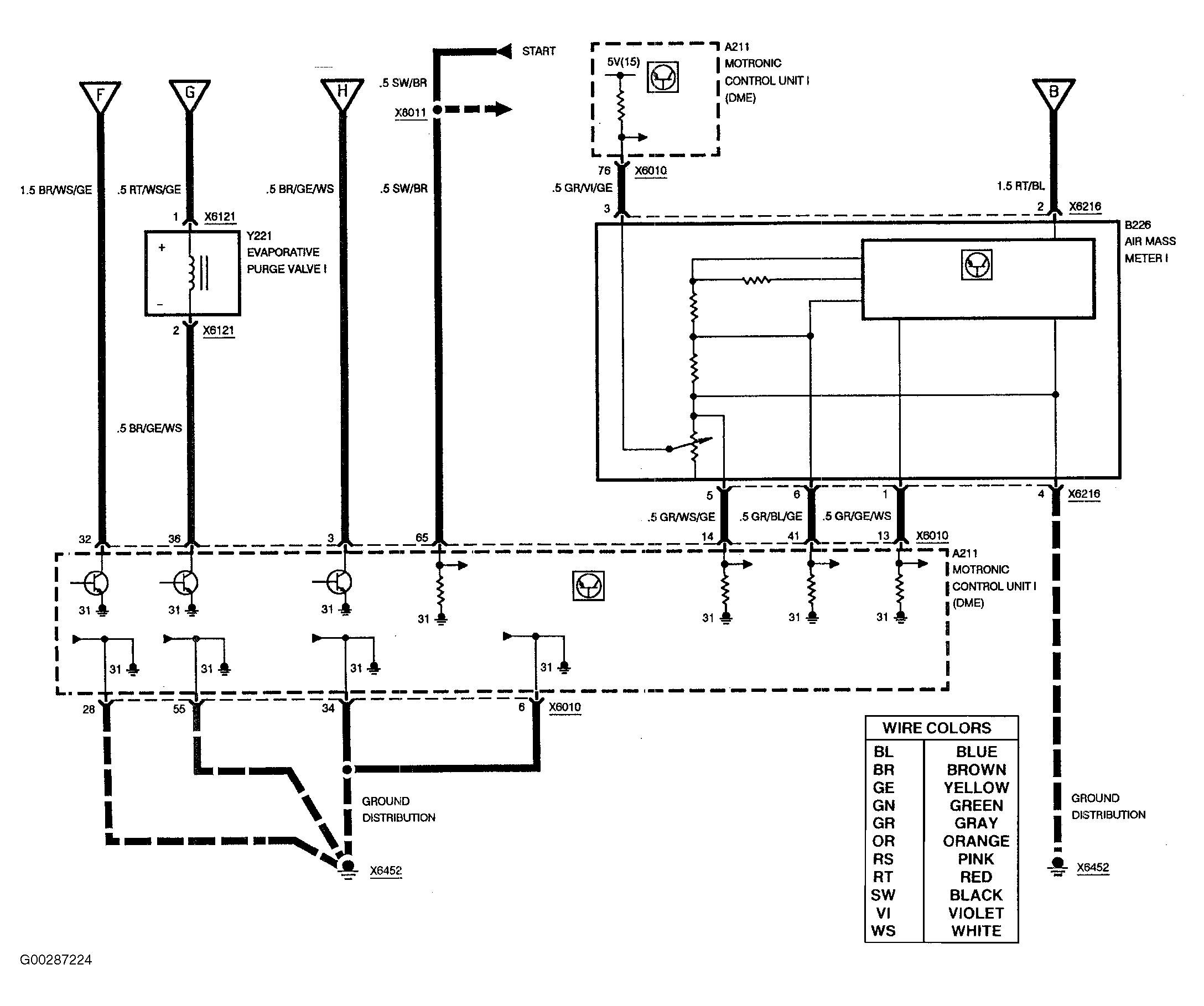

Fig 16: Motronic Control Unit I Wiring Diagram - 8 Series (4 Of 10)

G00287224

Courtesy of BMW OF NORTH AMERICA, INC.

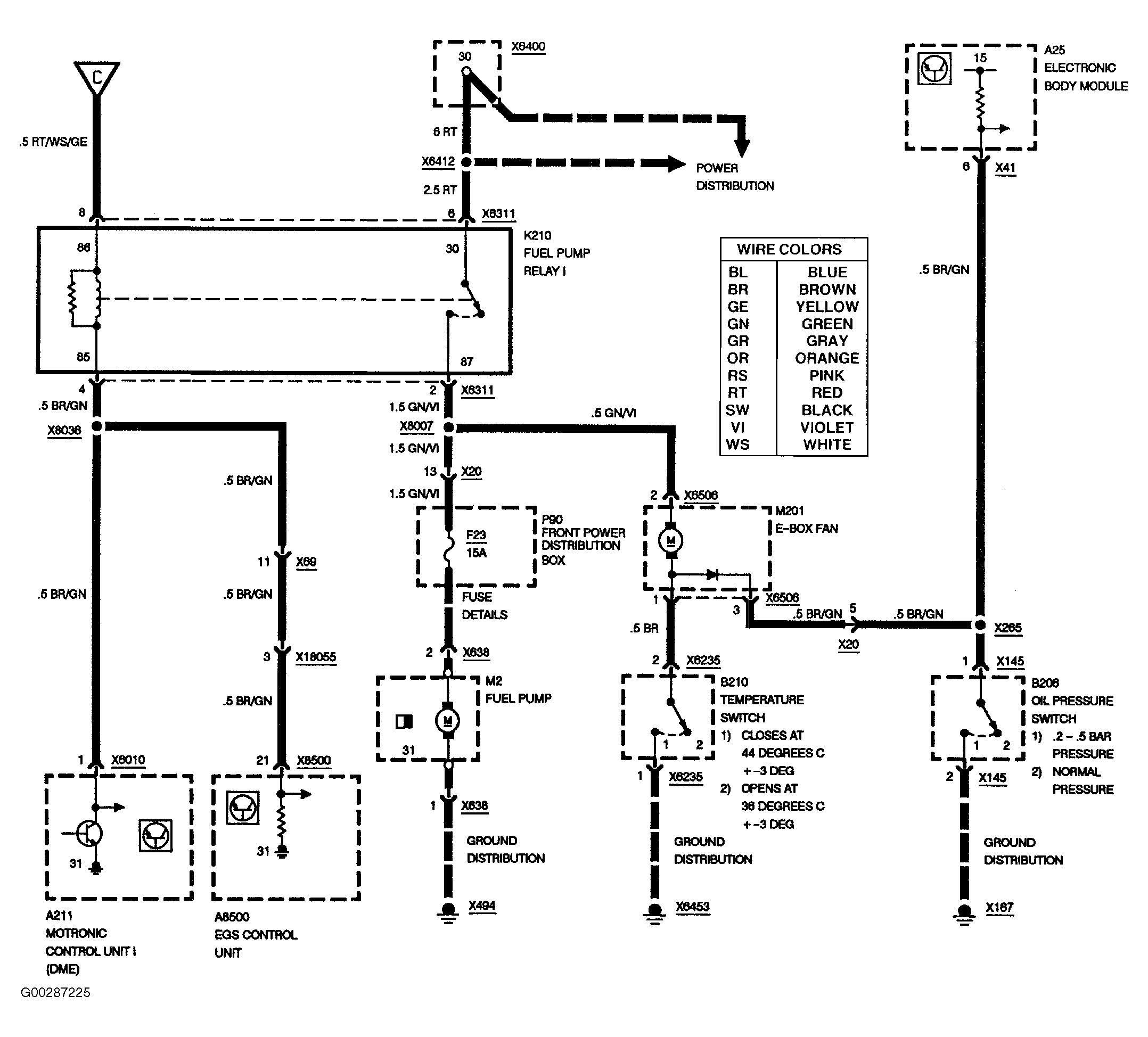

Fig 17: Motronic Control Unit I Wiring Diagram - 8 Series (5 Of 10)

G00287225

Courtesy of BMW OF NORTH AMERICA, INC.

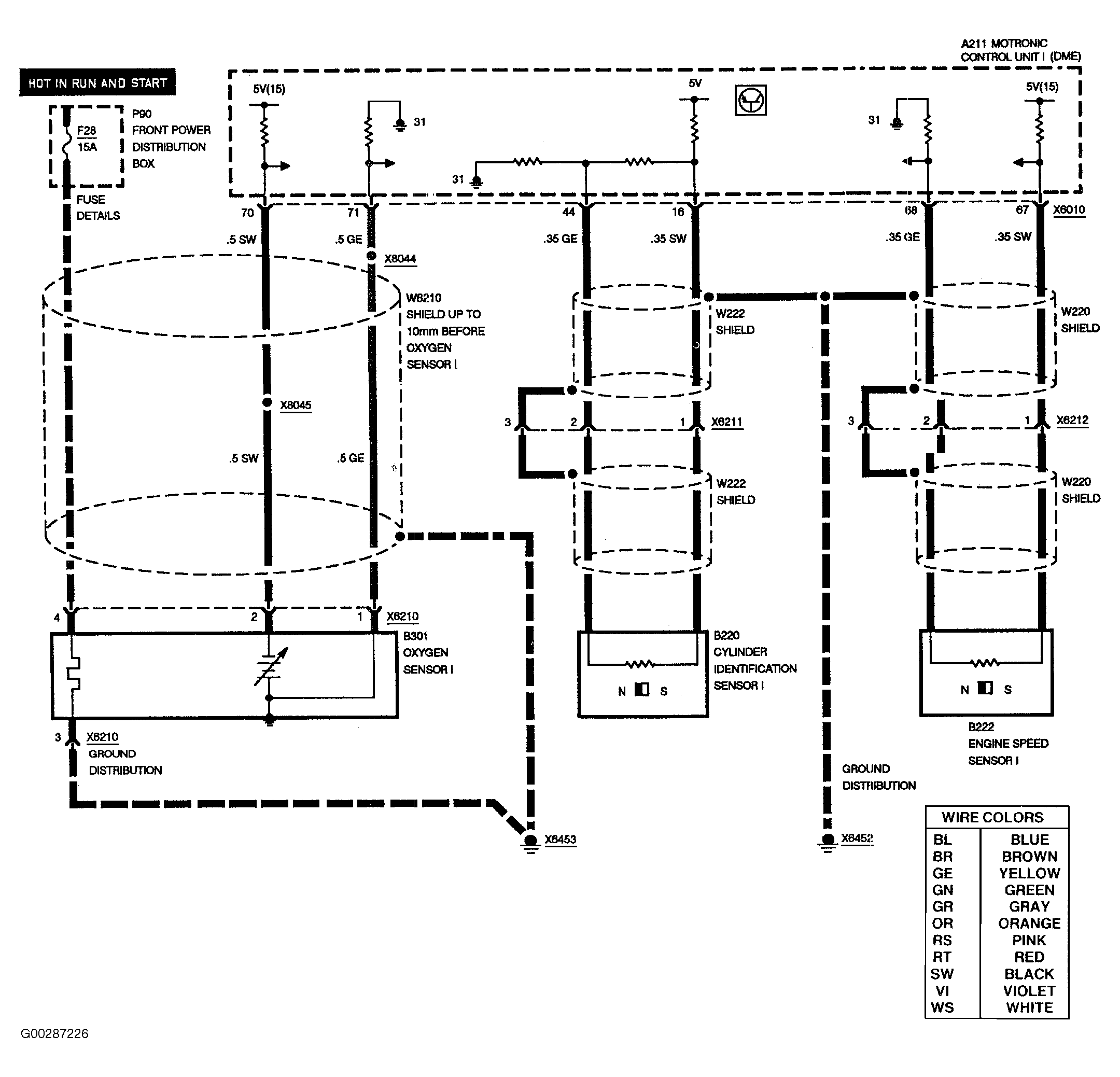

Fig 18: Motronic Control Unit I Wiring Diagram - 8 Series (6 Of 10)

G00287226

Courtesy of BMW OF NORTH AMERICA, INC.

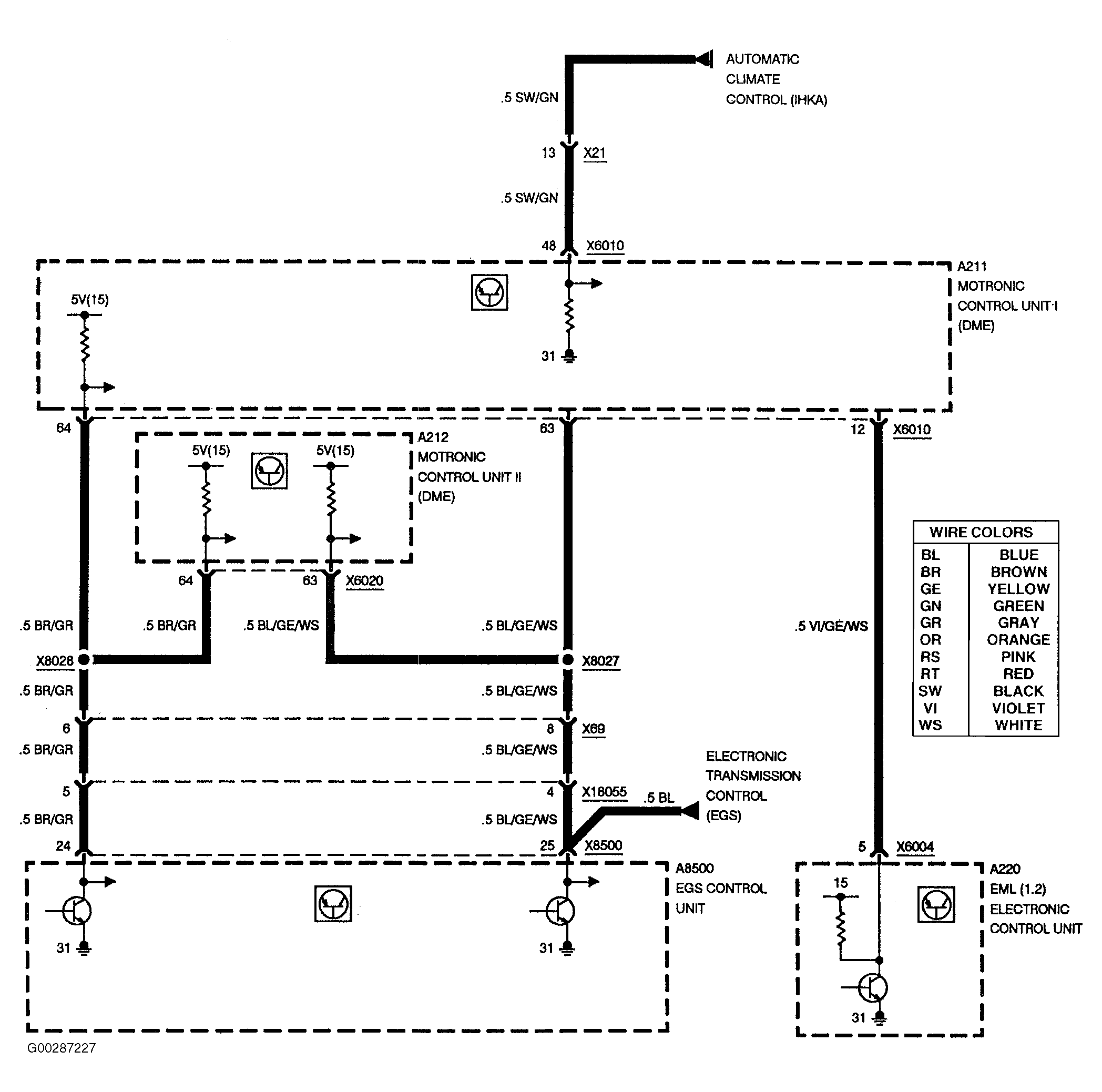

Fig 19: Motronic Control Unit I Wiring Diagram - 8 Series (7 Of 10)

G00287227

Courtesy of BMW OF NORTH AMERICA, INC.

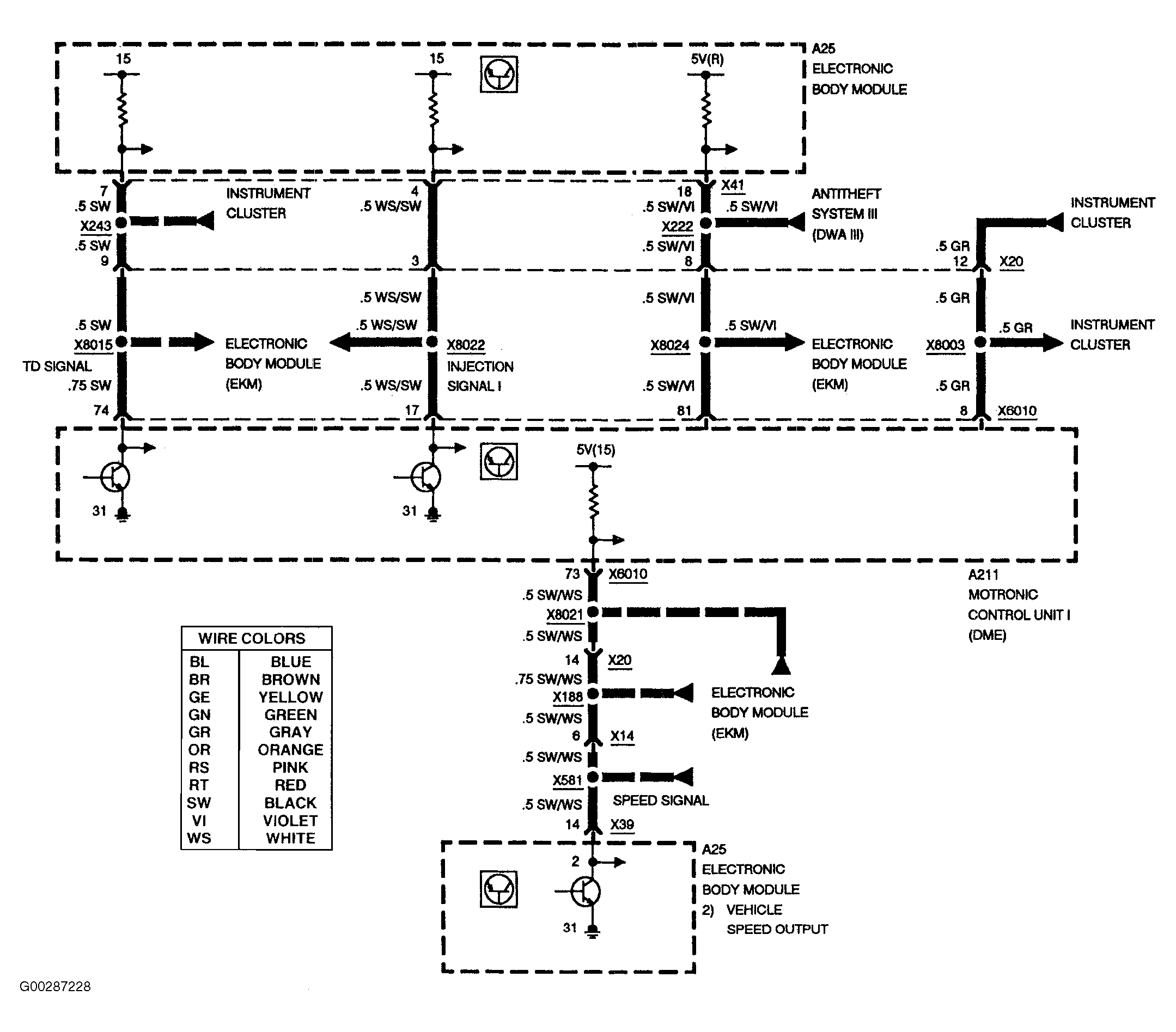

Fig 20: Motronic Control Unit I Wiring Diagram - 8 Series (8 Of 10)

G00287228

Courtesy of BMW OF NORTH AMERICA, INC.

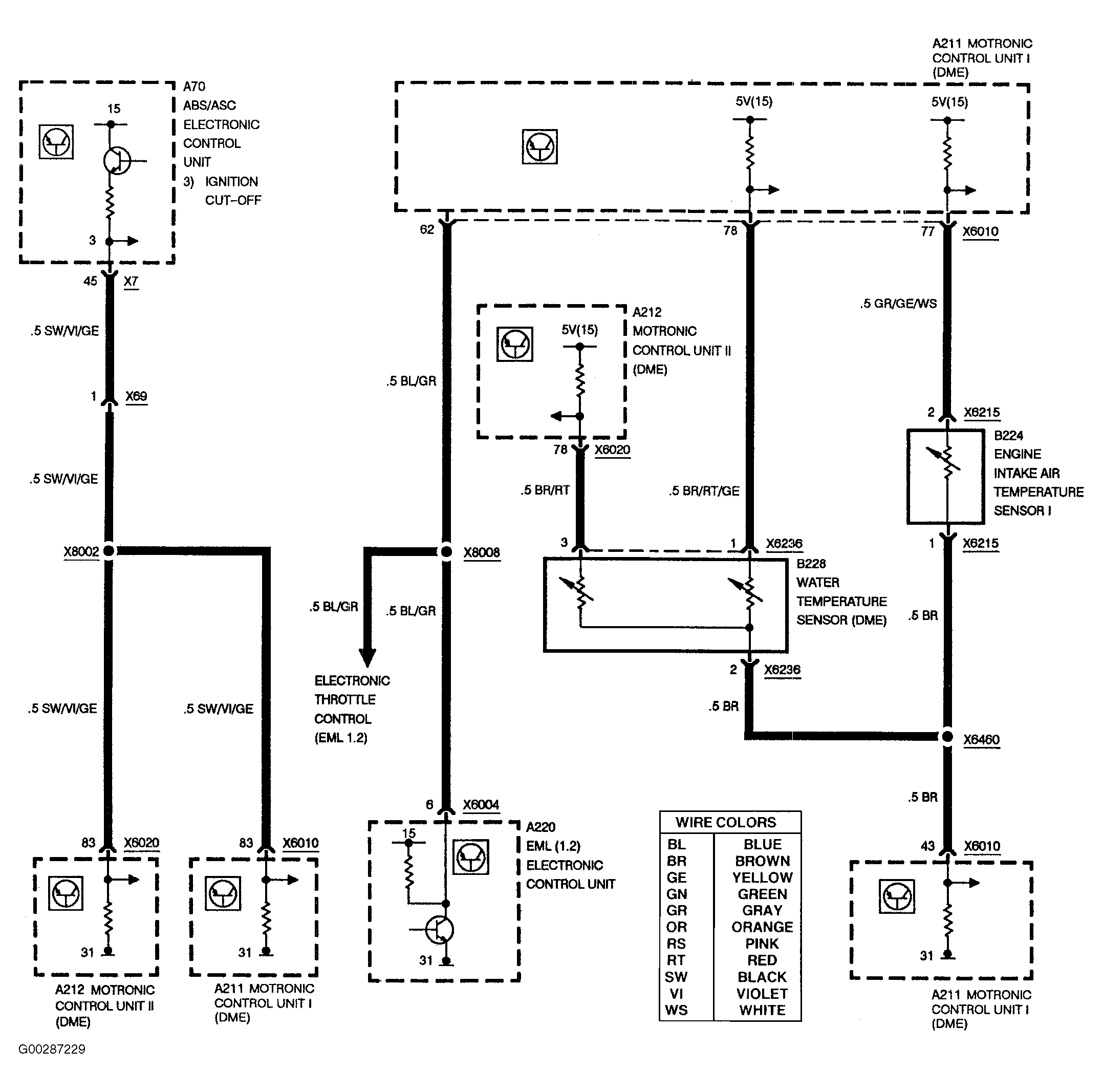

Fig 21: Motronic Control Unit I Wiring Diagram - 8 Series (9 Of 10)

G00287229

Courtesy of BMW OF NORTH AMERICA, INC.

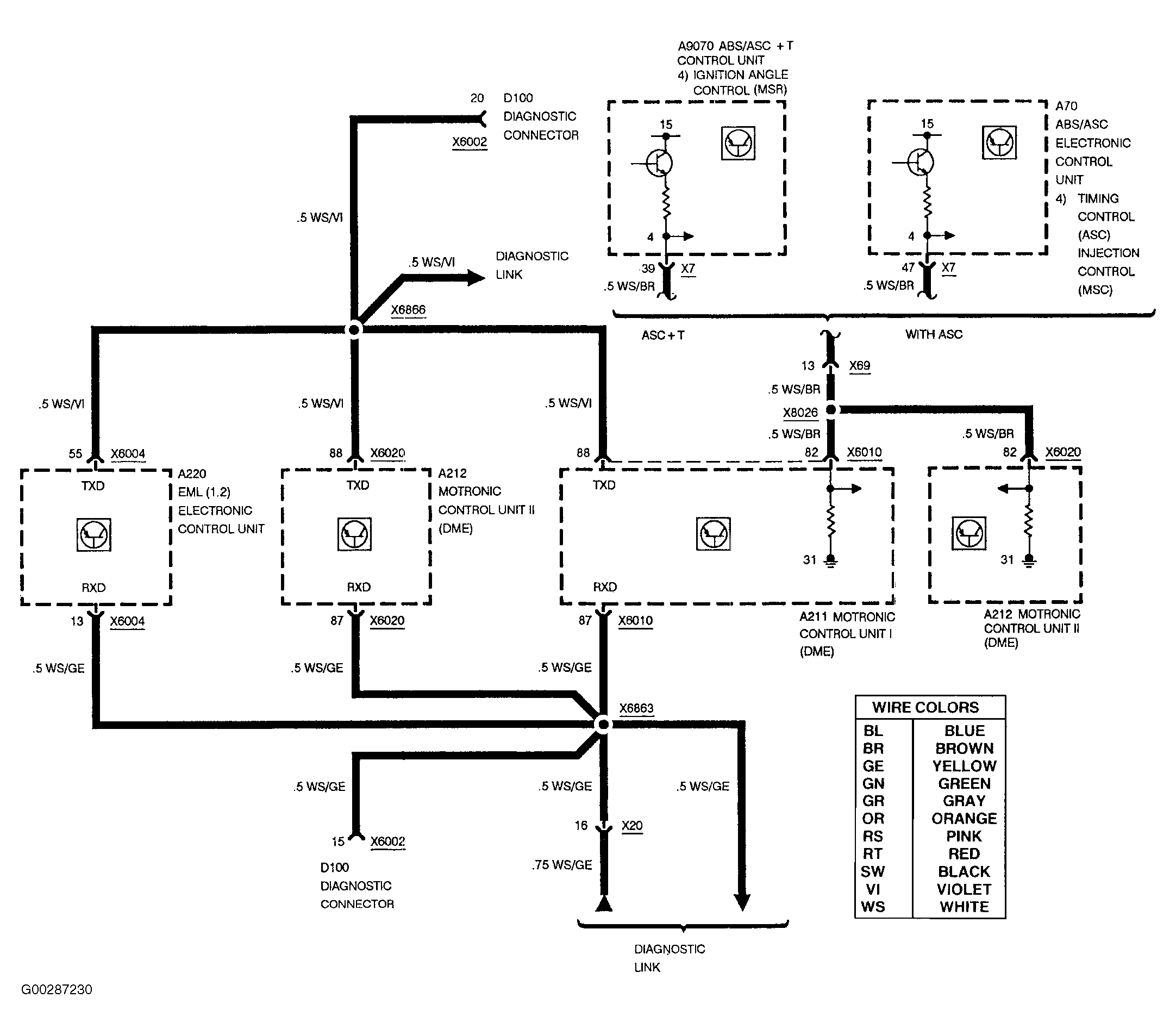

Fig 22: Motronic Control Unit I Wiring Diagram - 8 Series (10 Of 10)

G00287230

Courtesy of BMW OF NORTH AMERICA, INC.

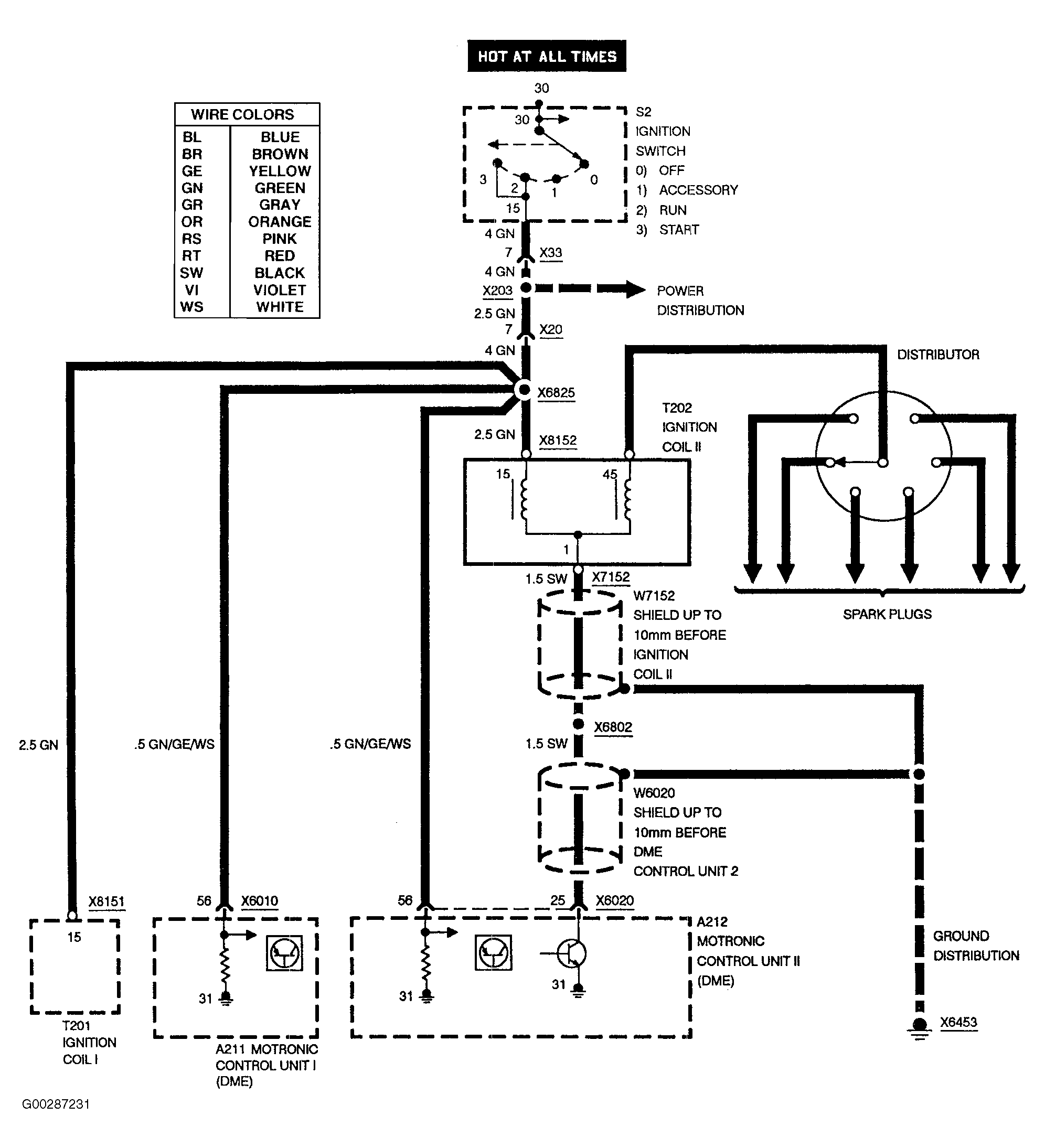

Fig 23: Motronic Control Unit II Wiring Diagram - 8 Series (1 Of 7)

G00287231

Courtesy of BMW OF NORTH AMERICA, INC.

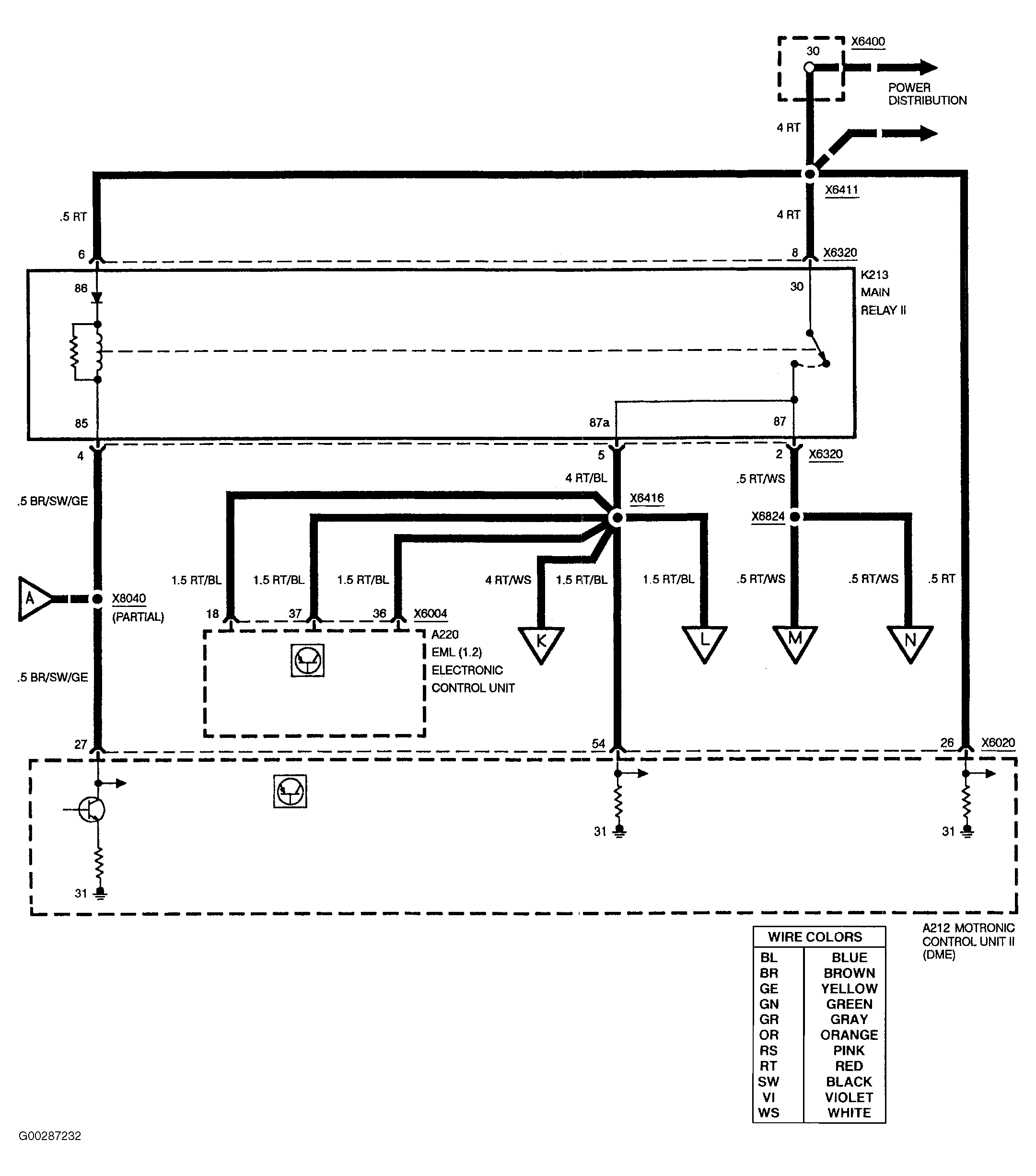

Fig 24: Motronic Control Unit II Wiring Diagram - 8 Series (2 Of 7)

G00287232

Courtesy of BMW OF NORTH AMERICA, INC.

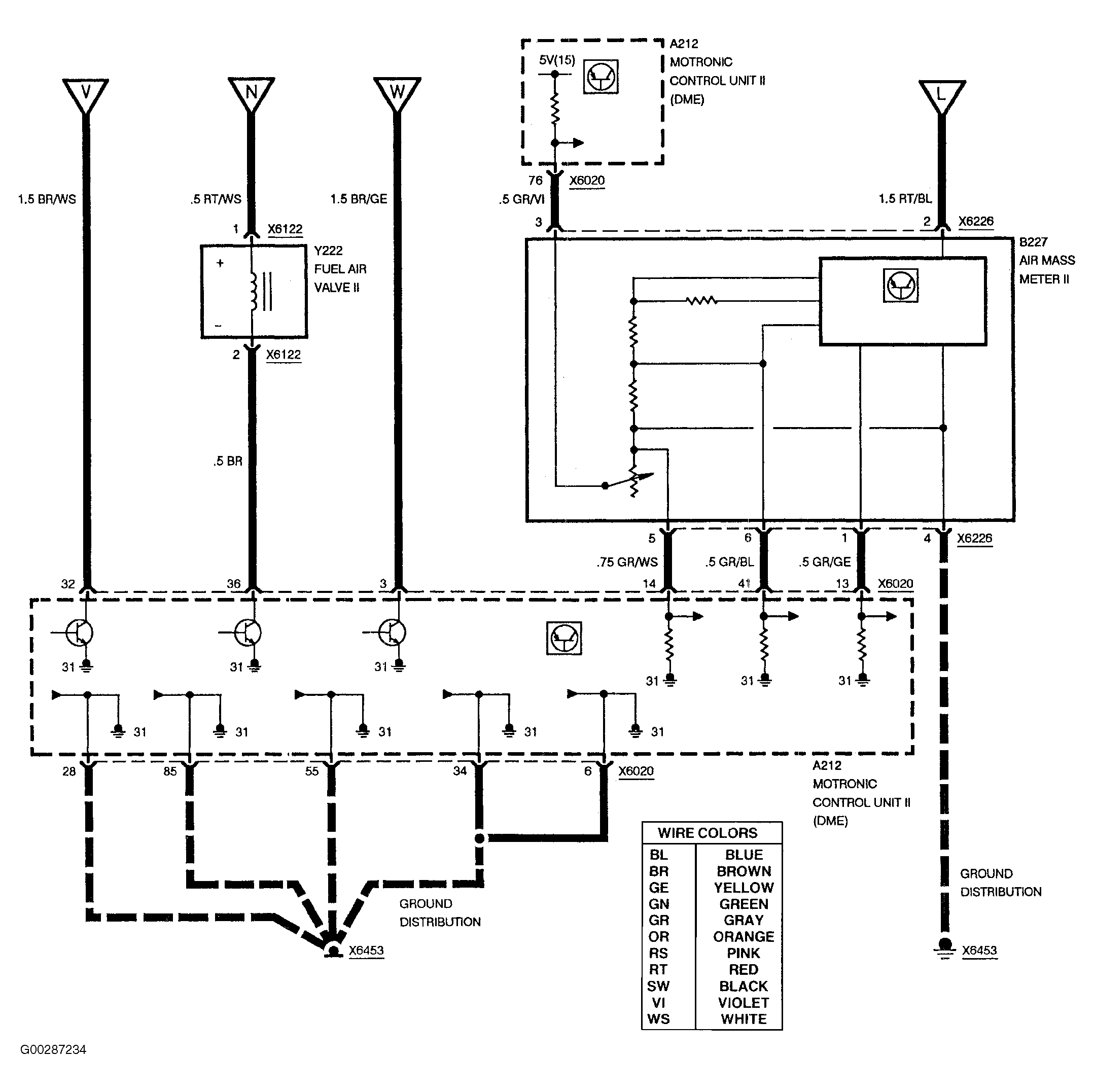

Fig 25: Motronic Control Unit II Wiring Diagram - 8 Series (3 Of 7)

G00287234

Courtesy of BMW OF NORTH AMERICA, INC.

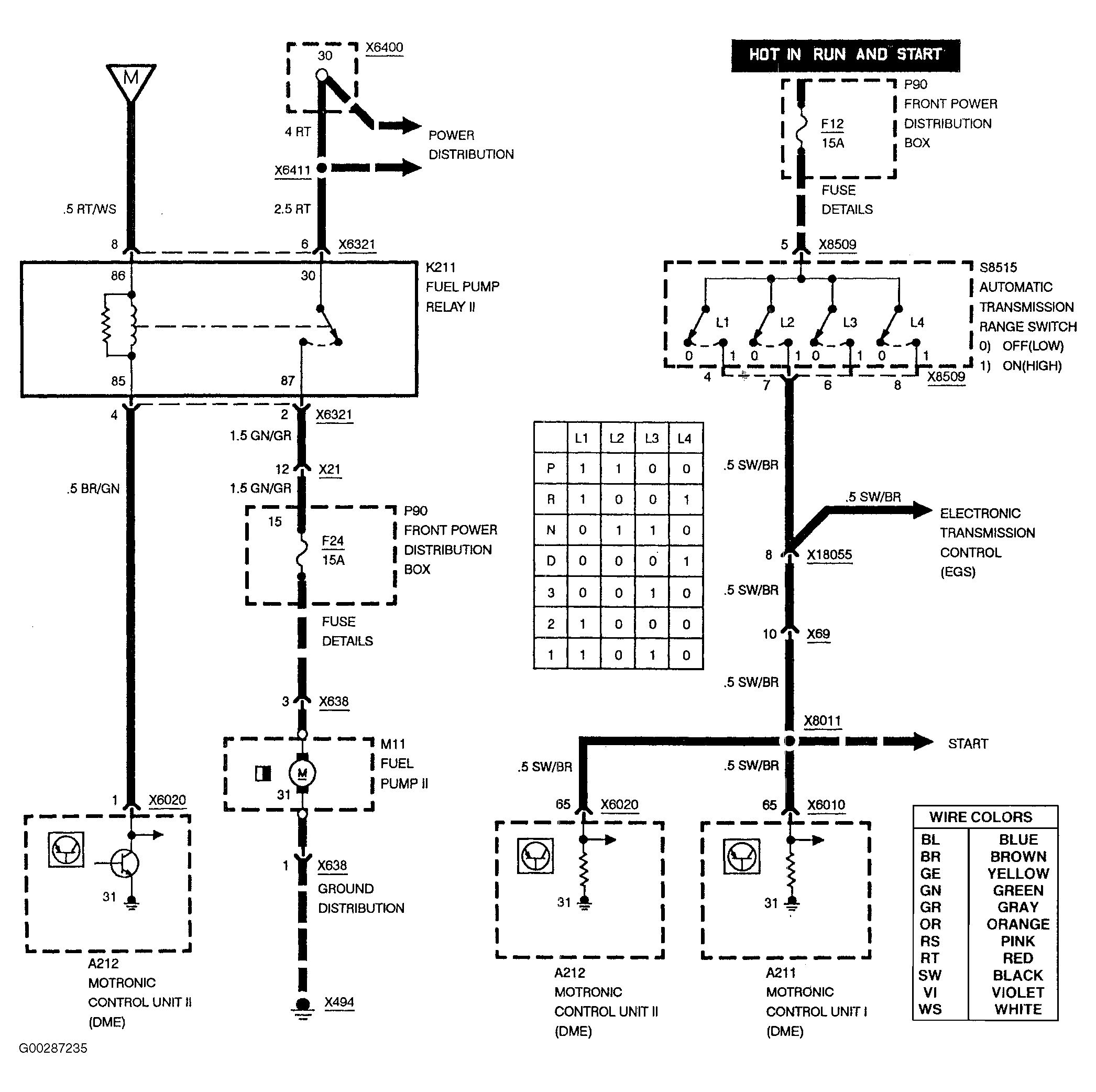

Fig 26: Motronic Control Unit II Wiring Diagram - 8 Series (4 Of 7)

G00287235

Courtesy of BMW OF NORTH AMERICA, INC.

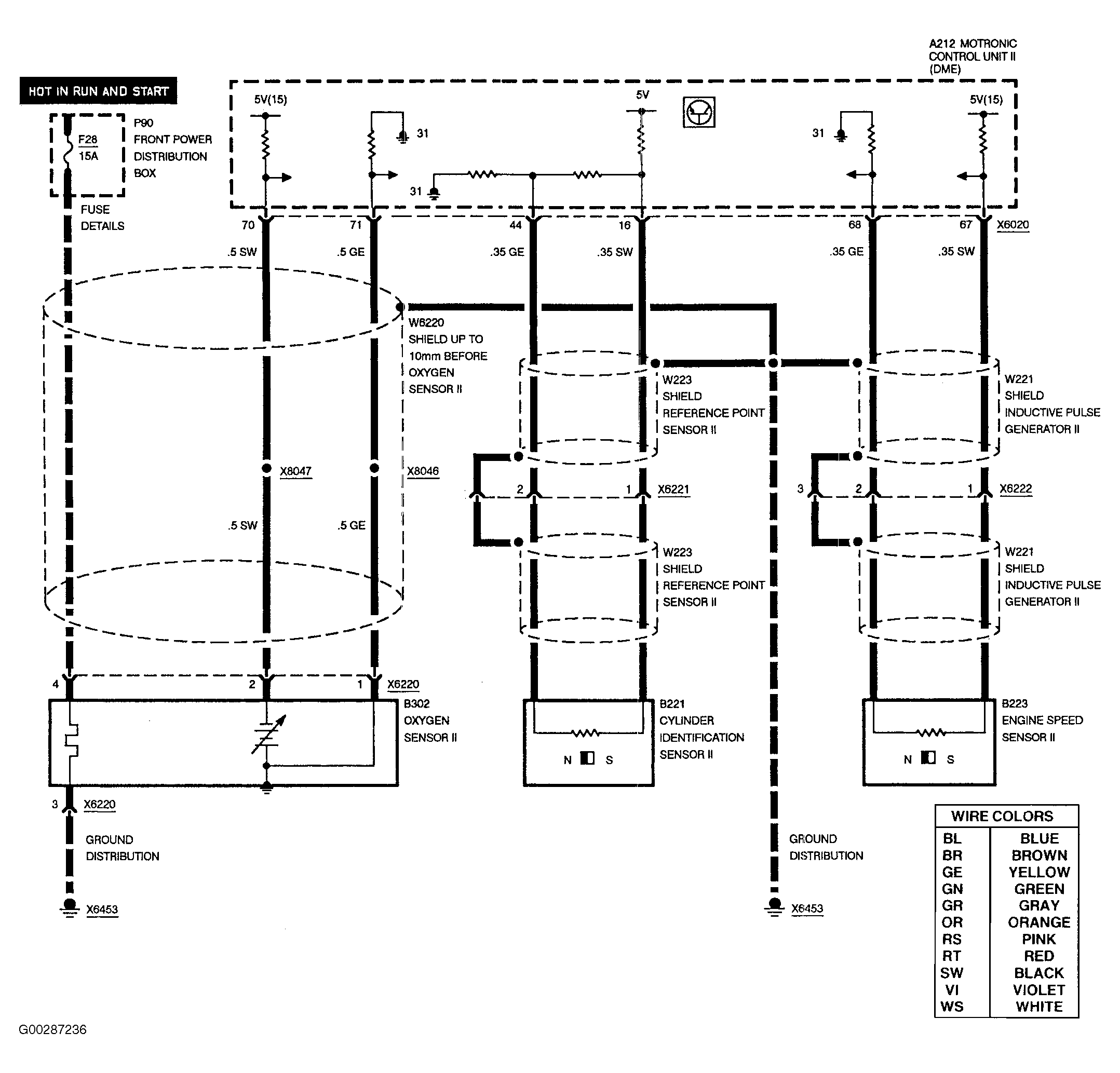

Fig 27: Motronic Control Unit II Wiring Diagram - 8 Series (5 Of 7)

G00287236

Courtesy of BMW OF NORTH AMERICA, INC.

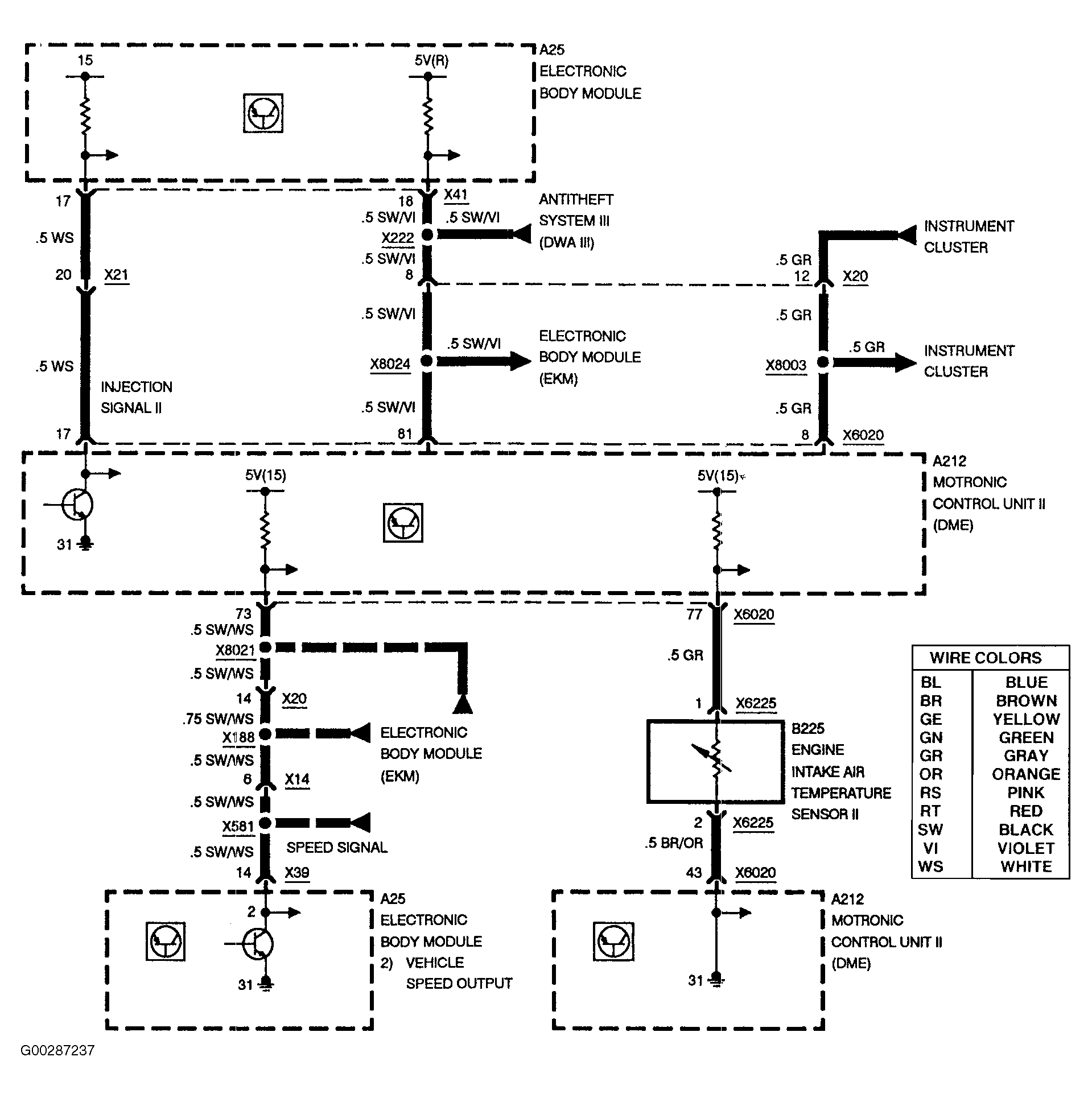

Fig 28: Motronic Control Unit II Wiring Diagram - 8 Series (6 Of 7)

G00287237

Courtesy of BMW OF NORTH AMERICA, INC.

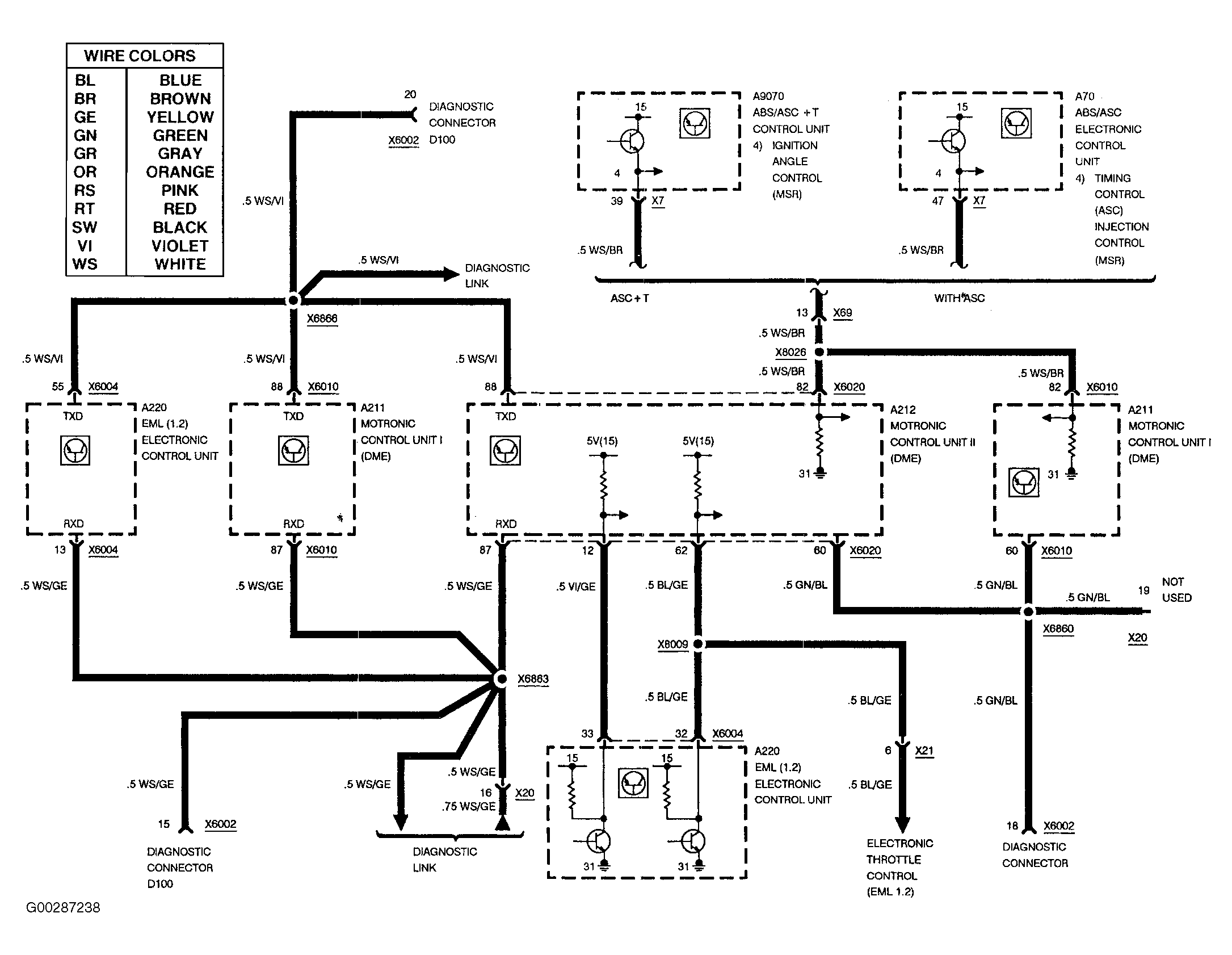

Fig 29: Motronic Control Unit II Wiring Diagram - 8 Series (7 Of 7)

G00287238

Courtesy of BMW OF NORTH AMERICA, INC.

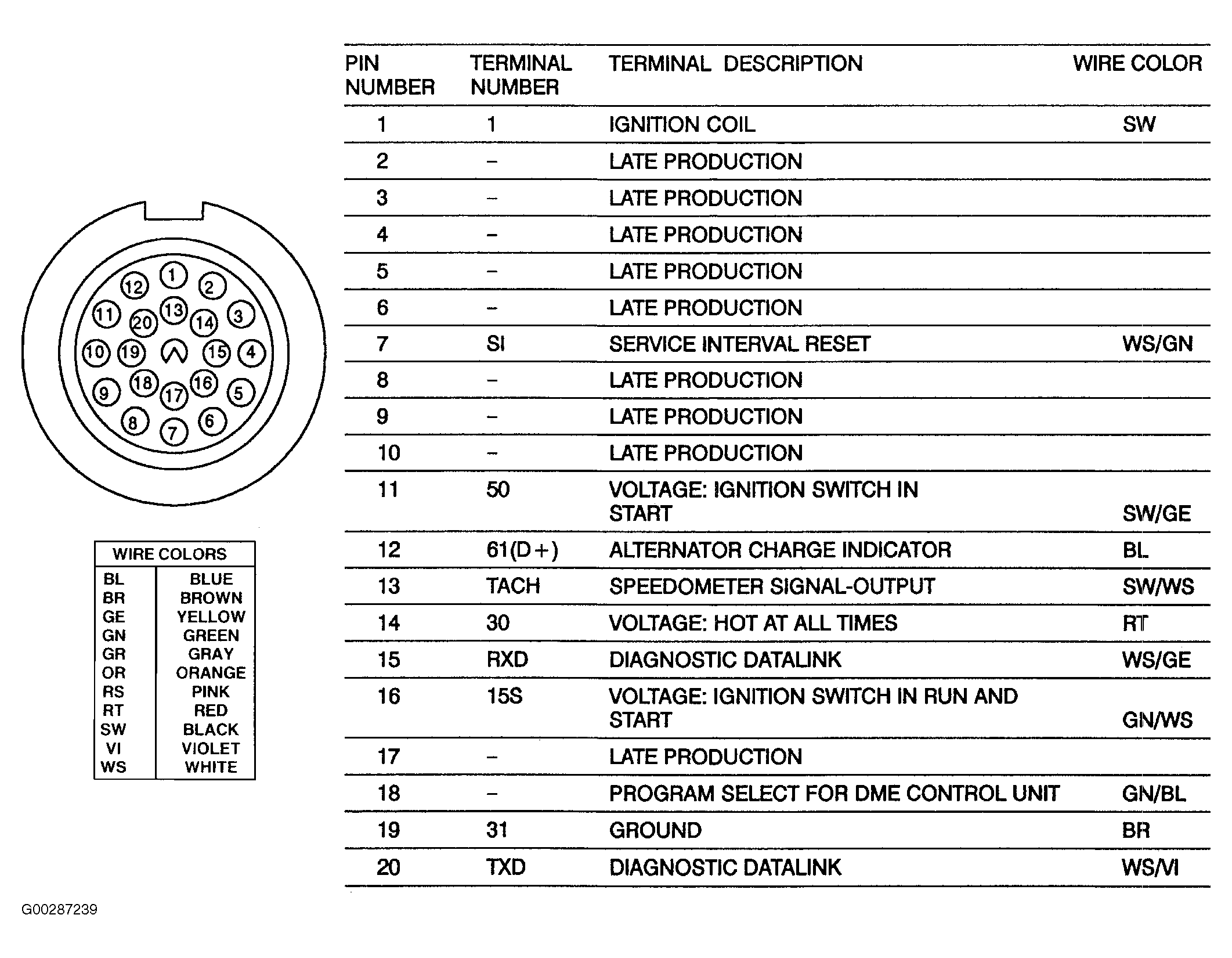

Fig 30: Diagnostic Connector Pin Identification - 8 Series (1 Of 1)

G00287239

Courtesy of BMW OF NORTH AMERICA, INC.

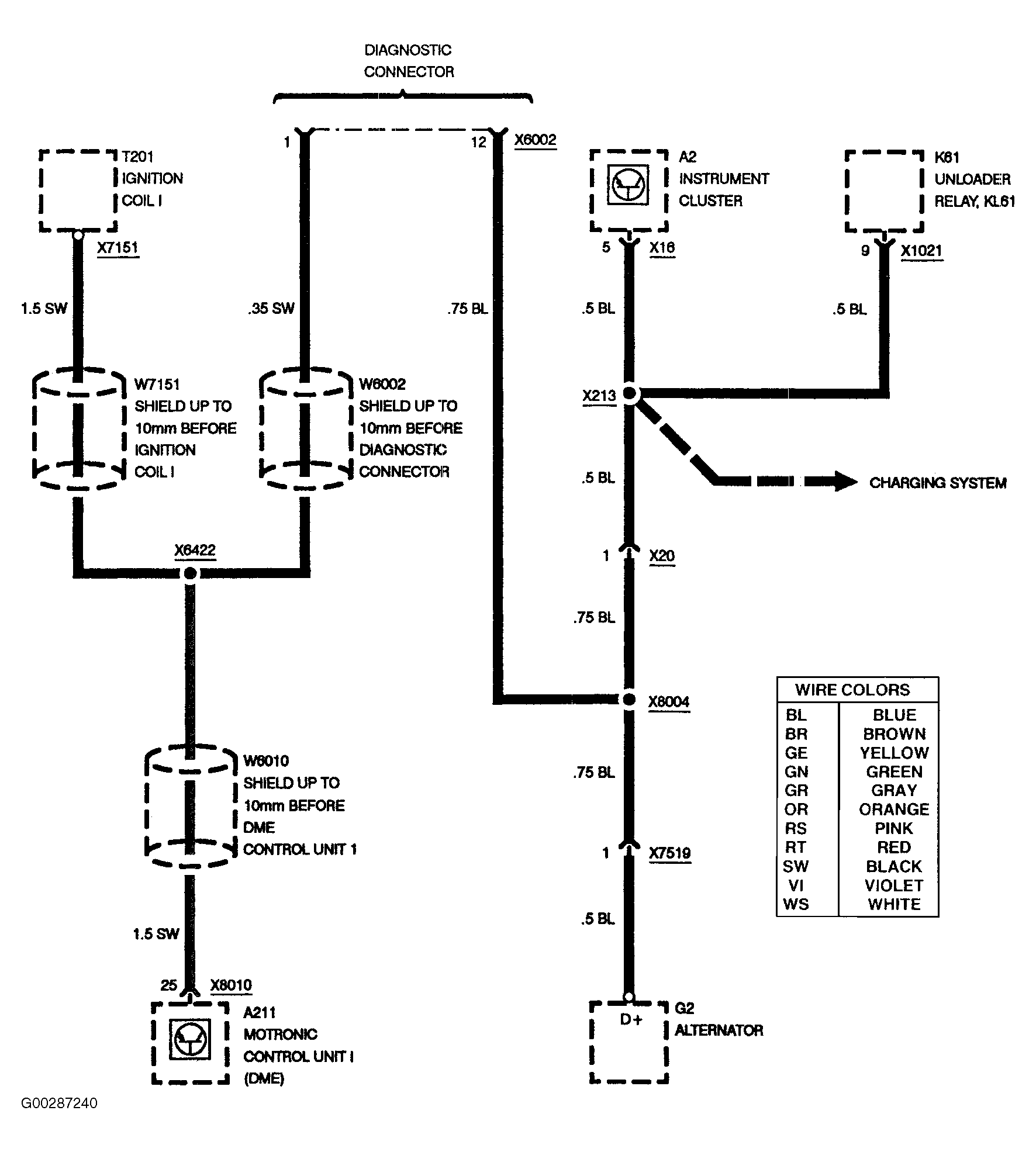

Fig 31: Diagnostic Link Wiring Diagram - 8 Series (1 Of 4)

G00287240

Courtesy of BMW OF NORTH AMERICA, INC.

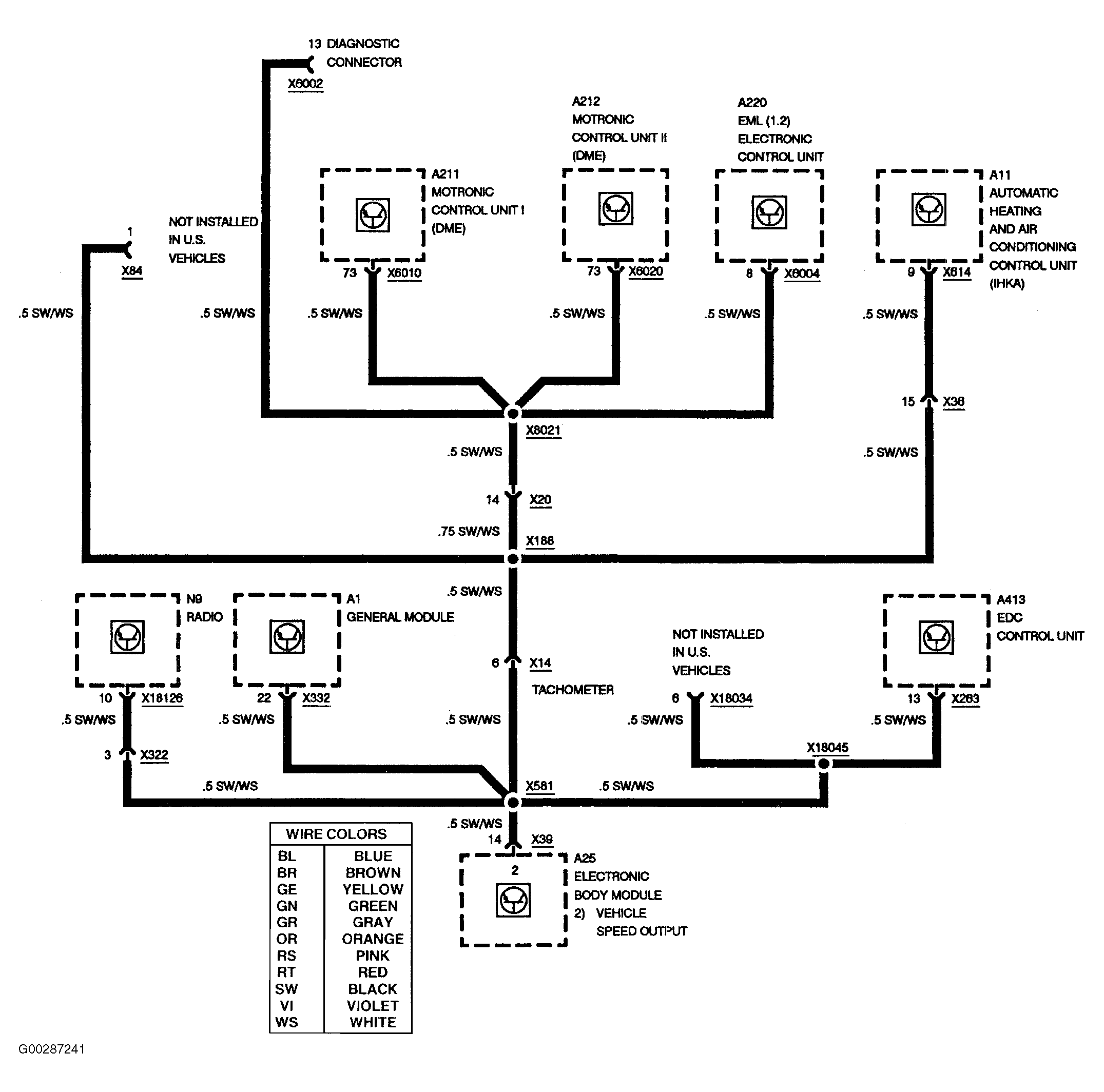

Fig 32: Diagnostic Link Wiring Diagram - 8 Series (2 Of 4)

G00287241

Courtesy of BMW OF NORTH AMERICA, INC.

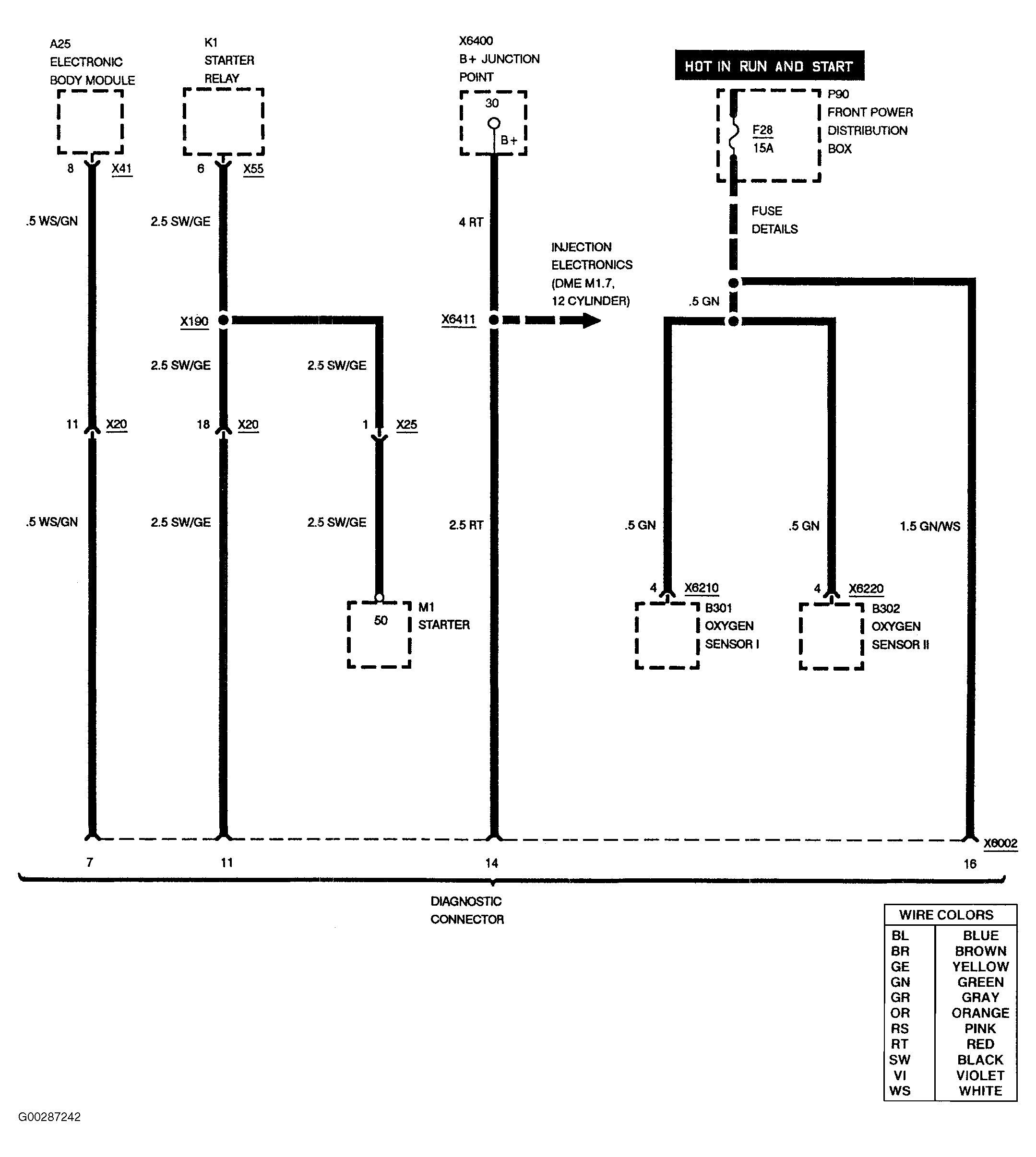

Fig 33: Diagnostic Link Wiring Diagram - 8 Series (3 Of 4)

G00287242

Courtesy of BMW OF NORTH AMERICA, INC.

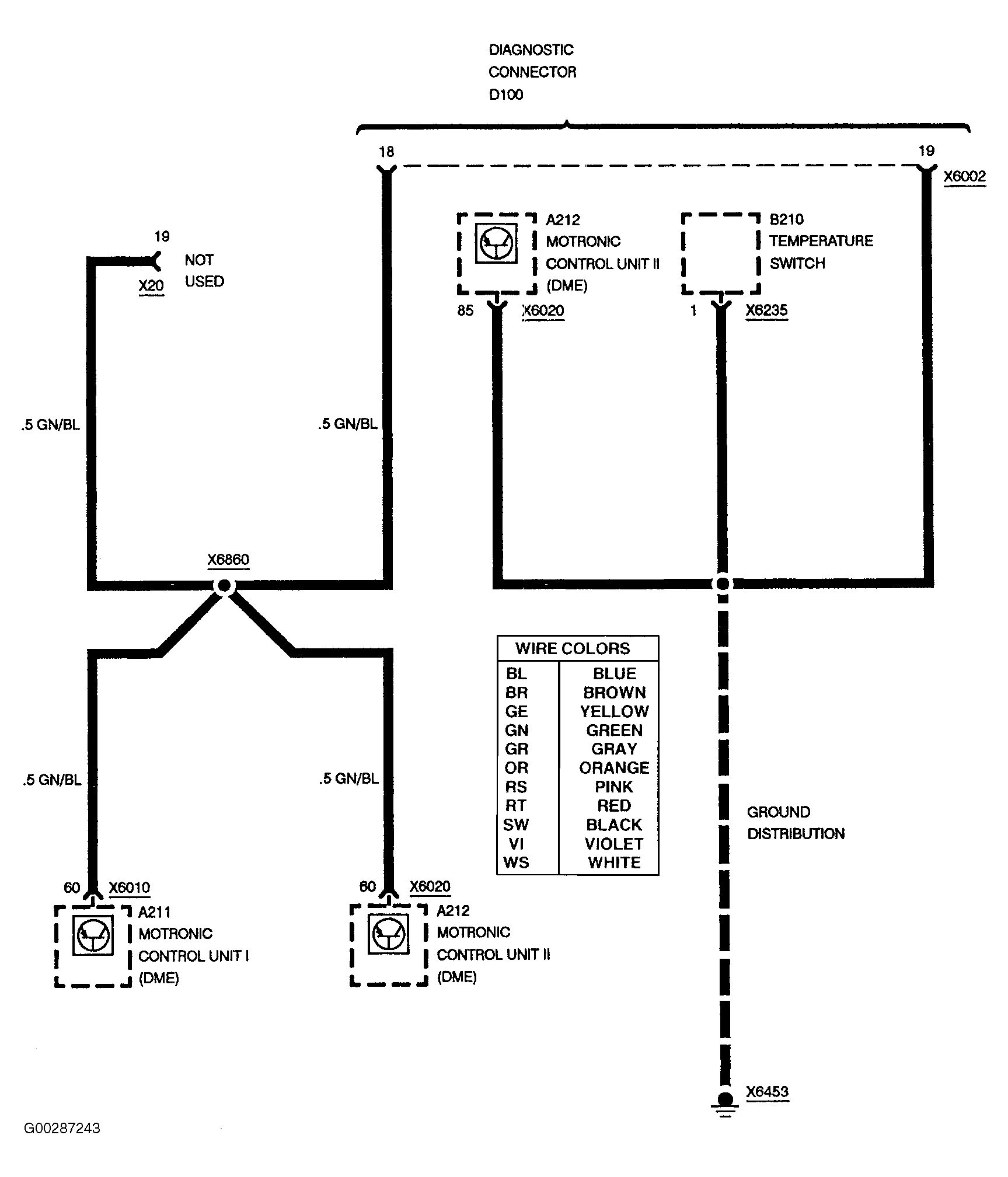

Fig 34: Diagnostic Link Wiring Diagram - 8 Series (4 Of 4)

G00287243

Courtesy of BMW OF NORTH AMERICA, INC.
