Tools And Equipment

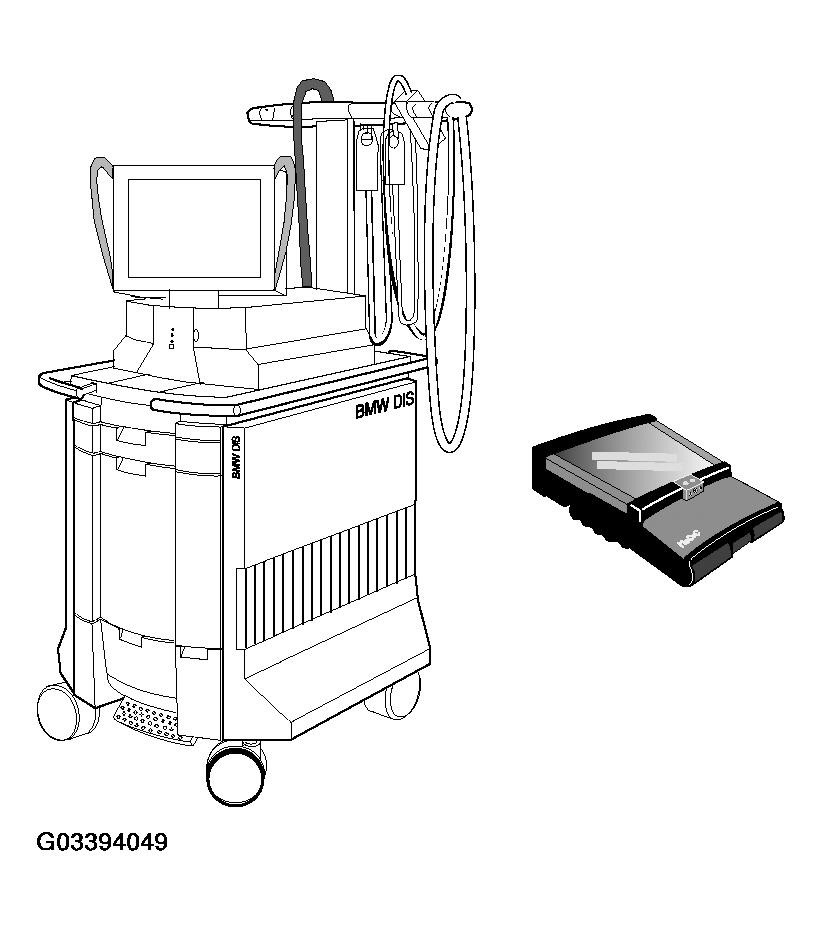

The DIS/MoDIC as well as a reputable hand held multimeter can be used when testing inputs/components.

It is best to make the checks at the ECM connection, this method includes testing the wiring harness.

The correct Universal Adapter for the M1.7.2 application should be used (#88 88 6 614 410). This will ensure the pin connectors and the harness will not be damaged.

Fig 1: Identifying Special Tools And Equipment

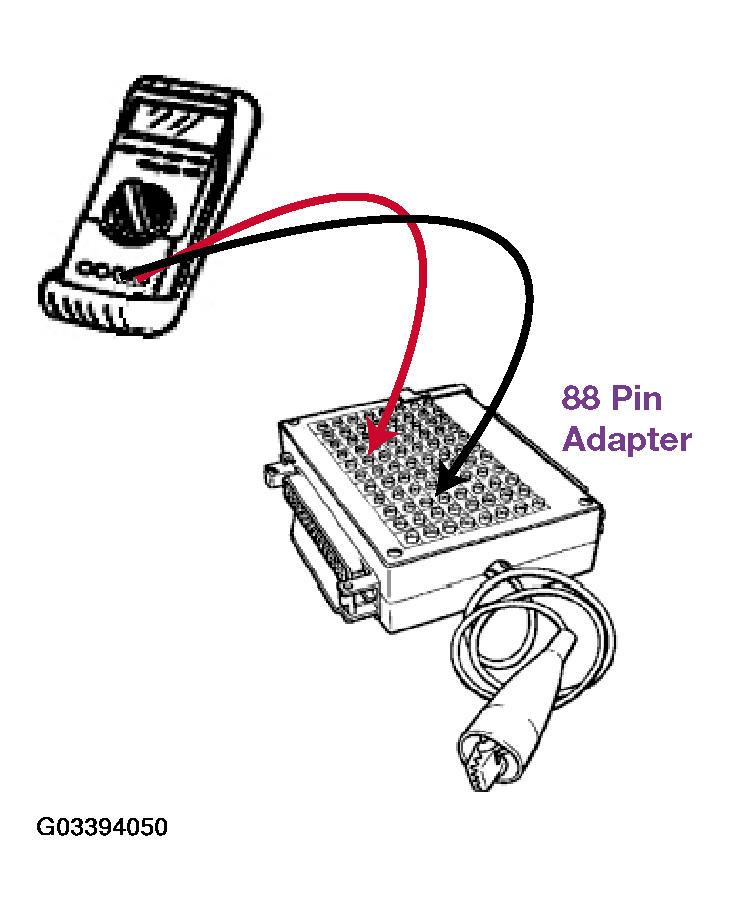

The interior of this Universal Adapter is shielded, therefore it is vital that the ground cable is connected to the vehicle chassis whenever the adapter is used.

The adapter uses a Printed Circuit board inside keeping the capacitive and inductive load to a minimum.

Fig 2: Identifying Universal Adapter

When installing the Universal Adapter to the ECM (located below the windshield on the passenger side of the engine compartment), make sure the ignition is switched off.

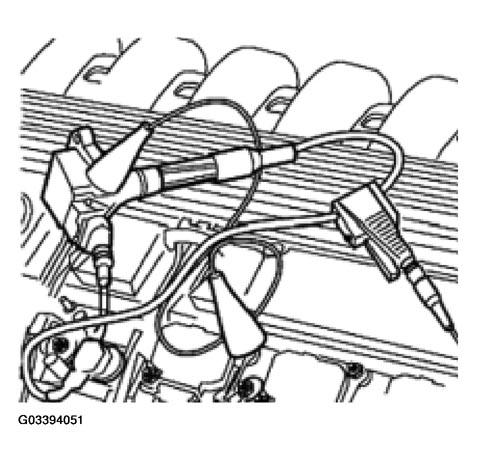

When Testing the Secondary Ignition System, use the High Tension clip of the DIS. Refer to the HELP button for additional (on screen) connections.

CAUTION: Observe Safety Precautions, High Voltage is Present with the Engine Running.

Fig 3: Testing Secondary Ignition System

The secondary ignition cables, connectors and sockets can be replaced separately.

New connectors can be "crimped" on using Special Tool #12 1 081. This tool provides a two stage crimp, crimping the core conductor and the insulator.

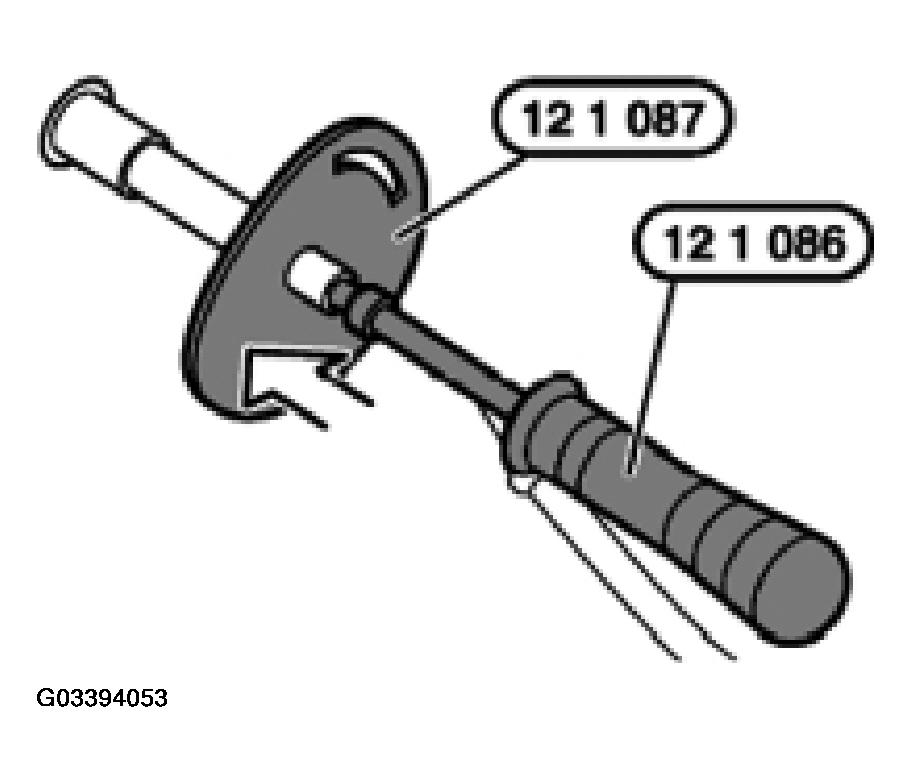

The connector with ignition cable should be installed into the Resistive Adapter Boot with Special Tools #12 1 087 and #12 1 086 to ensure the connector properly "seats".

Fig 4: Identifying Special Tools

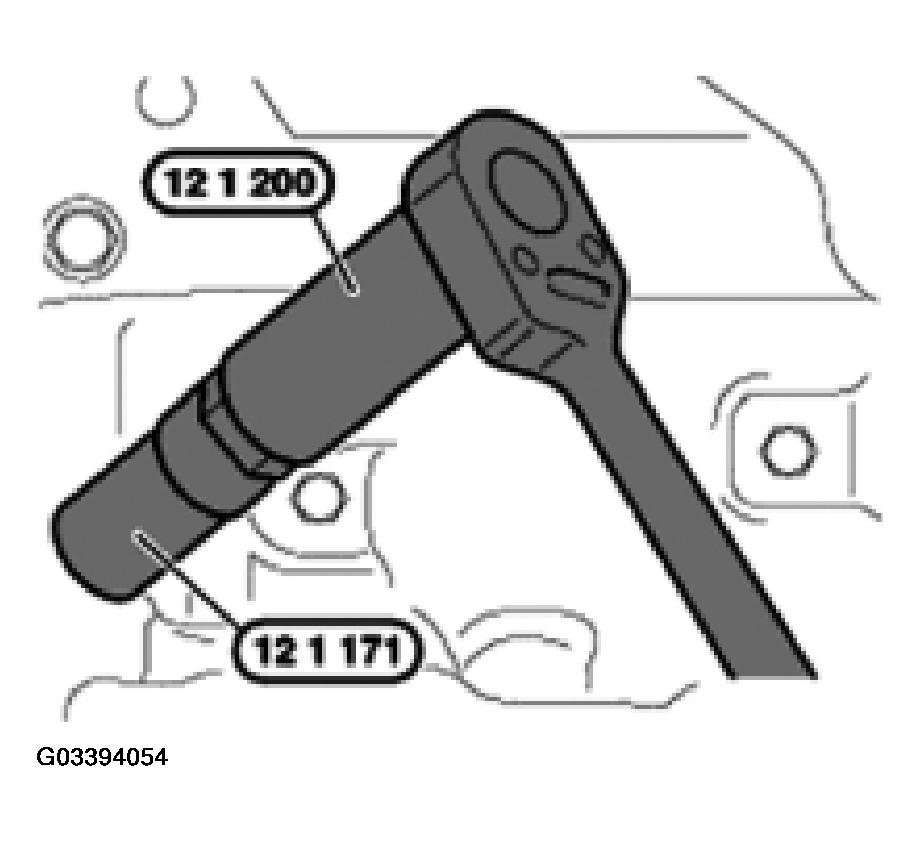

The Spark Plugs should be properly installed and torqued using the following Special Tools:

12 1 200 Torque Adapter (prevents over tightening)
12 1 171 Spark Plug Socket

Fig 5: Identifying Torque Adapter

NOTE: NEVER USE AIR TOOLS FOR REMOVAL OR INSTALLATION!
