System Components: INPUTS - PROCESSING - OUTPUTS

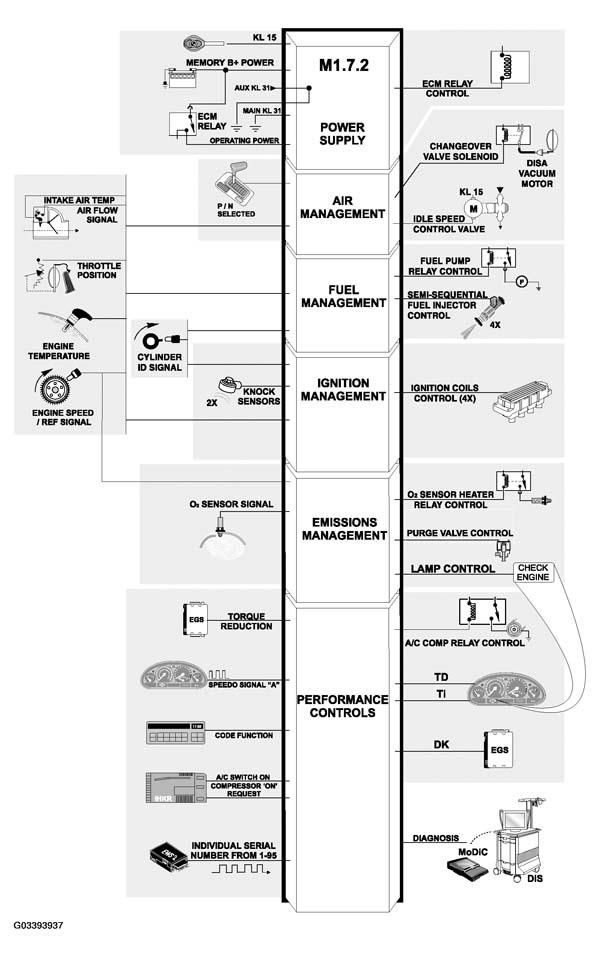

Fig 1: System Components: Inputs - Processing - Outputs

G03393937
