Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

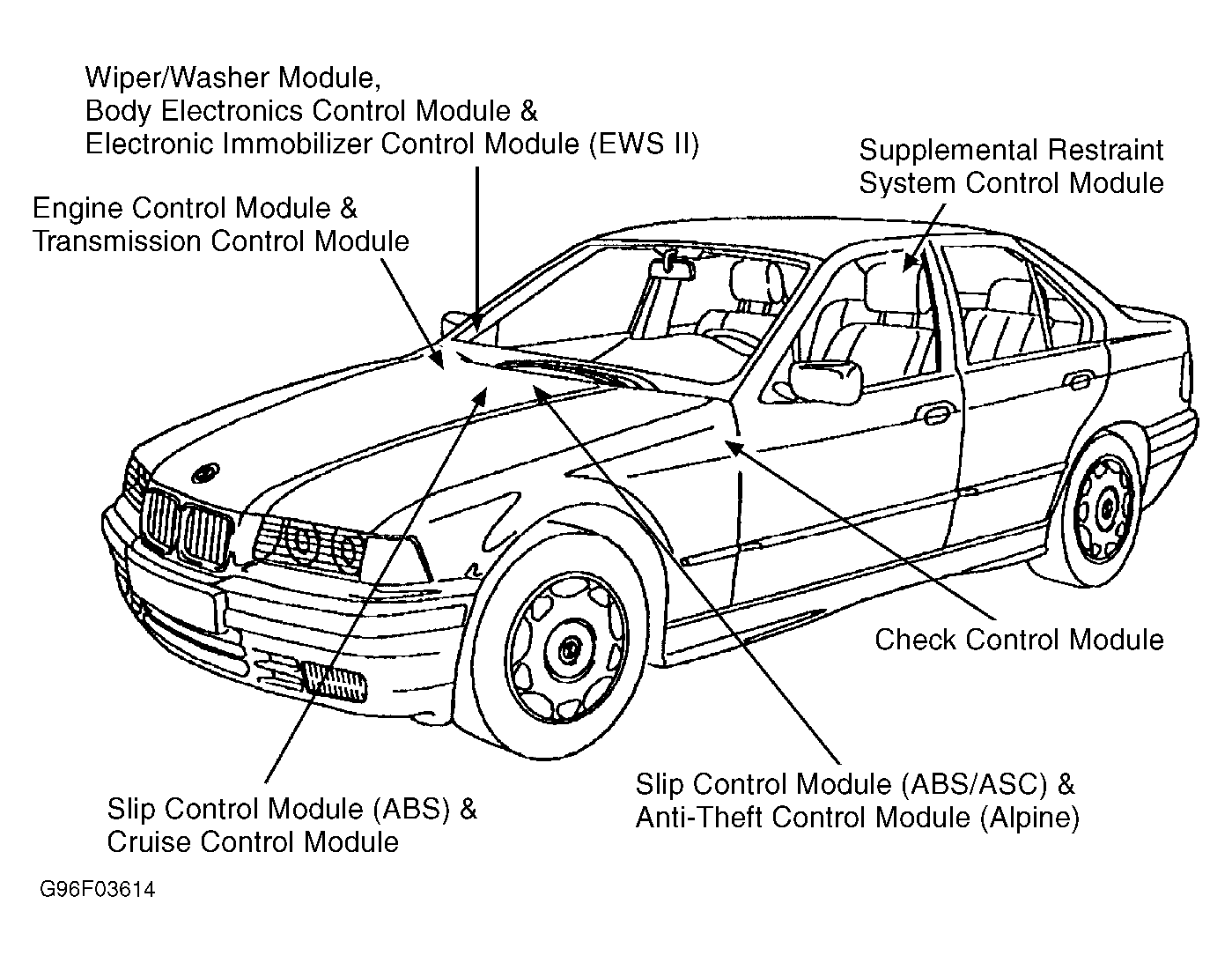

| Anti-Theft Control Module (Alpine) | Under right side of dash, behind glove compartment. See Figure . |
| Body Electronics Control Module | Behind glove compartment. See Figure . |
| Check Control Module | Under left side of dash. See Figure . |
| Chime Module | Below left side of dash. |

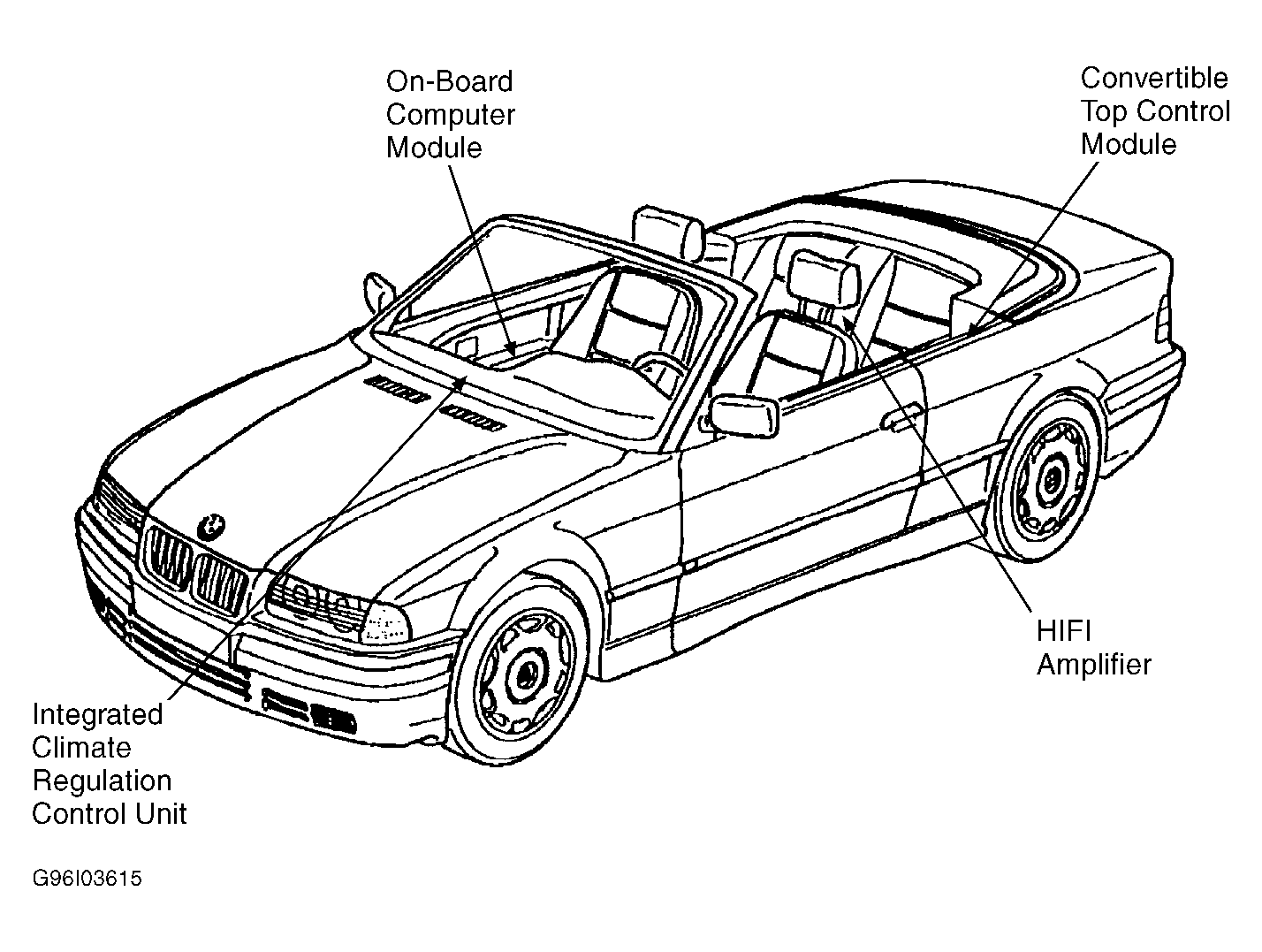

| Convertible Top Control Module | On lower left C-pillar, behind side panel. See Figure . |

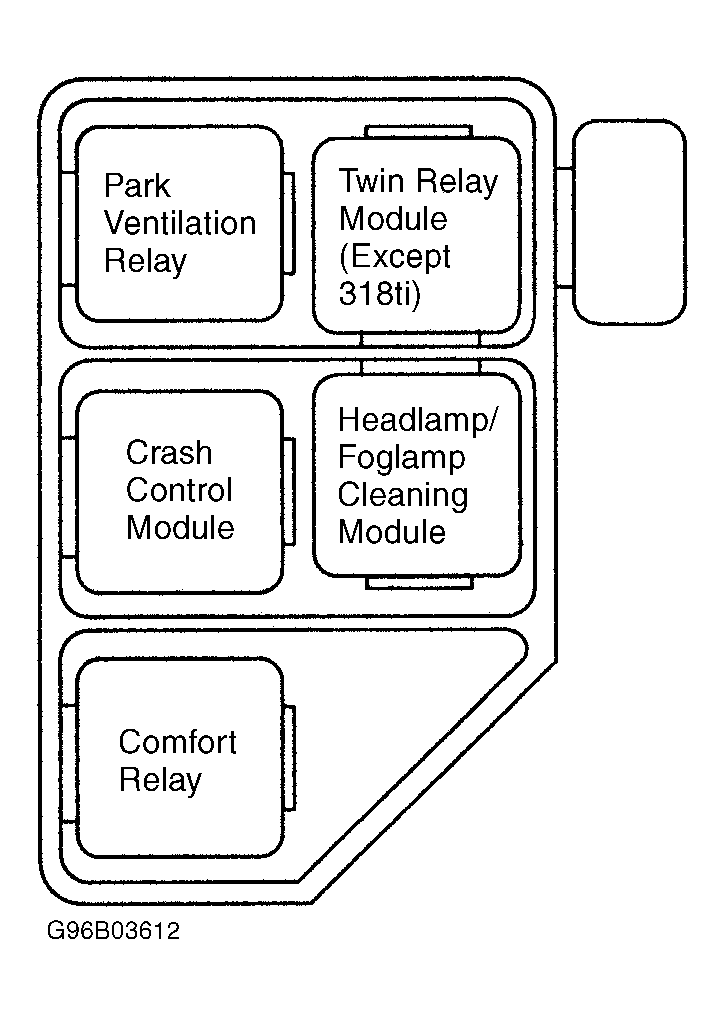

| Crash Control Module | On relay panel, under left side of dash. See Figure . |
| Cruise Control Module | Under right side of dash, behind glove compartment. See Figure . |
| Electronic Immobilizer Control Module (EWS II) | Under right side of dash, behind glove compartment. See Figure . |
| Engine Control Module | Right rear corner of engine compartment. See Figure . |
| Headlamp/Foglamp Cleaning Module | On relay panel, under left side of dash. See Figure . |
| Integrated Climate Regulation Control Unit | Center console. See Figure . |
| On-Board Computer Module | Center console. See Figure . |
| Servotroni Control Module | Behind glove compartment. |
| Slip Control Module (ABS) | Under right side of dash, behind glove compartment. See Figure . |
| Slip Control Module (ABS/ASC) | Under right side of dash, behind glove compartment. See Figure . |

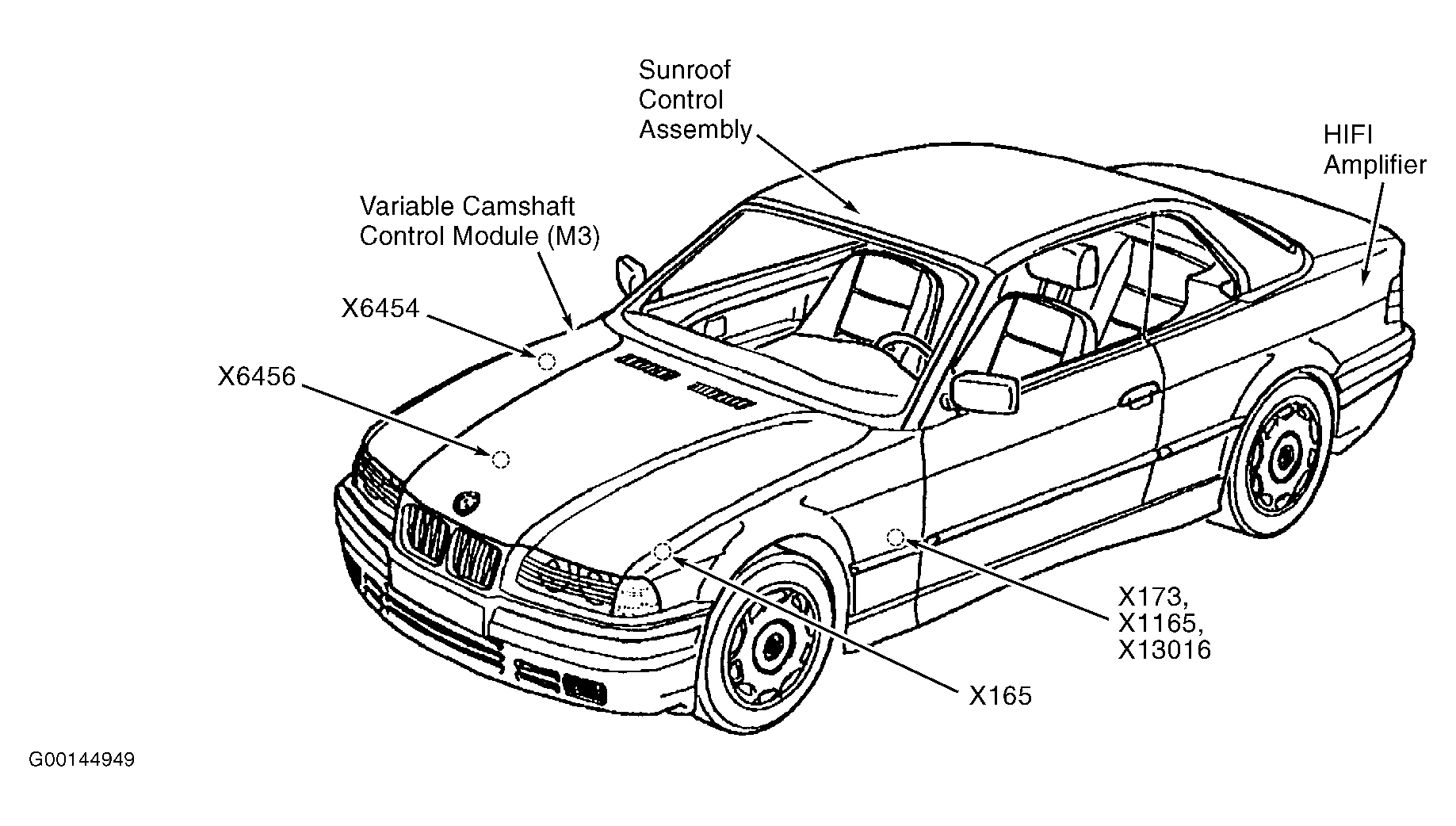

| Sunroof Control Assembly | Under roof center panel. See Figure . |
| Supplemental Restraint System Control Module | Under right rear seat. See Figure . |
| Transmission Control Module | Right rear corner of engine compartment. See Figure . |
| Twin Relay Module (Except 318ti) | On relay panel, under left side of dash. See Figure . |
| Wiper/Washer Module | Behind glove compartment. See Figure . |
| Wiper/Washer Module (Low II) | Left footwell. |
