Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

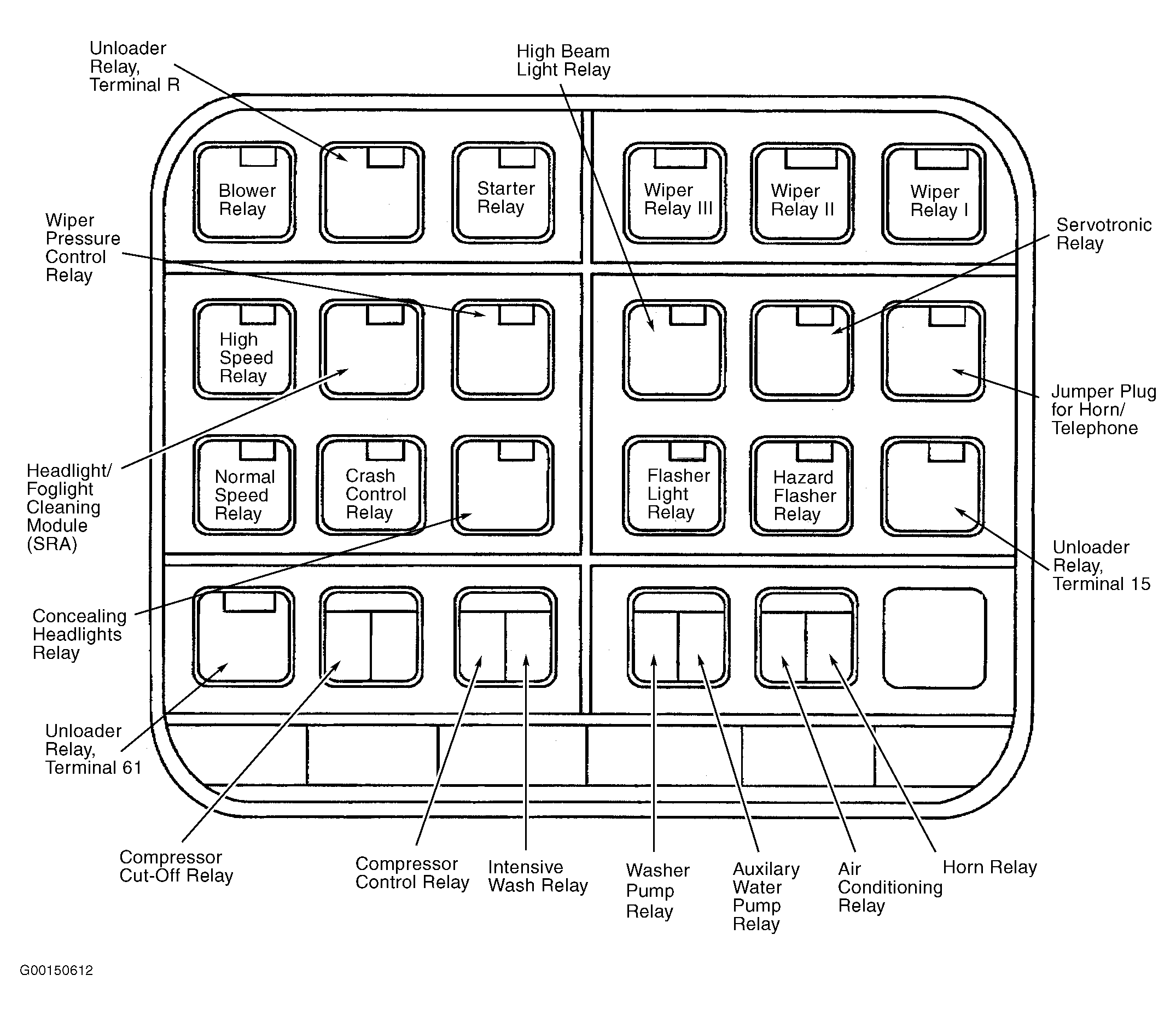

Fig 1: Front Power Distribution Box

Courtesy of BMW OF NORTH AMERICA, INC.

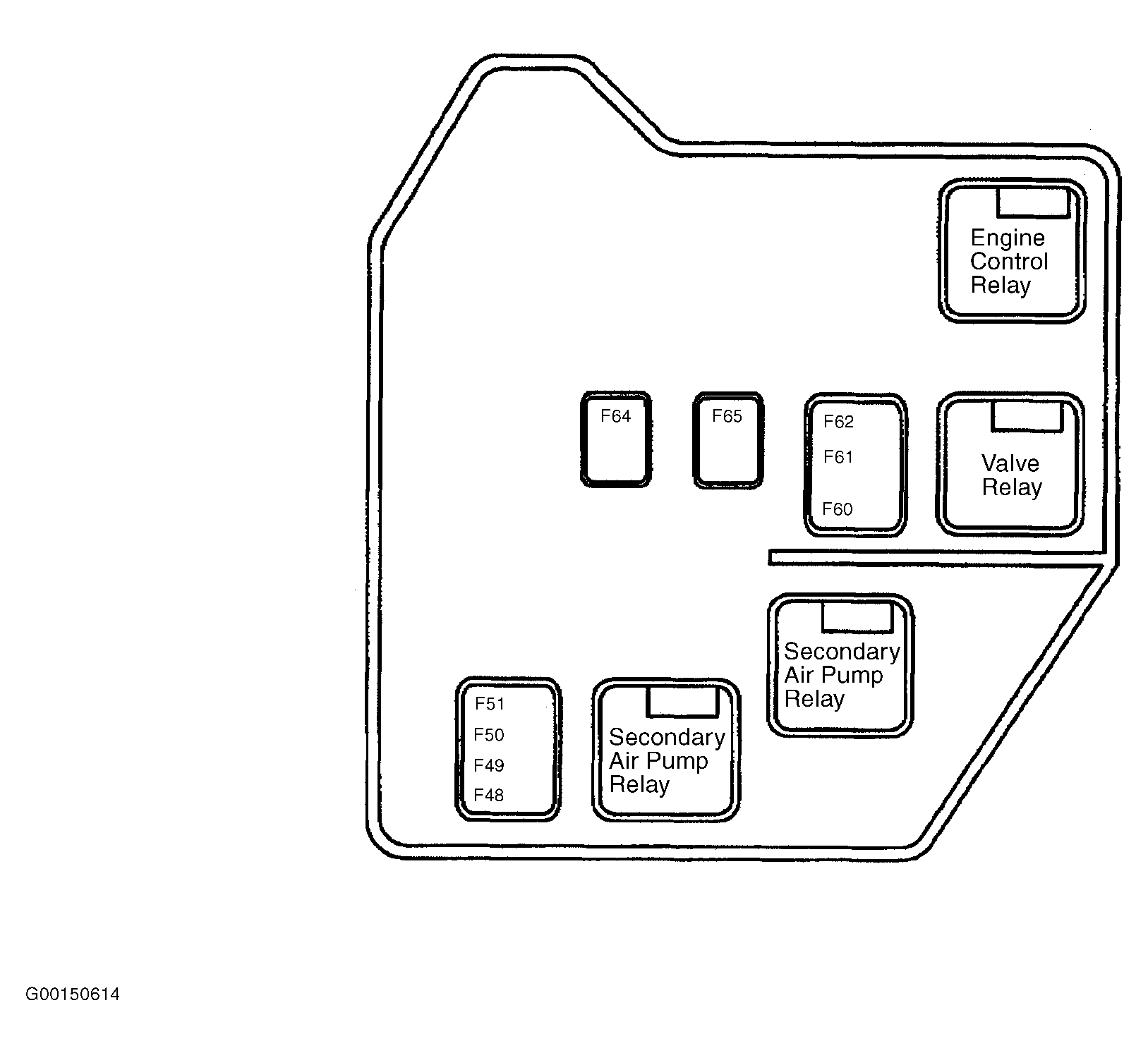

Fig 2: Rear Power Distribution Box

Courtesy of BMW OF NORTH AMERICA, INC.

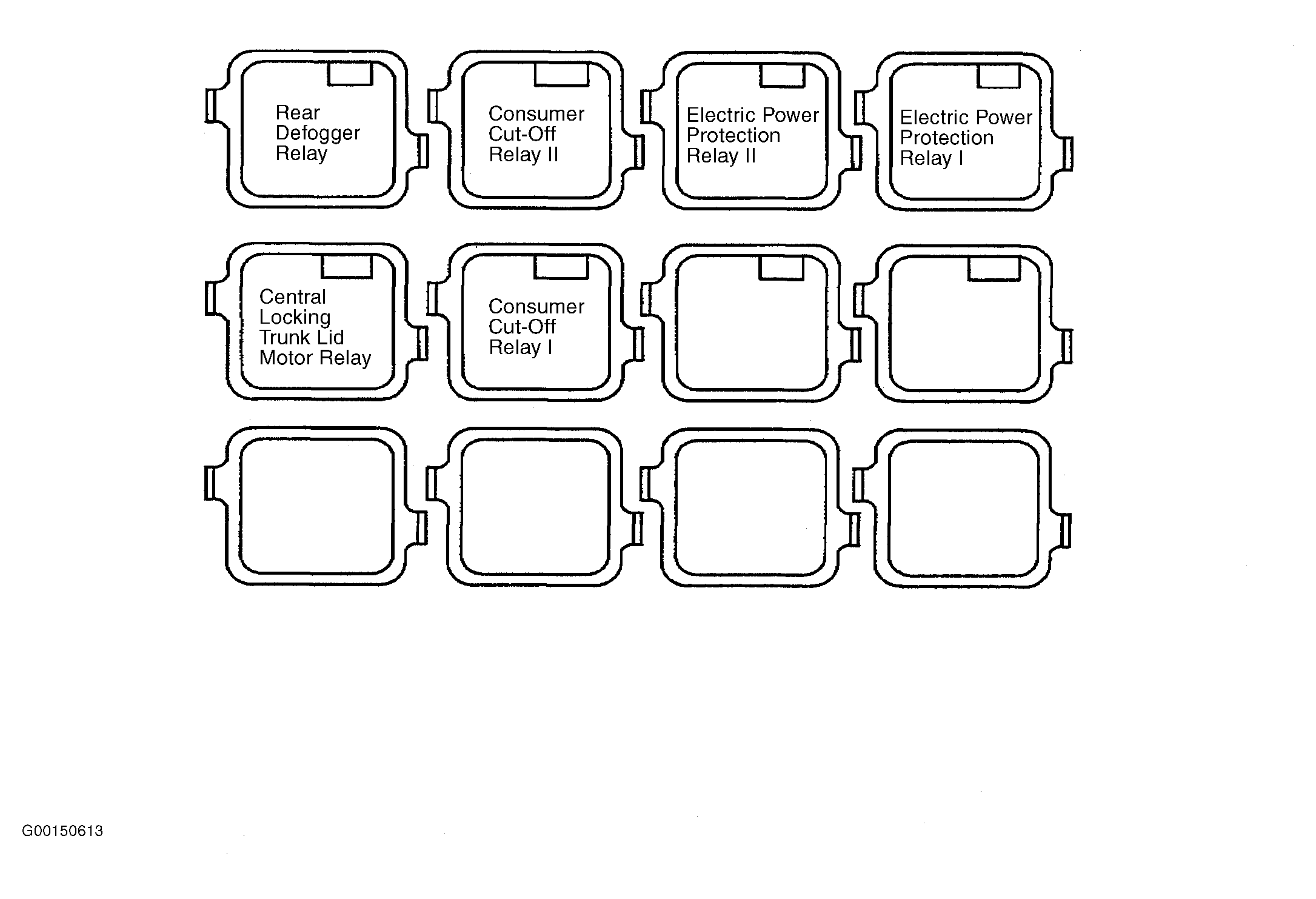

Fig 3: Auxiliary Relay Box

Courtesy of BMW OF NORTH AMERICA, INC.
