Ignition Coil Resistance

Measure primary coil resistance between terminal No. 1 and terminal No. 15. See Fig 1. Secondary coil resistance cannot be measured. See IGNITION COIL RESISTANCE  table.

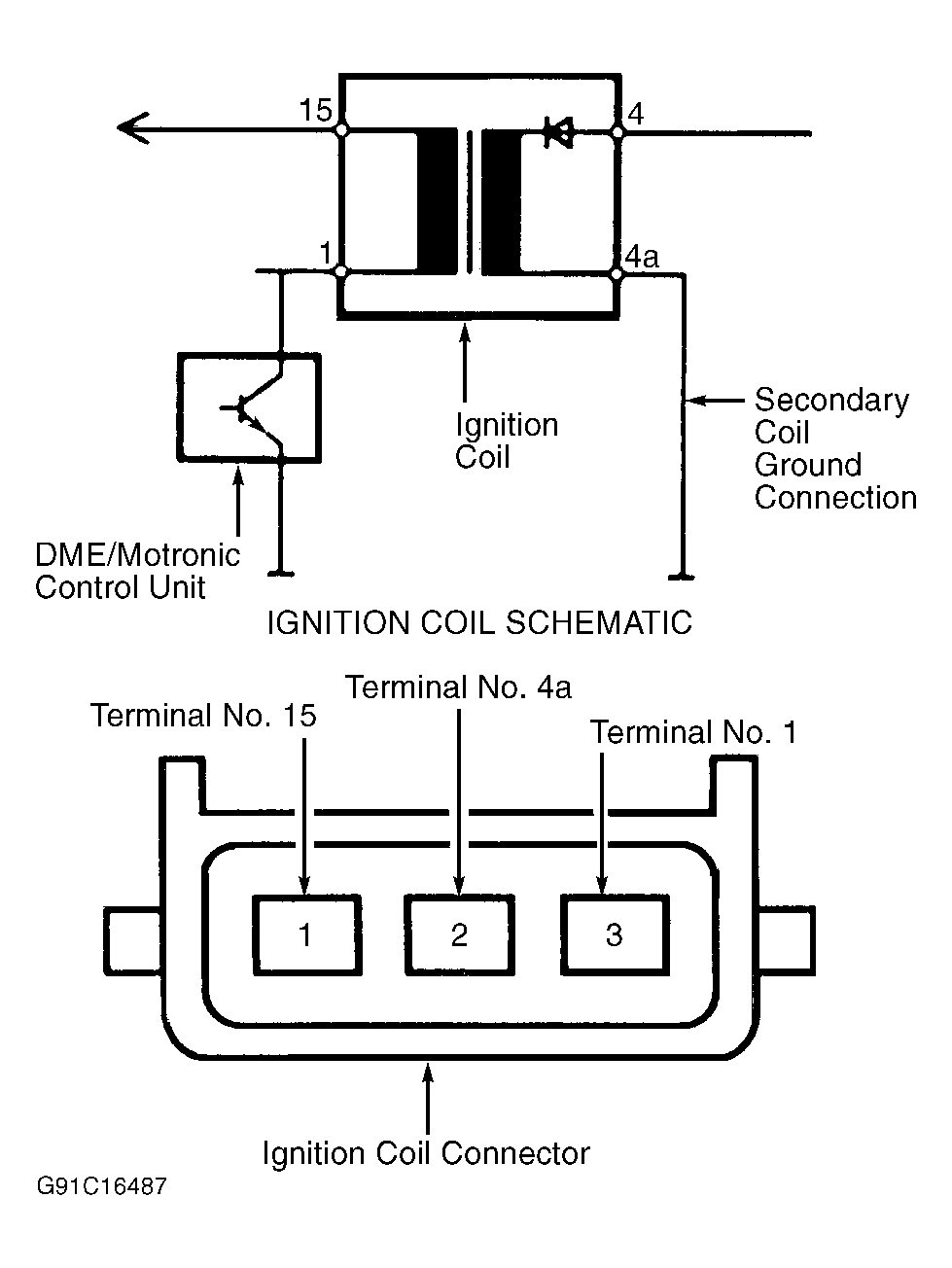

Fig 1: DIS Ignition Coil Schematic & Terminal Identification
