Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

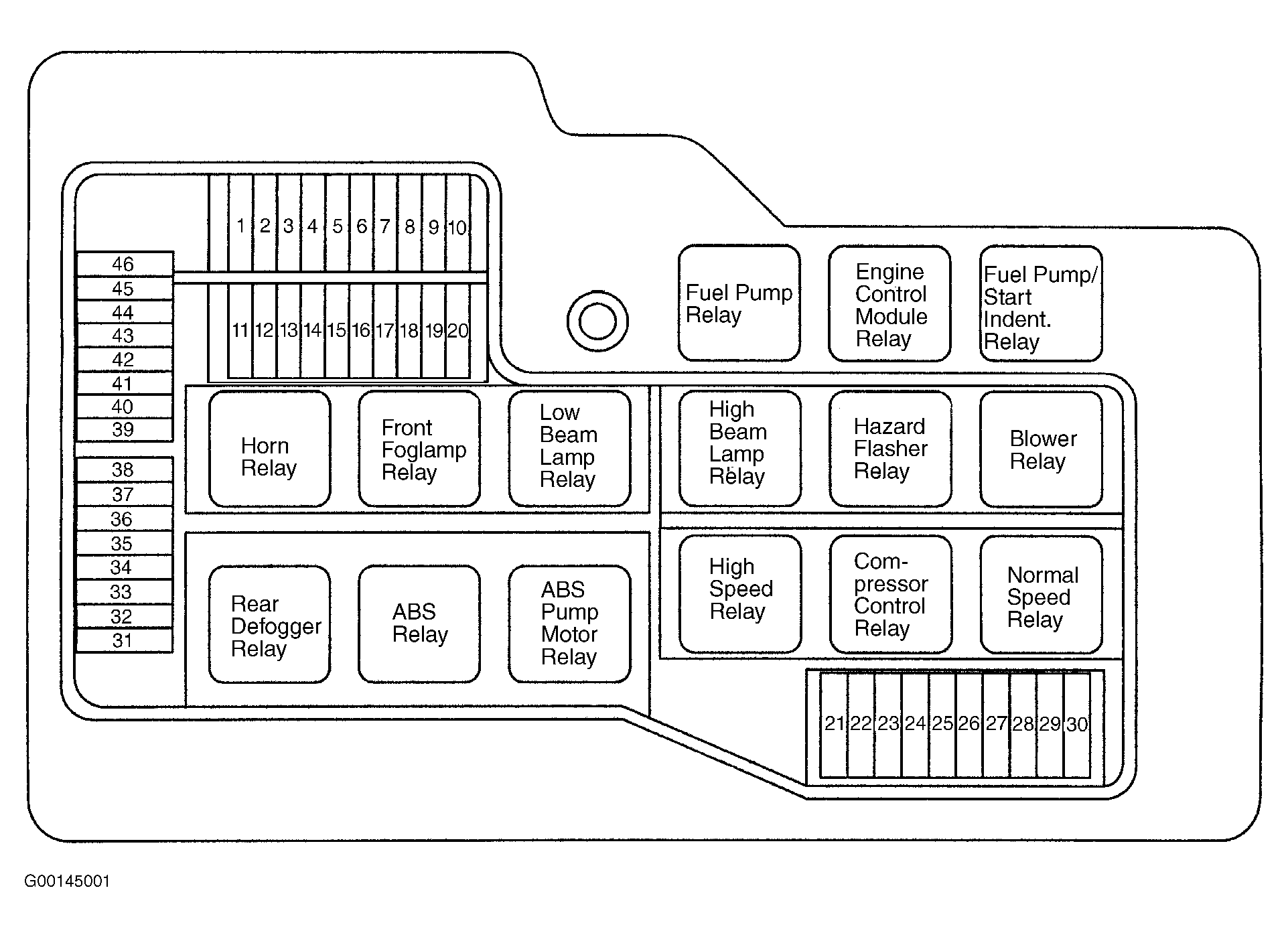

Fig 1: Power Distribution Box
G00145001

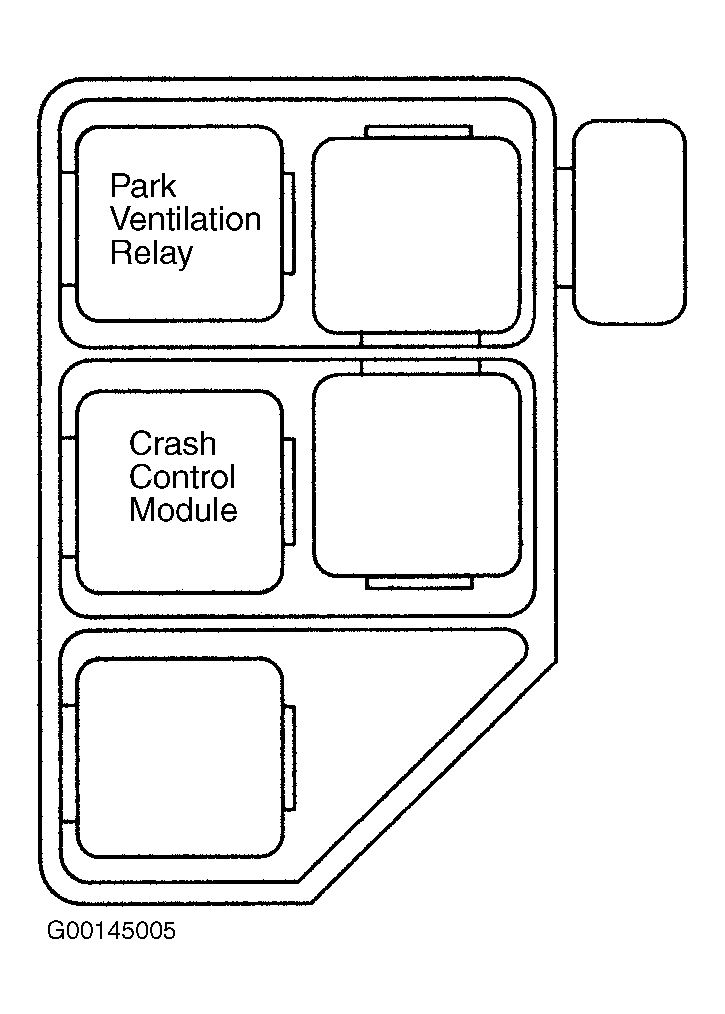

Fig 2: Relay Panel
G00145005

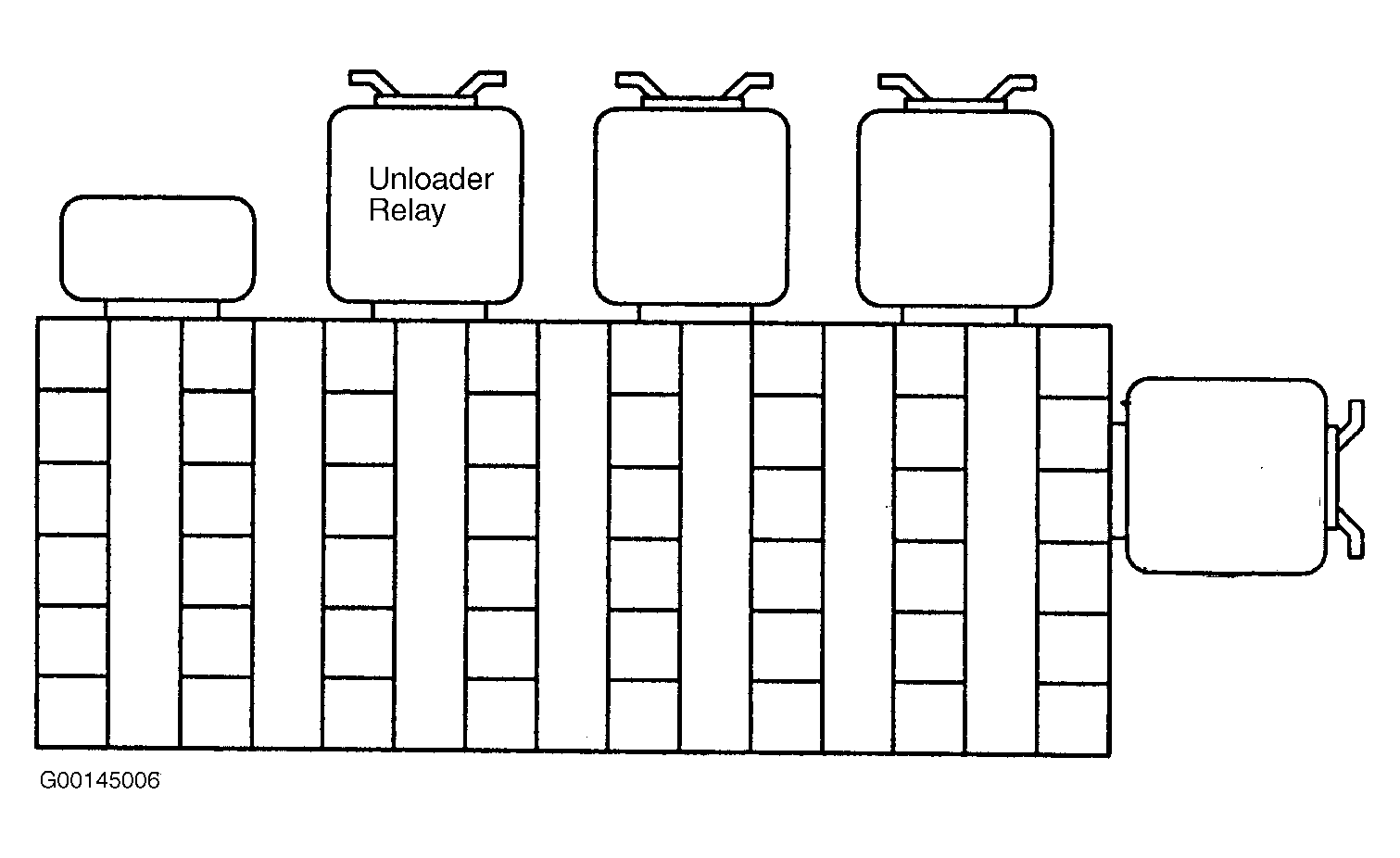

Fig 3: Splice Panel
G00145006

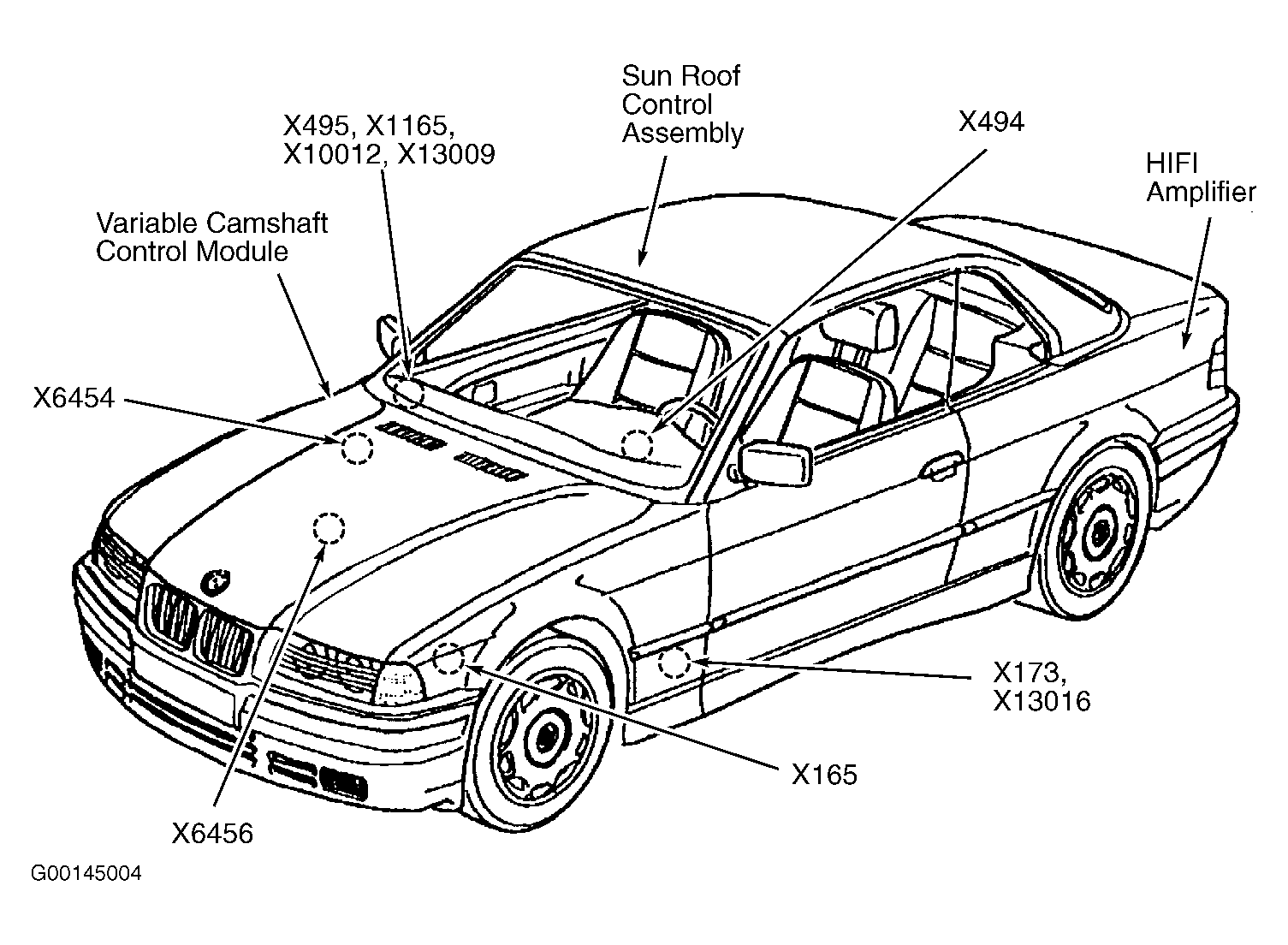

Fig 4: Vehicle Overview
G00145004
