Tools And Equipment: Notes

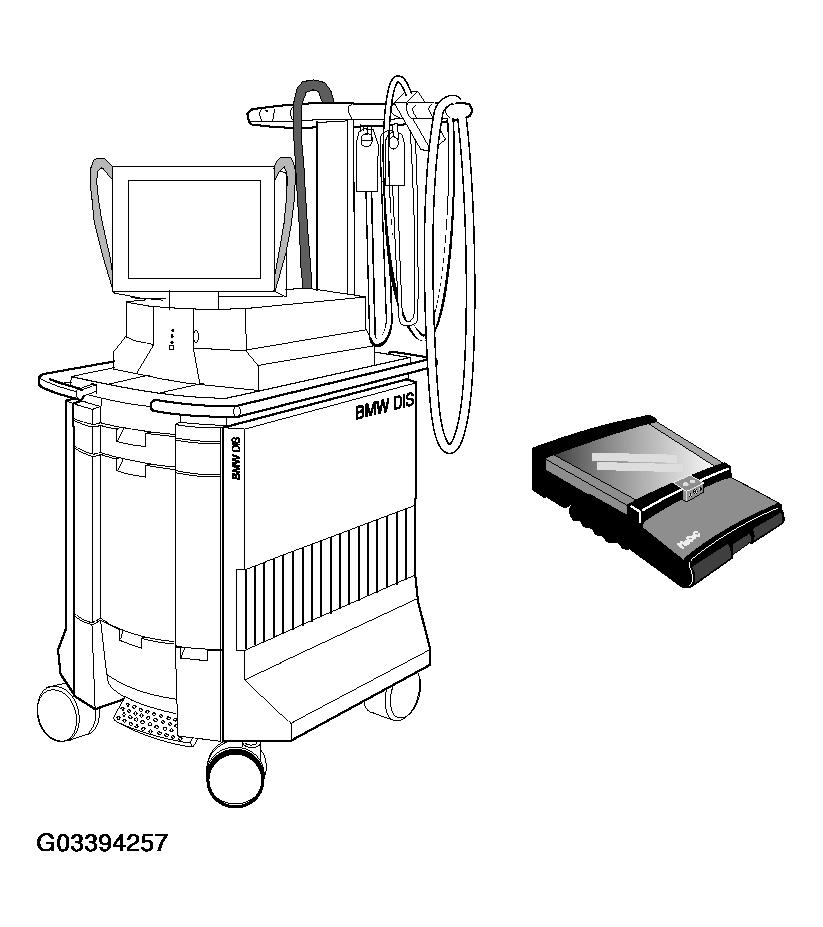

The DIS/MoDIC as well as a reputable hand held multimeter can be used when testing inputs/components.
It is best to make the checks at the ECM connection, this method includes testing the wiring harness.

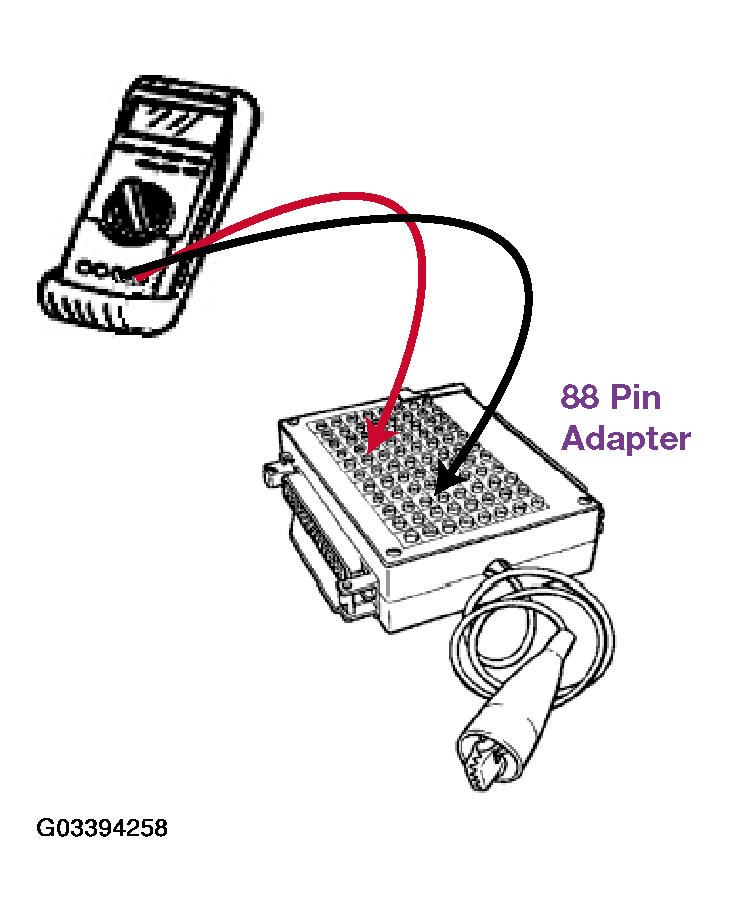

The correct Universal Adapter for the MS41.x application should be used (#88 88 6 614 410). This will ensure the pin connectors and the harness will not be damaged.
The interior of this Universal Adapter is shielded, therefore it is vital that the ground cable is connected to the vehicle chassis whenever the adapter is used.
The adapter uses a Printed Circuit board inside keeping the capacitive and inductive load to a minimum.
When installing the Universal Adapter to the ECM (located below the windshield on the passenger side of the engine compartment), make sure the ignition is switched off.

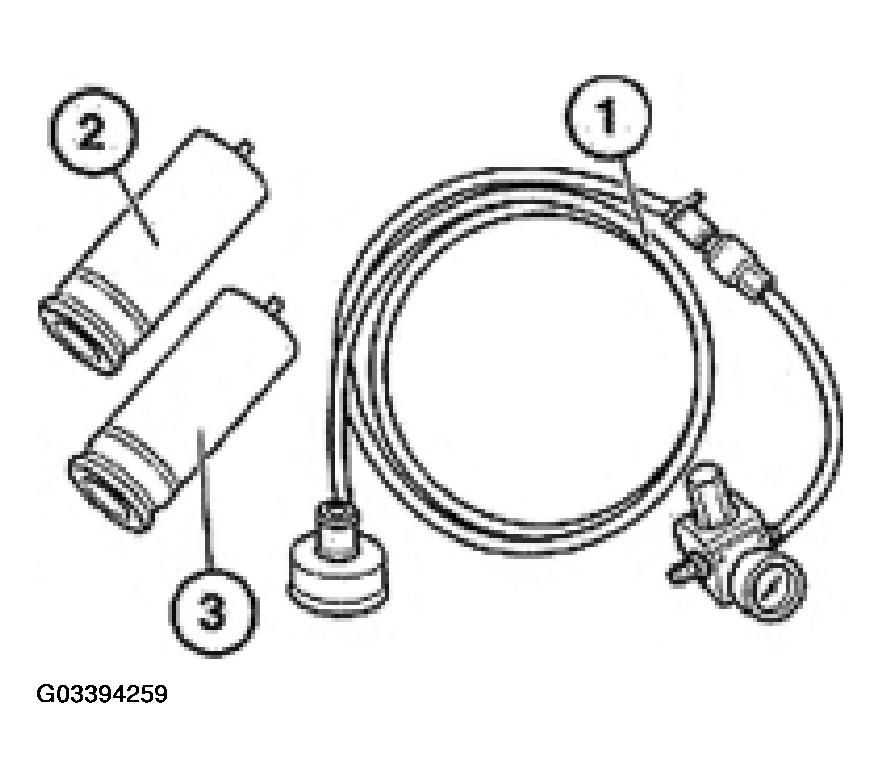

When checking the fuel tank and ventilation system for leak-tightness use Special Tool Set #90 88 6 161 170 which includes all of the pieces shown.
- Pressure Control Valve
- & 3) . Quick Coupling Adapters
This set is used in conjunction with shop supplied compressed air and the DISplus Multimeter function for reading the pressure bleed off.
