Component Locations

COMPONENT LOCATIONS

Component Location
Power Window Control Module Behind Glove Compartment
Power Window Motor Behind Appropriate Door Panel
Power Window Motor Control Module (1) Attached To Each Power Window Motor
Power Window Relay (2) In Relay Box Next To Steering Column
Power Window Switch On Center Console
(1) On 2-door models, each power window motor has a control module attached to it. These control modules are not to be confused with power window control module, located behind glove box.
(2) See Fig 1 .

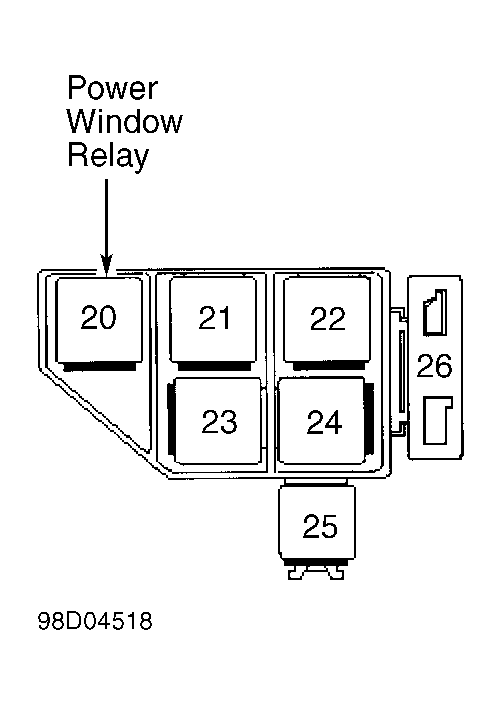

Fig 1: Identifying Power Window Relay
G98D04518Courtesy of BMW OF NORTH AMERICA, INC.
