Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location
ASC Diode In front power distribution box.
Auxiliary Fuse Box Left side of dash.

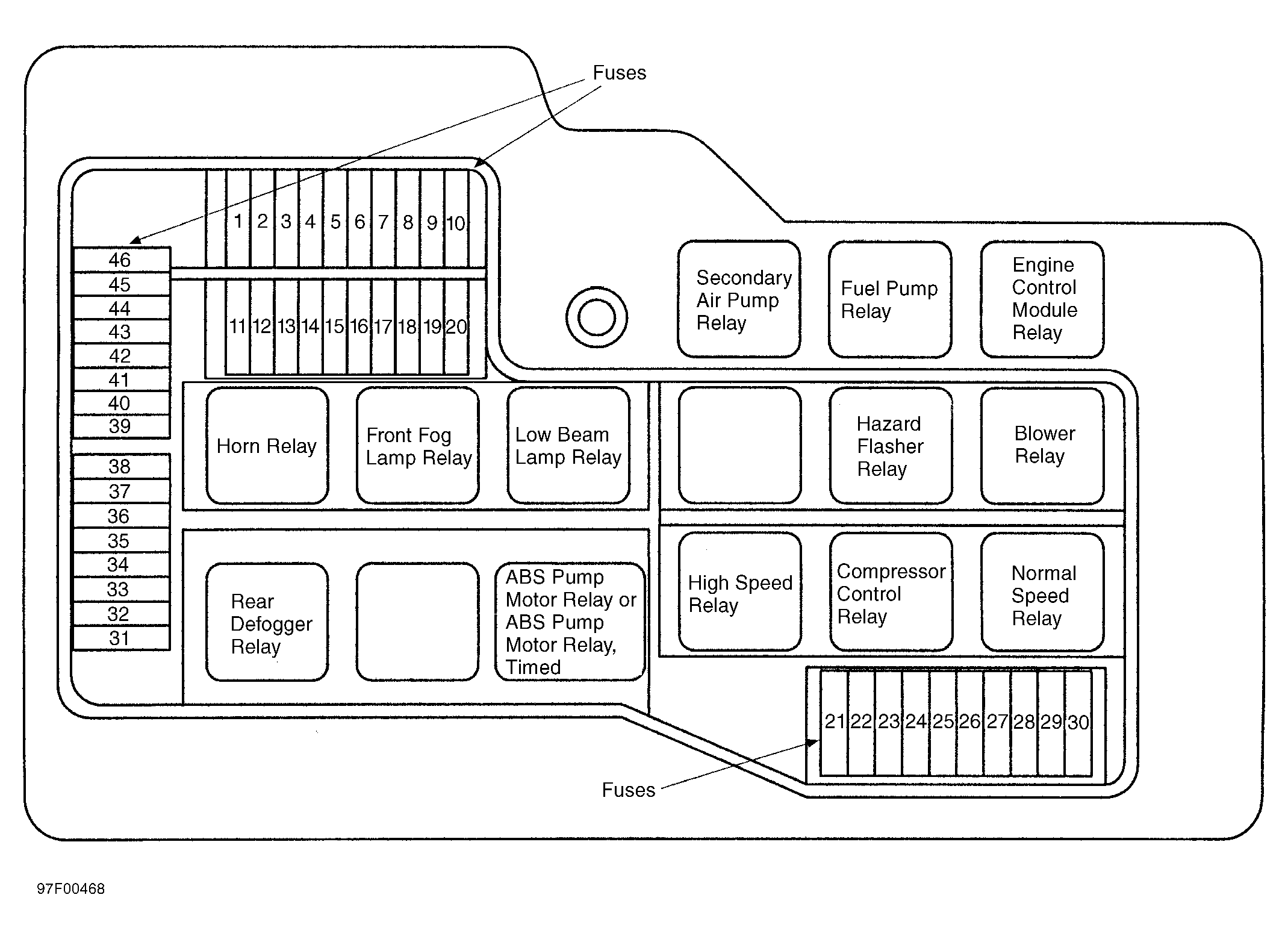

Front Power Distribution Box In left rear corner of engine compartment. See Figure .
Relay Panel Under left side of dash. See Figure .
Splice Panel (2) Under respective sides of dash.
