Tools And Equipment

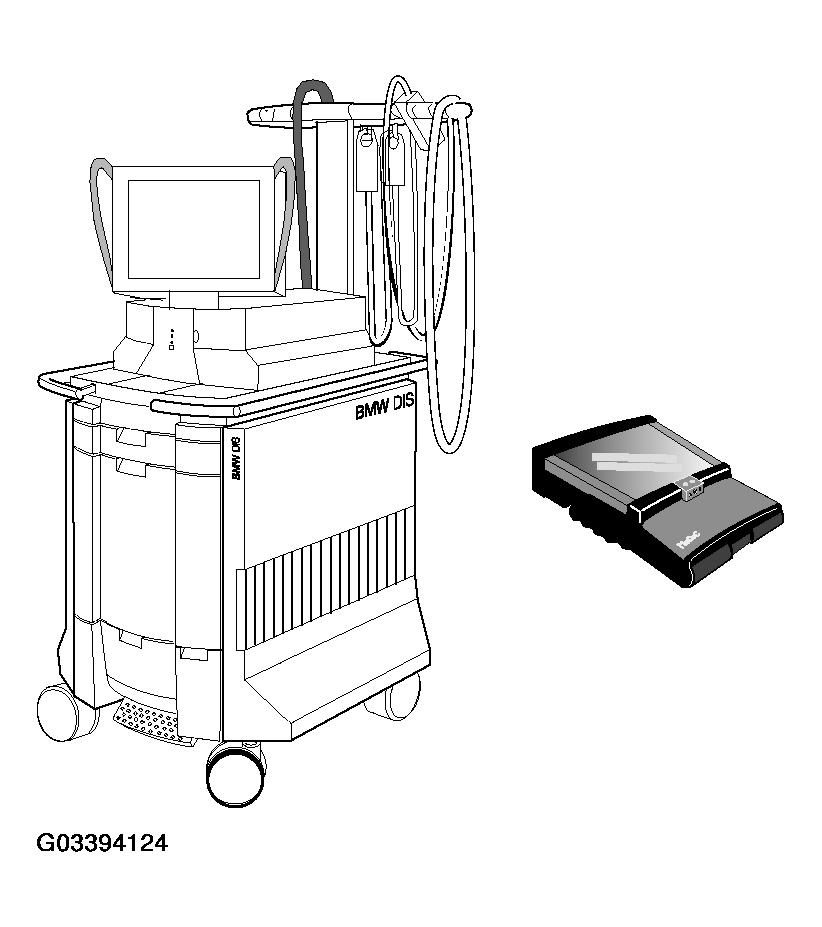

The DIS/MoDIC as well as a reputable hand held multimeter can be used when testing inputs/components.
It is best to make the checks at the ECM connection, this method includes testing the wiring harness.

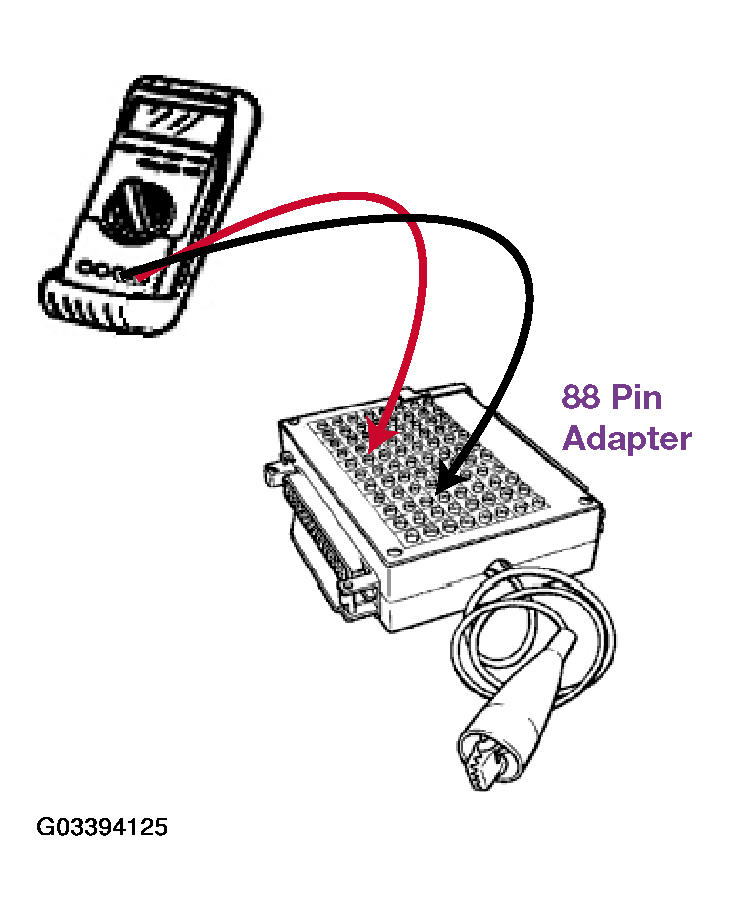

The correct Universal Adapter for the MS41.X application should be used (#88 88 6 614 410). This will ensure the pin connectors and the harness will not be damaged.
The interior of this Universal Adapter is shielded, therefore it is vital that the ground cable is connected to the vehicle chassis whenever the adapter is used.
The adapter uses a Printed Circuit board inside keeping the capacitive and inductive load to a minimum.
When installing the Universal Adapter to the ECM (E36 located below the windshield on the passenger side of the engine compartment, Z3/E39 in the Electronics Box), make sure the ignition is switched off.
The Slack Tube Manometer Test Tool (#99 00 0 001 410) should be used to troubleshoot crankcase ventilation valves.
